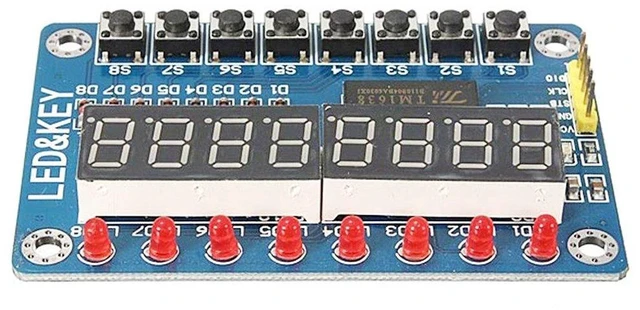

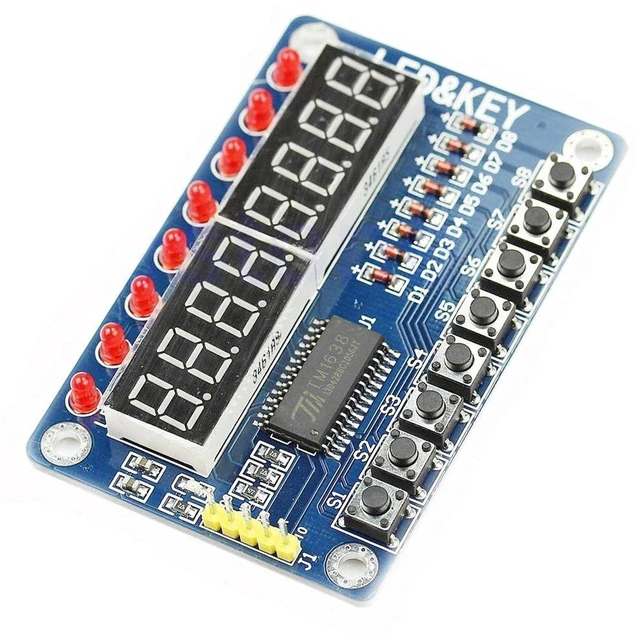

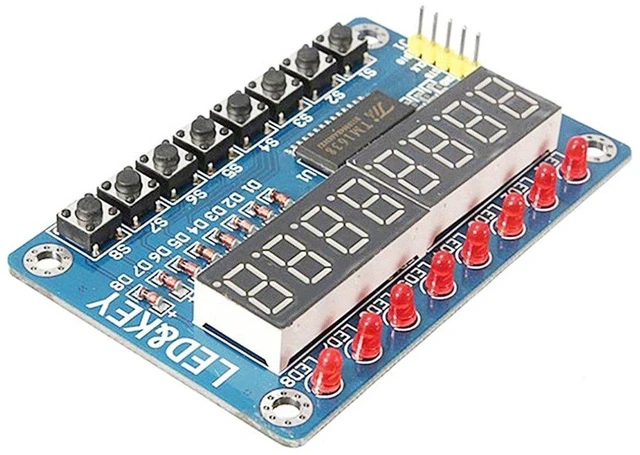

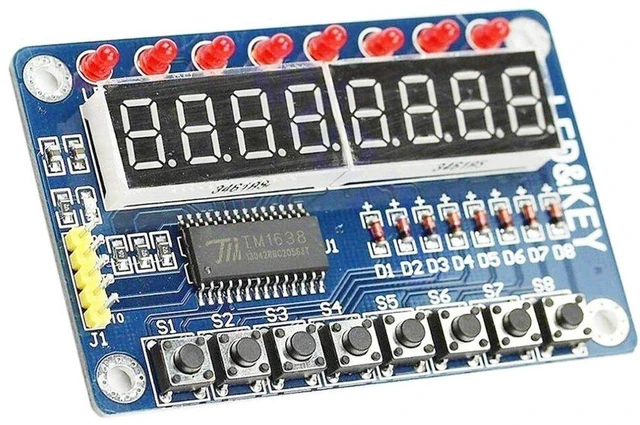

AJMRTC TM1638 8-Bit Digital LED Tube Display Module, 8-Digit 7-Segment Display Board with 8 LEDs and 8 Push Buttons, Serial Interface Driver Module for AVR Arduino STM32 ESP32 DIY
- 1. Integrated TM1638 dedicated display driver chip, simple serial communication control
- 2. Combines 8-digit 7-segment digital tube, 8 indicator LEDs and 8 push buttons on one board
- 3. Only 3 control signal pins required, saves MCU IO resources effectively
- 4. Adjustable display brightness via software programming for different viewing environments
- 5. Compact all-in-one module, convenient for data display and human input interaction
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
AJMRTC TM1638 integrated display module is built around the TM1638 LED drive IC. It integrates three functions: 8-bit common cathode 7-segment digital tube for numerical display, 8 independent status indicator LEDs, and 8 touch-style push buttons for key input. It communicates with the main controller through a 3-wire serial interface, occupying far fewer IO ports than parallel display schemes. You can adjust the display brightness programmatically and read key scanning signals easily. It works perfectly with AVR, Arduino, STM32, ESP32 and other mainstream microcontrollers. It is widely used for digital counters, parameter setting panels, industrial data readout, electronic clocks, score counters and student electronic experiment projects.
Specifications
- Model: TM1638 Display Module
- Driver IC: TM1638
- Digital Tube: 8 Bits 7-Segment
- Onboard LED: 8 Pcs Indicator LED
- Key Buttons: 8 Pcs Push Buttons
- Communication: 3-Wire Serial Interface
- Working Voltage: DC 5V
- Feature: Brightness Adjustable, IO Saving
- Application: Data Display, Parameter Setting, Electronic DIY, AVR MCU Project
