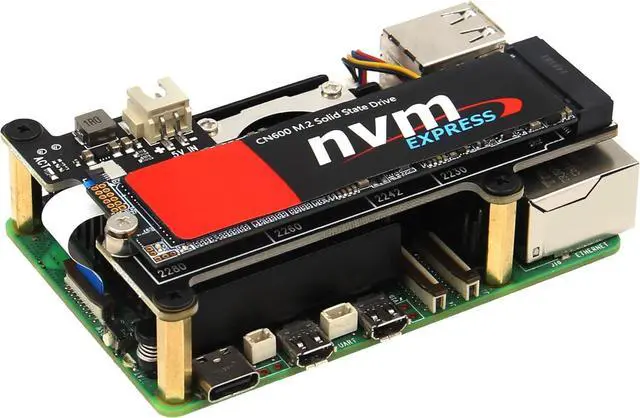

X1001 PCIe to M.2 HAT Key-M NVMe SSD PIP PCIe Peripheral Board for Raspberry Pi 5 Support M.2 2230/2242/2260/2280 SSD

Compatibility: Pi 5 PCIe M. 2 HAT only compatible with Raspberry Pi 5 2GB/4GB/8GB/16GB SBC (NOT include Raspberry Pi 5) NVMe base for Raspberry Pi 5
Model: X1001 the matching case is P579M2 Key-M NVMe

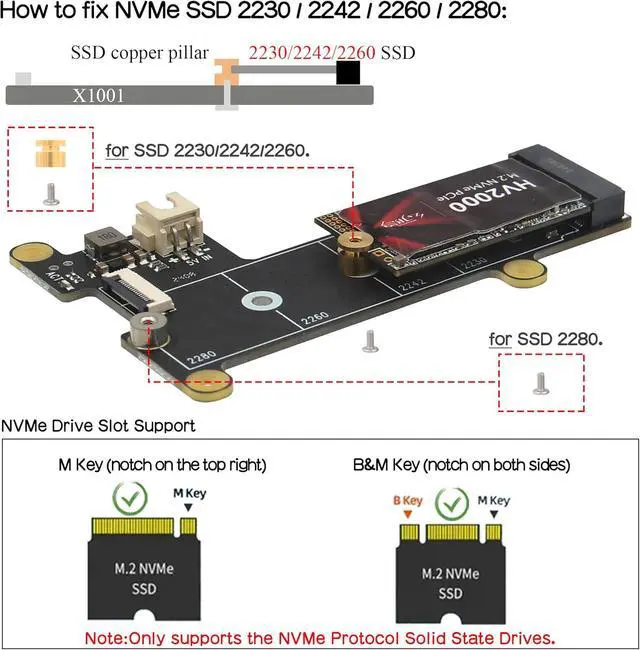

SSD Supported: Support M. 2 KEY-M NVMe SSD 2230/2242/2260/2280 length installation; Comes with SSD copper pillar for 2230/2242/2260 SSD installationUser
Manual and FAQ: Google Geekworm WiKi and search X1001 and its FAQ; Refer to the FAQ to do troubleshoot step by step if can't boot/recognize from NVMe SSD

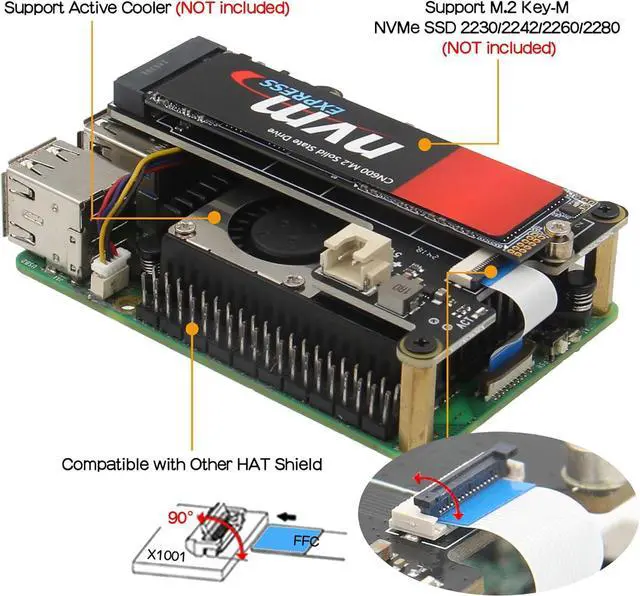

Designed as a basic PCIe expansion board for the Raspberry Pi 5 the X1001 features limited standalone hardware functionality and requires proper OS configuration stable FFC cable connection and compatibility between firmware and SSDs for reliable operation.
Power Supply Requirements: The X1001 is powered directly through the PCIe FFC ribbon cable. For stable operation use the Raspberry Pi 5 PD 27W USB-C Power Supply ( 5.1V /5A).

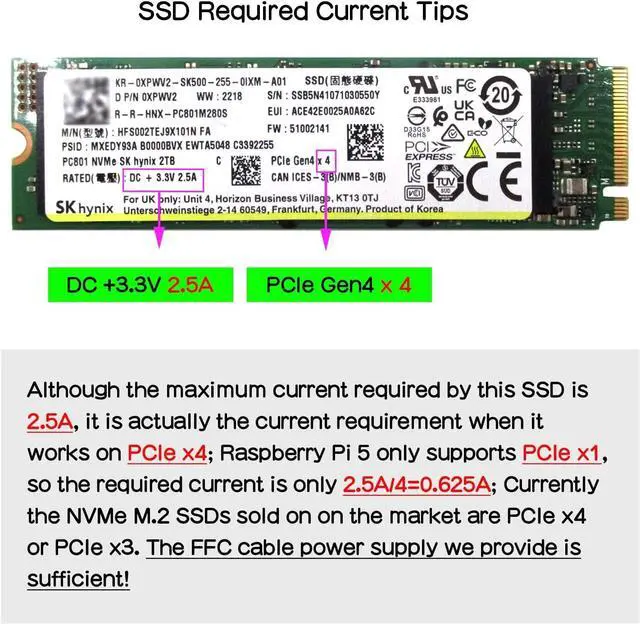

Note: Standard phone chargers may not provide sufficient power for NVMe SSDs which can result in SSD instability data corruption or drive failure.

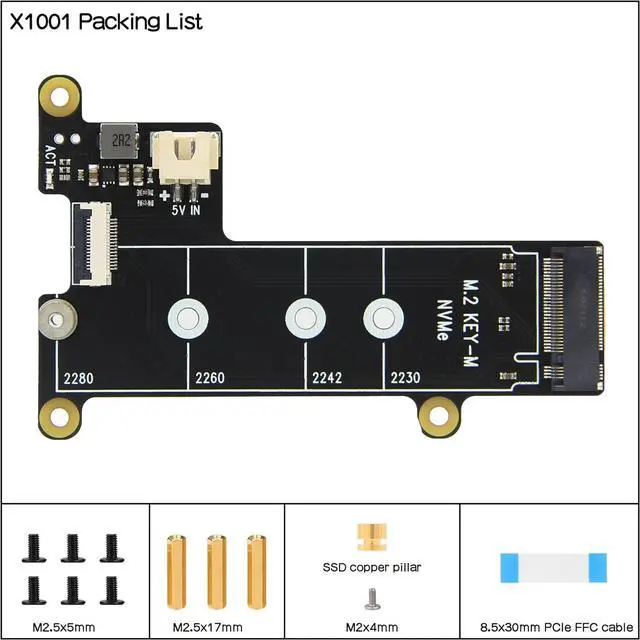

Package Includes: 1 × X1001 Expansion Board and 1 × Accessory Pack. Raspberry Pi 5 NVMe SSD and power adapter are not included.
