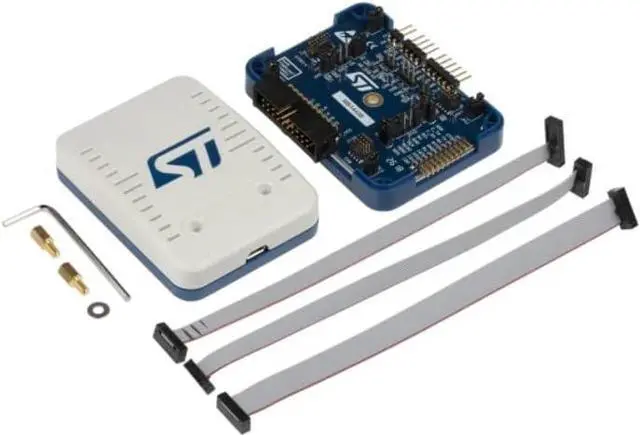

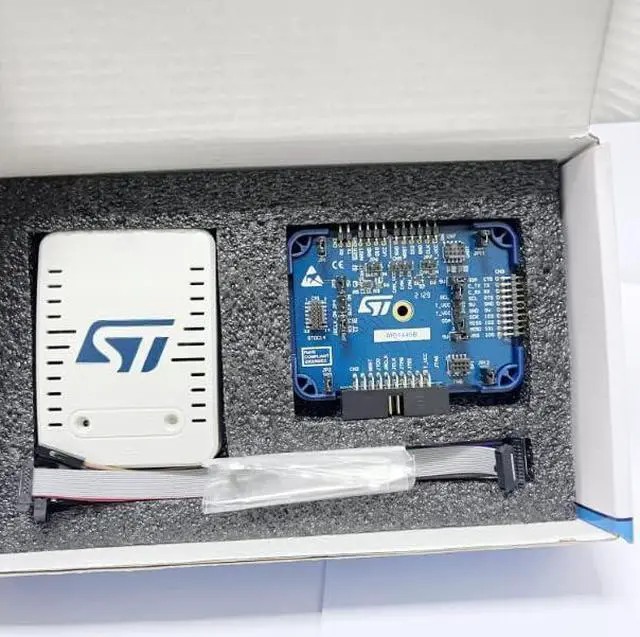

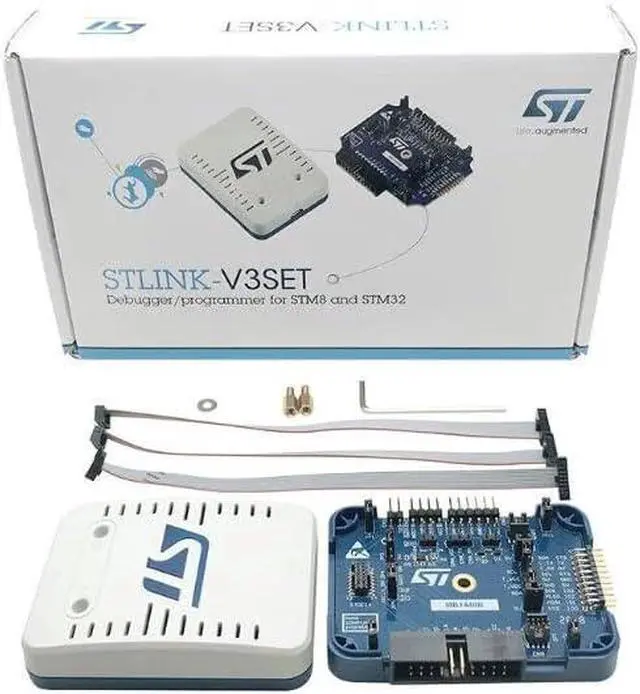

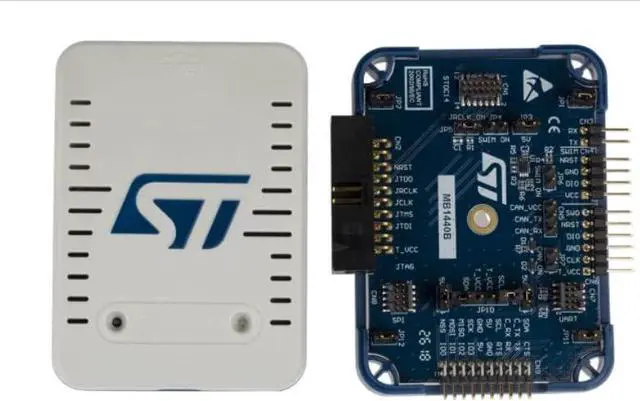

STLINK-V3SET Hardware Debuggers STLINK-V3 Modular in-Circuit debugger and Programmer for STM32/STM8
- STLINK-V3SET Hardware Debuggers STLINK-V3 Modular in-Circuit debugger and Programmer for STM32/STM8
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Tool Is For Evaluation Of: STM8
STM32Core: ARM Cortex MType Debugger Programmer (In-Circuit/In-System)Stand-alone probe with modular extensions /Self-powered/Direct firmware update support (DFU) through a USB connector (Micro-B)/USB 2.0 high-speed compatible interface/JTAG / serial wire debugging (SWD) specific features: 3 to 3.6 V application voltage support and 5 V tolerant inputs Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm pitch) JTAG communication support SWD and serial wire viewer (SWV) communication supportSWIM specific features (only available with adapter board
MB1440): 1.65 to 5.5 V application voltage support SWIM header ( 2.54 mm pitch) SWIM low-speed and high-speed modes supportVirtual
COM port (VCP) specific features: 3 to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs VCP frequency up to 15 MHz Available on STDC14 debug connector (not available on MIPI10)
STM32Core: ARM Cortex MType Debugger Programmer (In-Circuit/In-System)Stand-alone probe with modular extensions /Self-powered/Direct firmware update support (DFU) through a USB connector (Micro-B)/USB 2.0 high-speed compatible interface/JTAG / serial wire debugging (SWD) specific features: 3 to 3.6 V application voltage support and 5 V tolerant inputs Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm pitch) JTAG communication support SWD and serial wire viewer (SWV) communication supportSWIM specific features (only available with adapter board
MB1440): 1.65 to 5.5 V application voltage support SWIM header ( 2.54 mm pitch) SWIM low-speed and high-speed modes supportVirtual
COM port (VCP) specific features: 3 to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs VCP frequency up to 15 MHz Available on STDC14 debug connector (not available on MIPI10)
