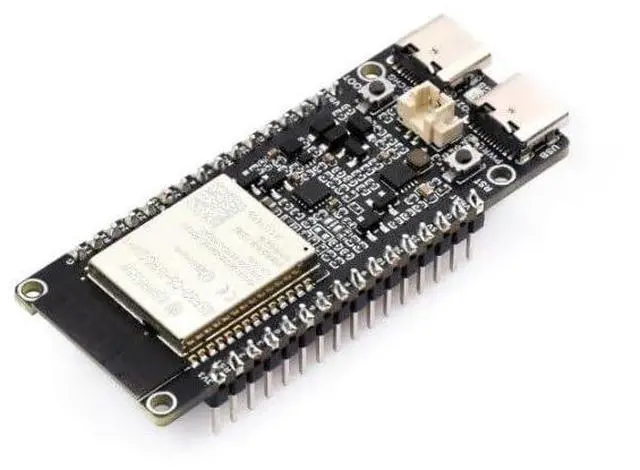

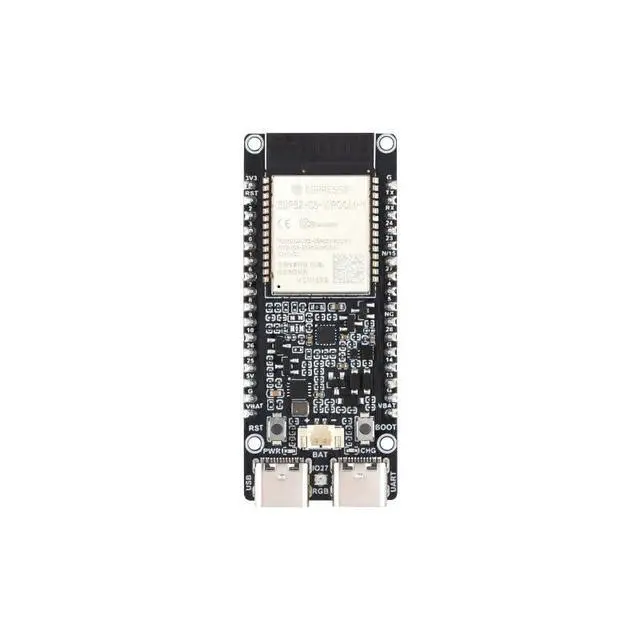

Main image of 2pcs ESP32-C5 Dual-Band Wi-Fi 6 Development Board, 240MHz RISC-V Processor, ESP32-C5-WROOM-1 Series Module, Multi-Protocol RISC-V MCU 8MB PSRAM, 16MB Flash, with Pre-soldered headers Built-in Antenna

Alt view image 2 of 5 - 2pcs ESP32-C5 Dual-Band Wi-Fi 6 Development Board, 240MHz RISC-V Processor, ESP32-C5-WROOM-1 Series Module, Multi-Protocol RISC-V MCU 8MB PSRAM, 16MB Flash, with Pre-soldered headers Built-in Antenna

Alt view image 3 of 5 - 2pcs ESP32-C5 Dual-Band Wi-Fi 6 Development Board, 240MHz RISC-V Processor, ESP32-C5-WROOM-1 Series Module, Multi-Protocol RISC-V MCU 8MB PSRAM, 16MB Flash, with Pre-soldered headers Built-in Antenna

Alt view image 4 of 5 - 2pcs ESP32-C5 Dual-Band Wi-Fi 6 Development Board, 240MHz RISC-V Processor, ESP32-C5-WROOM-1 Series Module, Multi-Protocol RISC-V MCU 8MB PSRAM, 16MB Flash, with Pre-soldered headers Built-in Antenna

Alt view image 5 of 5 - 2pcs ESP32-C5 Dual-Band Wi-Fi 6 Development Board, 240MHz RISC-V Processor, ESP32-C5-WROOM-1 Series Module, Multi-Protocol RISC-V MCU 8MB PSRAM, 16MB Flash, with Pre-soldered headers Built-in Antenna

Shop All BEAN Tech Products | Visit TERRA HAVEN Store

2pcs ESP32-C5 Dual-Band Wi-Fi 6 Development Board, 240MHz RISC-V Processor, ESP32-C5-WROOM-1 Series Module, Multi-Protocol RISC-V MCU 8MB PSRAM, 16MB Flash, with Pre-soldered headers Built-in Antenna

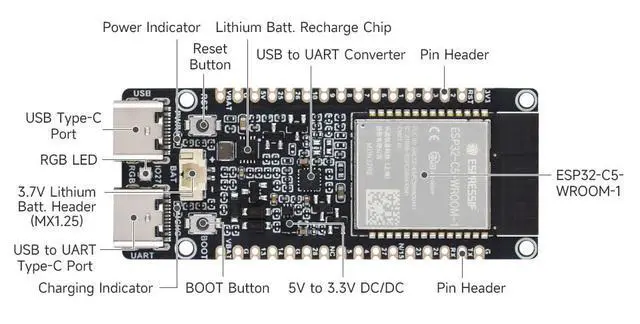

DUAL-BAND WI-FI 6: ESP32-C5-WROOM-1 module with integrated 2.4GHz and 5GHz dual-band Wi-Fi 6, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) for multi-protocol IoT gateway applications.; POWERFUL PROCESSOR: RISC-V 32-bit processor running up to 240MHz with 384KB Static RAM, 320KB ROM, 8MB PSRAM, and options for 16MB or 32MB Flash for stable concurrent multi-protocol tasks.; BATTERY MANAGEMENT: Onboard battery recharge management module with reserved 3.7V MX1.25 Lithium battery header for external battery power supply and portable applications.; FLEXIBLE CONNECTIVITY: USB Type-C port for easy programming and power, castellated module design allows direct soldering to carrier boards with rich peripheral interfaces.; DEVELOPMENT SUPPORT: Compatible with ESP-IDF and Arduino IDE frameworks, pinout compatible with ESP32-S3-DevKitC-1 development board for rapid prototyping and implementation.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

DUAL-BAND WI-FI 6: ESP32-C5-WROOM-1 module with integrated 2.4GH z and 5GHz dual-band Wi-Fi 6, Bluetooth 5 (LE), and IEEE 802.15. 4 (Zigbee 3.0 and Thread) for multi-protocol IoT gateway applications.;
POWERFUL PROCESSOR: RISC-V 32-bit processor running up to 240MHz with 384KB Static RAM, 320KB ROM, 8MB PSRAM, and options for 16MB or 32MB Flash for stable concurrent multi-protocol tasks.;
BATTERY MANAGEMENT: Onboard battery recharge management module with reserved 3.7V MX 1.25 Lithium battery header for external battery power supply and portable applications.;
FLEXIBLE CONNECTIVITY: USB Type-C port for easy programming and power, castellated module design allows direct soldering to carrier boards with rich peripheral interfaces.;

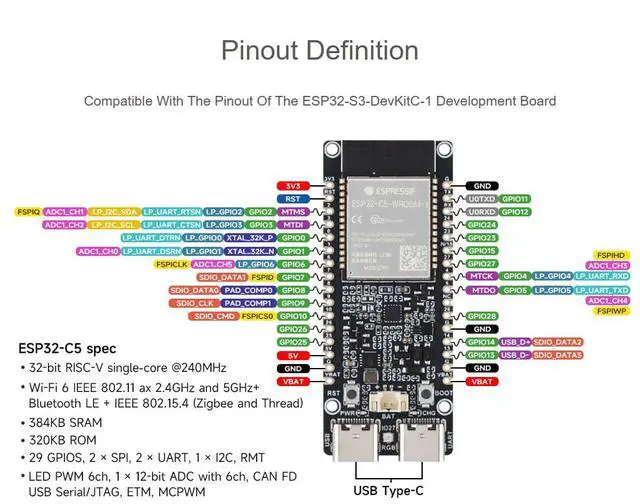

DEVELOPMENT SUPPORT: Compatible with ESP-IDF and Arduino IDE frameworks, pinout compatible with ESP32-S3-DevKitC-1 development board for rapid prototyping and implementation.
