DTOF LD19 D500 Lidar Developer Kit 360 Omnidirectional Laser Scanner Support ROS1 ROS2 Raspberry Pi Jetson Nano(Upgrade Version)

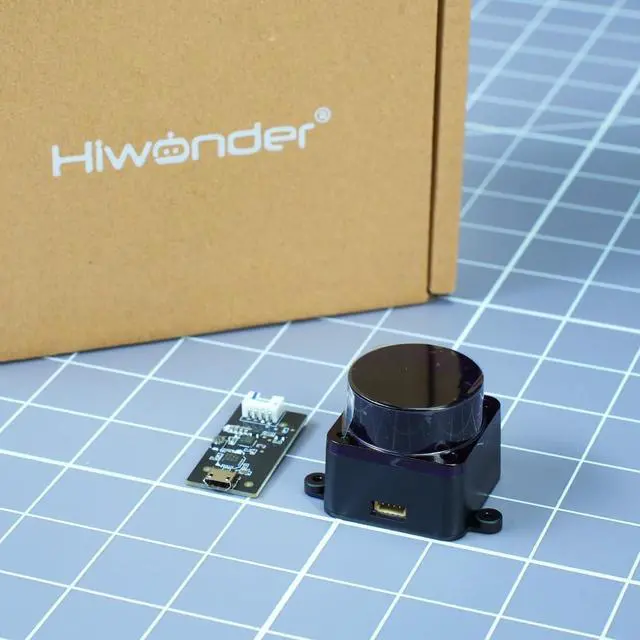

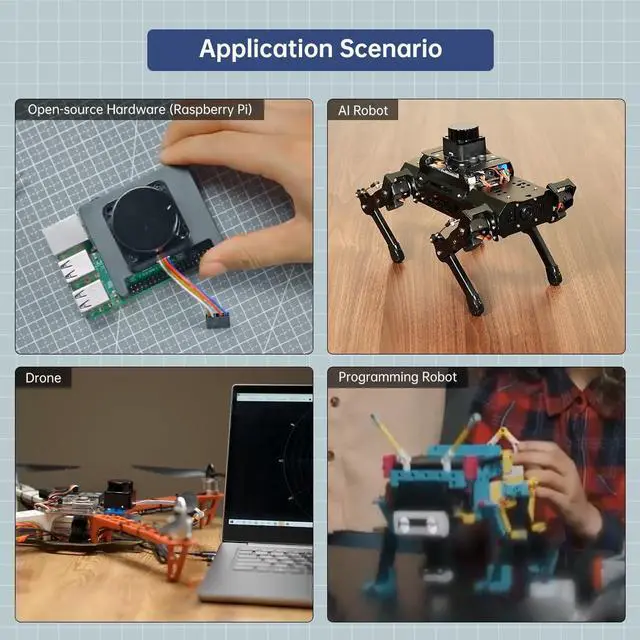

LD19 Lidar D500 Lidar KitBased on LD19 lidar and its original parameters, a serial cable and control board are added to D500 lidar developer kit for easier use and debugging.. TOF RangingWith time-of-flight technology, the distance can be measured based on the flight time of the laser pulse. Within the effective detection range of 12m, the ranging accuracy will not change with the distance and the average ranging accuracy of ±45mm can be achieved. ROS robots can realize 360 degrees environment detection, mapping and obstacle avoidance.. Support ROS2 and ROS1Compatible with ROS1 and ROS2 systems.

SDK and professional technical support are provided.. Resistant to GlareOn the basis of TOF principle, the first-class filter processing technology can effectively avoid the interference of glare, resists 30000 Lux of strong light, and realizes high frequency and high precision distance measurement as well as accurate mapping indoors and outdoors.. Safety LidarTo ensure the safety for humans and pets, a low power infrared laser emitter is used as the light source and is driven by modulated pulses, the laser completes the emitting action in a very short period of time, complying with the FDA Class 1 human eye safety rating.
