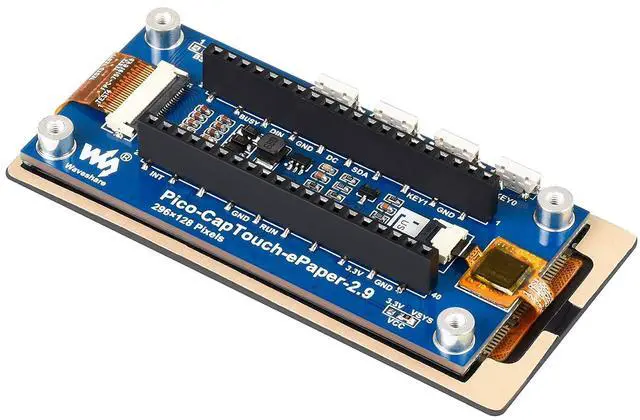

2.9inch Capacitive Touch e-Paper Module for Raspberry Pi Pico, 296×128 Pixels, Black/White Two-Color, SPI / I2C Interface, Support Partial Refresh
- 2.9inch capacitive touch ePaper module, 296×128 resolution.Support Partial Refresh; 5-points touch support, user-defined wakeup gesture.; No backlight, keeps displaying last content for a long time even when power down; Ultra low power consumption, basically power is only required for refreshing; SPI / I2C interface, requires minimal IO pins. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

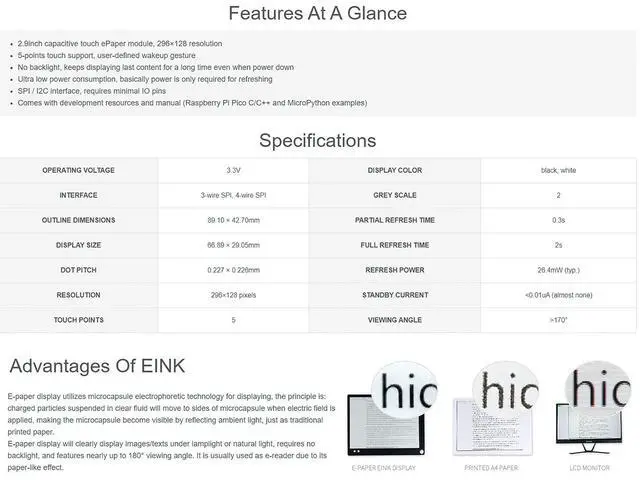

Features 2.9 inch capacitive touch ePaper module, 296×128 resolution 5-points touch support, user-defined wakeup gesture No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing SPI / I2C interface, requires minimal IO pins Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Touch points: 5
operating voltage: 3.3V
display color: black, white
interface: 3-wire SPI, 4-wire
SPI grey scale: 2

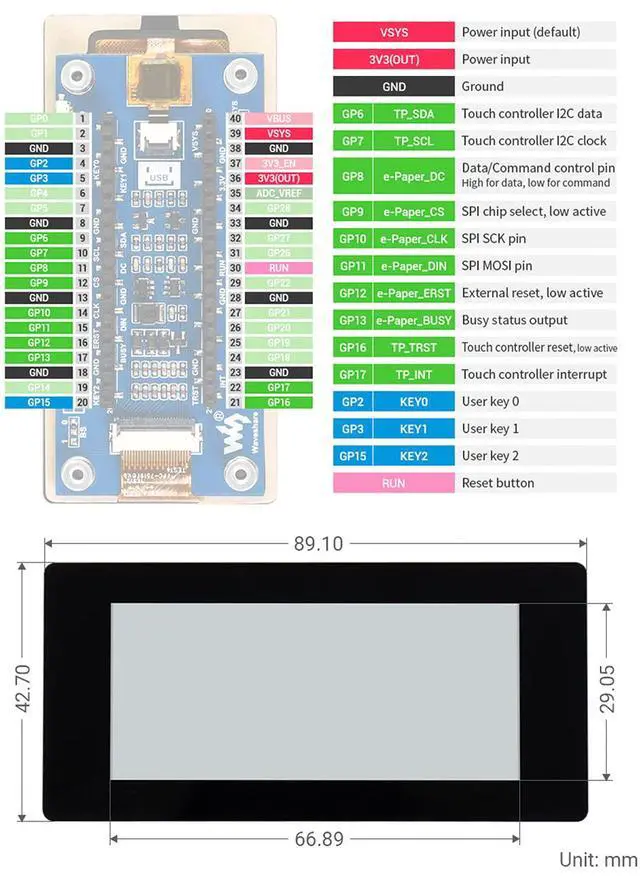

outline dimensions: 89.10 × 42.70 mm partial refresh time: 0.3
s full refresh time: 2s
display size: 66.89 × 29.05 mm dot pitch: 0.227 × 0.226 mm refresh power: 26.4 mW (typ. )

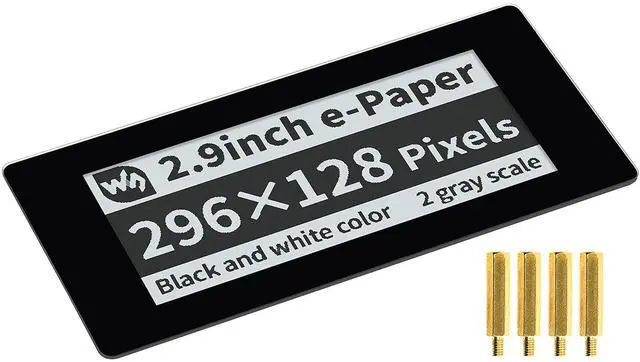

standby current: <0.01uA (almost none) viewing angle:> 170° Application Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags... Package Conten Pico-CapTouch-ePaper- 2.9 x1 Standoff pack x1
Specifications
resolution: 296×128 pixelsTouch points: 5
operating voltage: 3.3V
display color: black, white
interface: 3-wire SPI, 4-wire
SPI grey scale: 2
outline dimensions: 89.10 × 42.70 mm partial refresh time: 0.3
s full refresh time: 2s
display size: 66.89 × 29.05 mm dot pitch: 0.227 × 0.226 mm refresh power: 26.4 mW (typ. )
standby current: <0.01uA (almost none) viewing angle:> 170° Application Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags... Package Conten Pico-CapTouch-ePaper- 2.9 x1 Standoff pack x1
