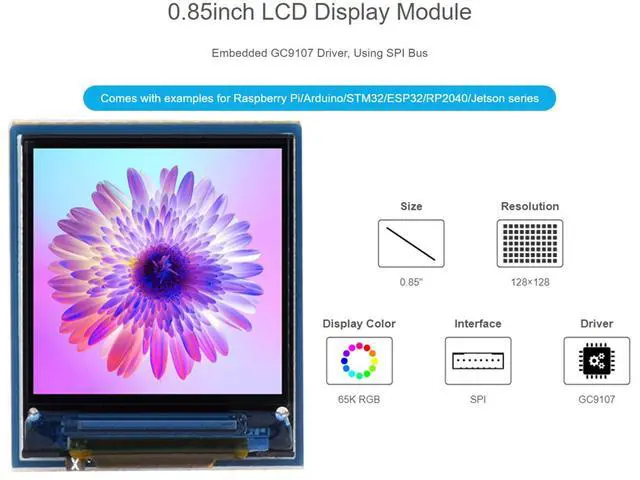

0.85inch LCD Display Module 128×128 Resolution IPS Screen for Raspberry Pi/ STM32/ ESP32/ RP2040/ Jetson Series, 65K RGB Colors Embedded GC9107 Driver Using SPI Bus
Limited time offer, ends 07/26 By EmpressTech
- 0.85inch LCD Display Module IPS Panel, 128×128 resolution, 65K RGB colors, clear and colorful displaying effect; Embedded GC9107 Driver, Using SPI Bus. This LCD uses a four-wire SPI communication interface, which can greatly save the GPIO port, and the communication speed will be faster; SPI interface, minimizes required IO pins, controlled via SPI Bus, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series; Operating voltage: 3.3V (Please ensure that the supply voltage and logic voltage are consistent; otherwise, it may result in the device not functioning properly); The LCD supports 8-bit, 9-bit, and 16-bit input color formats per pixel, namely RGB444 and RGB565, two color formats, this screen uses RGB565 format color format, which is also commonly used RGB Format
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

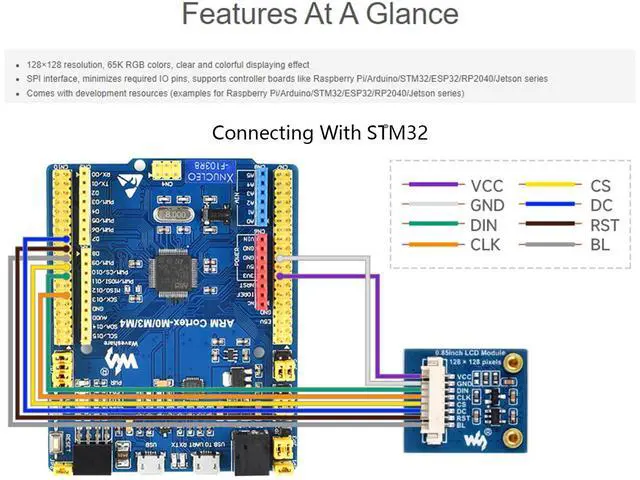

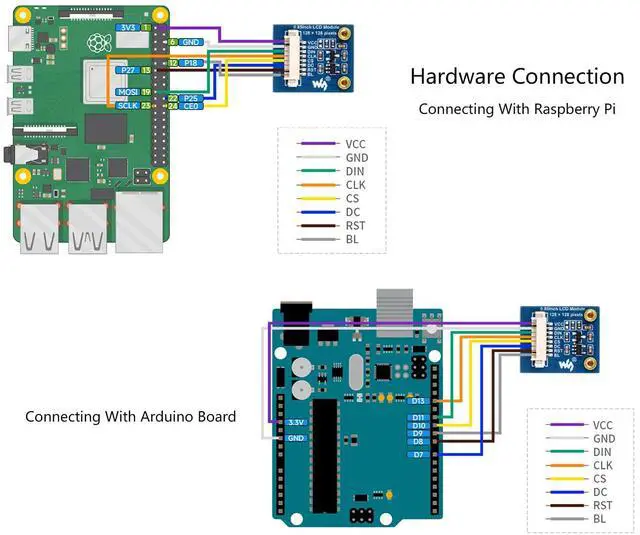

0.85 inch LCD Display Module, IPS Panel, 128×128 Resolution, SPI Interface, 65K colors Features 128×128 resolution, 65K RGB colors, clear and colorful displaying effect SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series Comes with development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series)

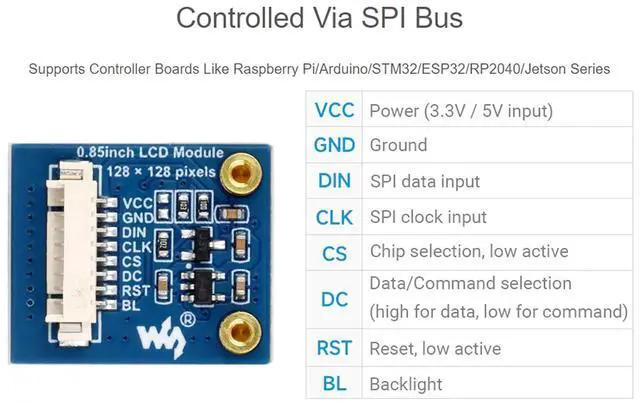

Communication interface: SPI
Screen type: IPS
Controller: GC9107
Resolution: 128 (H) RGB x 128 (V)
Display size: 15.2064 (H) x 15.2064 (V) mm
Pixel pitch: 39.6 (H) x 118.8 (V) um

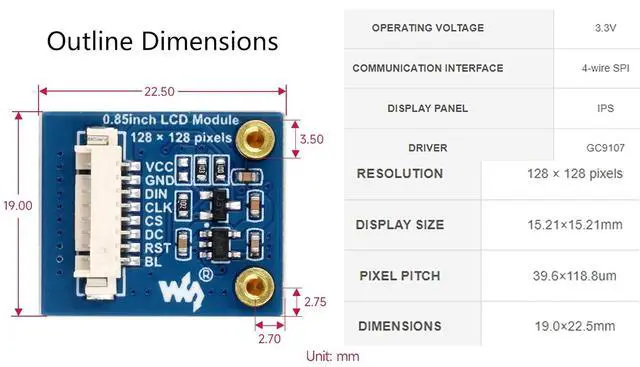

Dimensions: 19.0 × 22.5 mm Online Development Resources /User

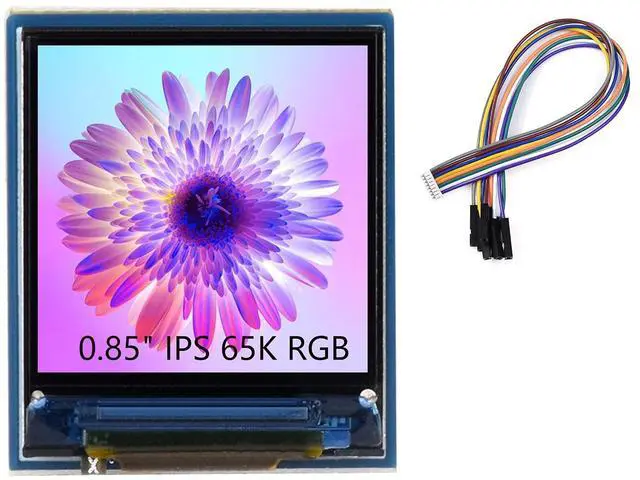

Manual: //bit. ly/4a1yCK6 Package Content 0.85 inch LCD Module x1 GH 1.25 8Pcable x1 FAQ
1.
Question: What is the maximum power consumption of 0.85 inch LCD Module?
Answer: 3.3V 60mA.
2.
Question: What is the maximum brightness of 0.85 inch LCD Module?
Answer: 3.3V 260cd/m2.
3.
Question: How to turn off the backlight by default for 0.85 inch LCD Module?
Answer: Just use a 10K resistor soldered on the R2 position and the R4 resistor not connected (NC).
Specifications
Operating voltage: 3.3V (Please ensure that the supply voltage and logic voltage are consistent; otherwise, it may result in the device not functioning properly)Communication interface: SPI
Screen type: IPS
Controller: GC9107
Resolution: 128 (H) RGB x 128 (V)
Display size: 15.2064 (H) x 15.2064 (V) mm
Pixel pitch: 39.6 (H) x 118.8 (V) um
Dimensions: 19.0 × 22.5 mm Online Development Resources /User
Manual: //bit. ly/4a1yCK6 Package Content 0.85 inch LCD Module x1 GH 1.25 8Pcable x1 FAQ
1.
Question: What is the maximum power consumption of 0.85 inch LCD Module?
Answer: 3.3V 60mA.
2.
Question: What is the maximum brightness of 0.85 inch LCD Module?
Answer: 3.3V 260cd/m2.
3.
Question: How to turn off the backlight by default for 0.85 inch LCD Module?
Answer: Just use a 10K resistor soldered on the R2 position and the R4 resistor not connected (NC).
