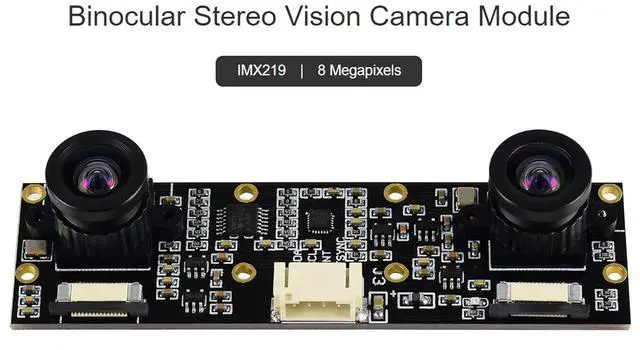

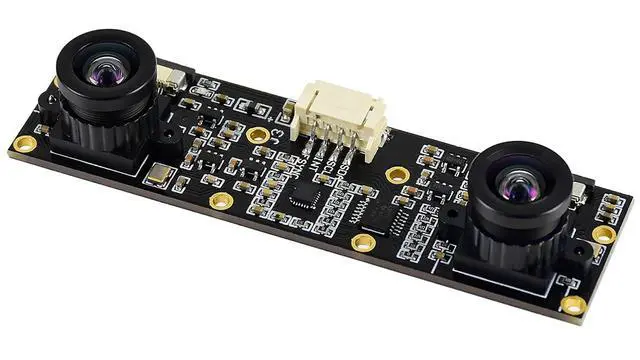

8MP Binocular Camera Module IMX219-83 Stereo Camera Onboard Dual 8Megapixels Cameras Supports Jetson Nano Developer Kit (B01) and Compute Module 4/CM3+/CM3 Base Boards for AI Vision

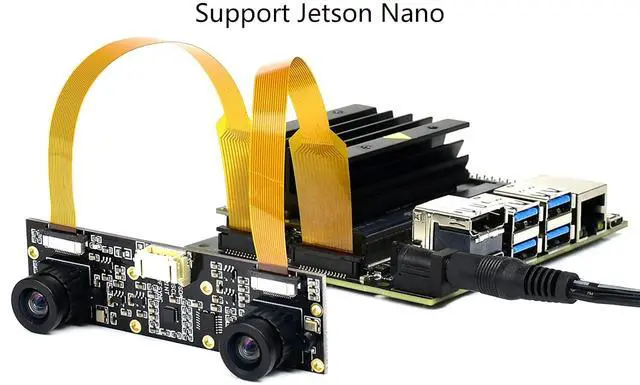

- Binocular Stereo Vision Camera Module, adopts IMX219 chip, onboard dual 8Megapixels cameras; Supports Jetson Nano Developer Kit (B01) and JETSON-NANO-DEV-KIT Development Kit; Supports Raspberry Pi CM3/CM3+/CM4 base boards like Compute Module IO Board Plus, Compute Module POE Board, etc; Suitable for AI vision applications like depth vision and stereo vision; Note: This IMX219 series camera cannot be used on the Raspberry Pi board due to the encryption, and it can only be used with the carrier board on the computing module, like Compute Module 3/3+/4
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

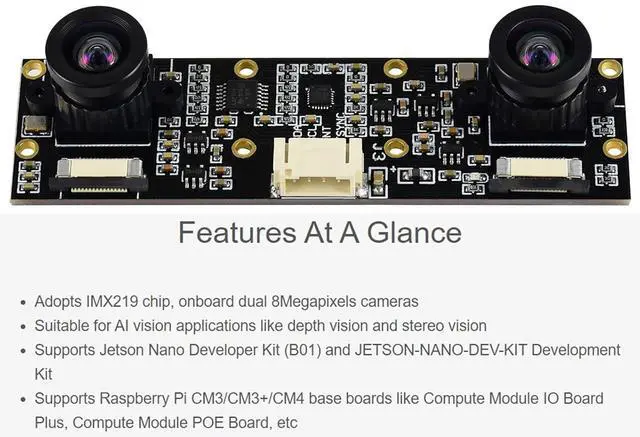

Features Adopts IMX219 chip, onboard dual 8Megapixels cameras Suitable for AI vision applications like depth vision and stereo vision Supports Jetson Nano Developer Kit (B01) and JETSON-NANO-DEV-KIT Development Kit Supports Raspberry Pi CM3/CM3+/CM4 base boards like Compute Module IO Board Plus, Compute Module POE Board, etc Specification 8
Megapixels Sensor: IMX219
Resolution: 3280 × 2464 (per camera)
Lens specifications: ---CMOS
size: 1/4inch ---Focal
Length: 2.6 mm ---Angle of
View: 83/73/50
degree (diagonal/horizontal/vertical) ---Distortion: <1% ---Baseline Length: 60mm ICM20948:
1.
Accelerometer:
---Resolution: 16-bit ---Measuring
Range (configurable): ±2, ±4, ±8, ±16g ---Operating
Current: 68.9 uA
2.
Gyroscope:
---Resolution: 16-bit ---Measuring
Range (configurable): ±250, ±500, ±1000, ±2000°/sec ---Operating
Current: 1.23 mA
3.
Magnetometer:
---Resolution: 16-bit ---Measuring
Range: ±4900T ---
Operating Current: 90uA

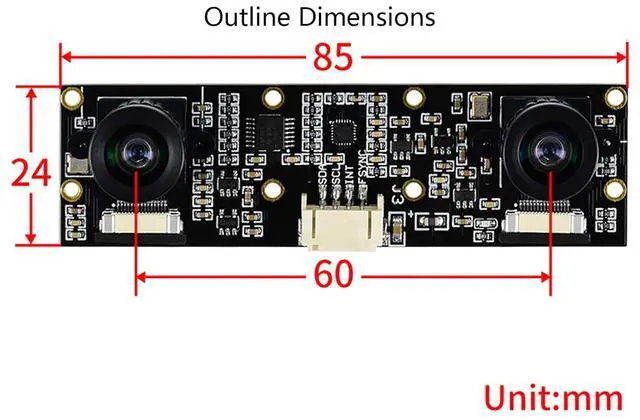

Dimension: 24mm × 85mm
Applications: AI vision applications like depth vision and stereo vision.

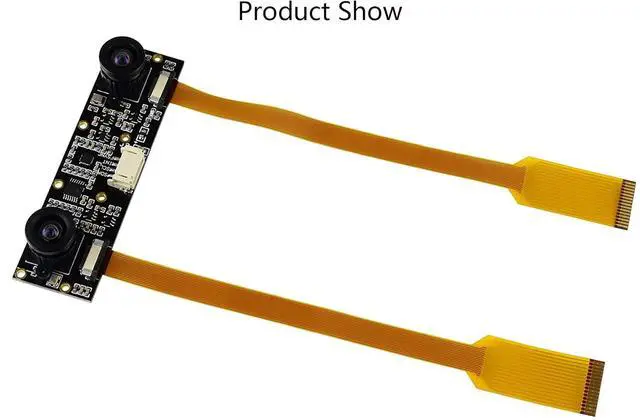

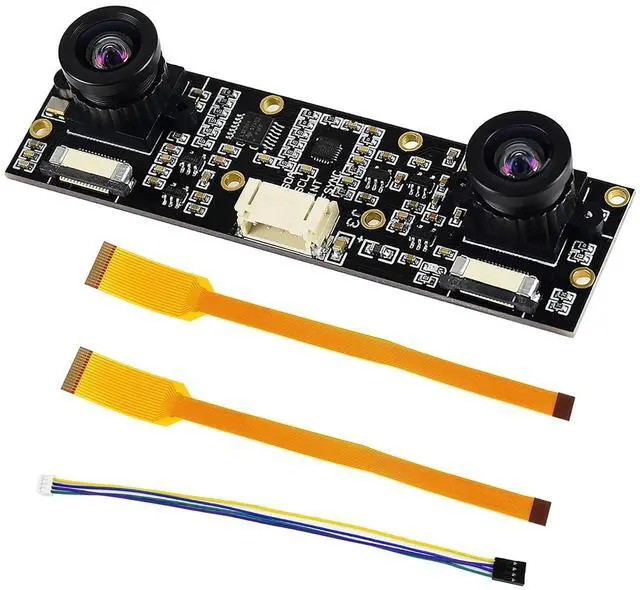

How-to-use document/User Manual: //bit. ly/40JbOKQ Package Content IMX219-83 Stereo Camera x1 FPC 15pin 2PCS x1 FPC 15pin to 22pin 2PCS x1 PH 2.0 4PIN wire x1
Megapixels Sensor: IMX219
Resolution: 3280 × 2464 (per camera)
Lens specifications: ---CMOS
size: 1/4inch ---Focal
Length: 2.6 mm ---Angle of
View: 83/73/50
degree (diagonal/horizontal/vertical) ---Distortion: <1% ---Baseline Length: 60mm ICM20948:
1.
Accelerometer:
---Resolution: 16-bit ---Measuring
Range (configurable): ±2, ±4, ±8, ±16g ---Operating
Current: 68.9 uA
2.
Gyroscope:
---Resolution: 16-bit ---Measuring
Range (configurable): ±250, ±500, ±1000, ±2000°/sec ---Operating
Current: 1.23 mA
3.
Magnetometer:
---Resolution: 16-bit ---Measuring
Range: ±4900T ---
Operating Current: 90uA
Dimension: 24mm × 85mm
Applications: AI vision applications like depth vision and stereo vision.
How-to-use document/User Manual: //bit. ly/40JbOKQ Package Content IMX219-83 Stereo Camera x1 FPC 15pin 2PCS x1 FPC 15pin to 22pin 2PCS x1 PH 2.0 4PIN wire x1
