ESP32-S3 2.8inch Capacitive Touch Display Development Board, 5-Point Touch, 240×320 IPS LCD, 32-bit LX7 Dual-Core Processor, Support Wi-Fi & Bluetooth, Multiple Peripherals Interfaces, with Speaker

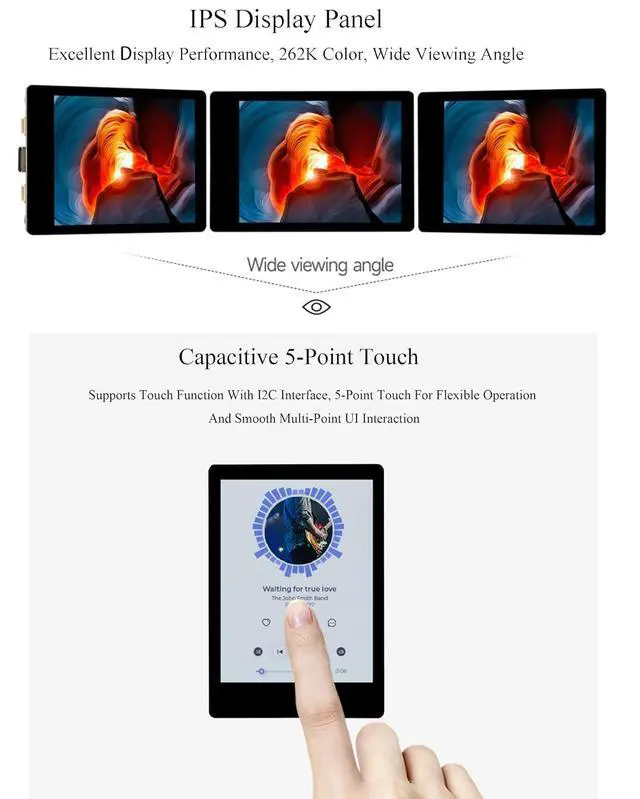

- ESP32 with 2.8inch IPS Touch Display: ESP32-S3 Development Board Onboard with 2.8inch Capacitive Touch Display can smoothly run GUI programs such as LVGL. 240×320 resolution, IPS Display Panel. Excellent display performance, 262K color, wide viewing angle.; Capacitive 5-point touch: Supports touch function with I2C interface, 5-point touch for flexible operation and smooth multi-point UI interaction.; Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.; Supports multiple peripherals: Supports the expansion of multiple peripherals via GPIO, UART, I2C interfaces, etc. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.; Adapting UART, I2C and some IO interfaces, integrates full-speed USB port. Onboard speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot and batte-ry rechar-ge management module, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

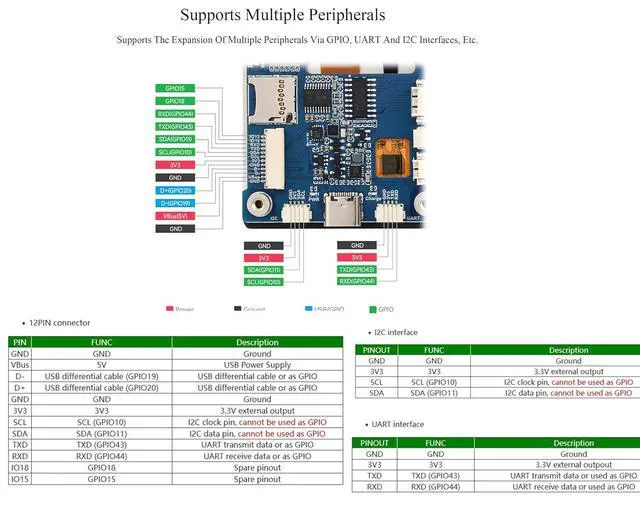

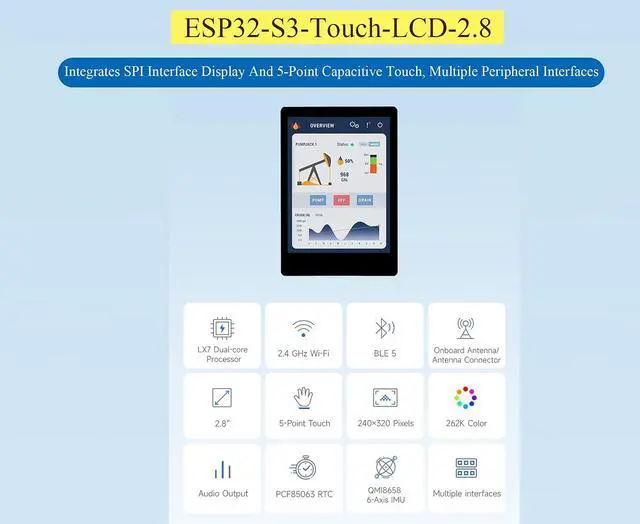

Product description Features ESP32-S3-Touch-LCD- 2.8 is a microcontroller development board with 2.4GH z W--F-i and Blue--too--th BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 2.8 inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GH z W--F-i ( 802.11 b/g/n) and Blue--too--th 5 (LE), with onboard antenna Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM Onboard 2.8 inch capacitive touch display, 240×320 resolution, 262K color Supports capacitive touch control via I2C interface, 5-point touch with interrupt support Adapting UART, I2C and some IO interfaces, integrates full-speed USB port Onboard speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot and ba tte-ry recharge management module, etc.
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
