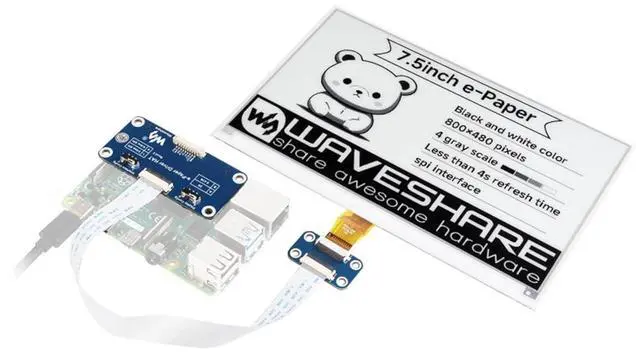

7.5inch e-Paper HAT Compatible with Raspberry Pi 5/4B/3B+/Zero/Zero W/Zero 2W/Pico/Pico W/Pico 2/Pico 2W/Jetson Nano, 800×480 Resolution 7.5inch E-Ink Display HAT, SPI Interface,Black White Two-Color

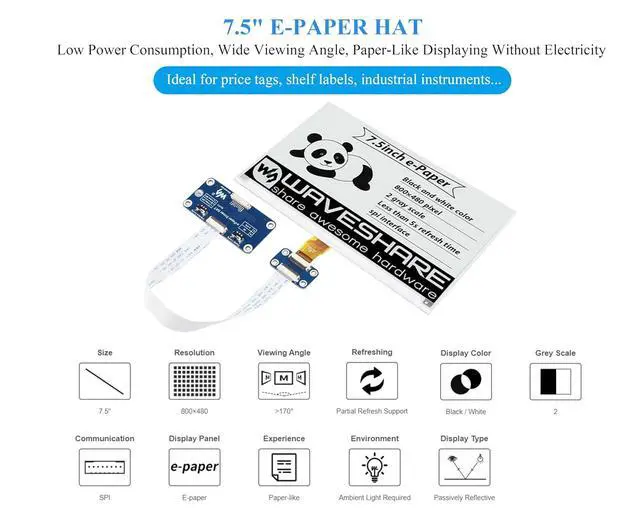

800×480, 7.5 inch E-Ink display HAT for Raspberry Pi, SPI interface Overview This is an E-Ink display HAT for Raspberry Pi, 7.5 inch, 800×480 resolution, with embedded controller, communicating via SPI interface. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing

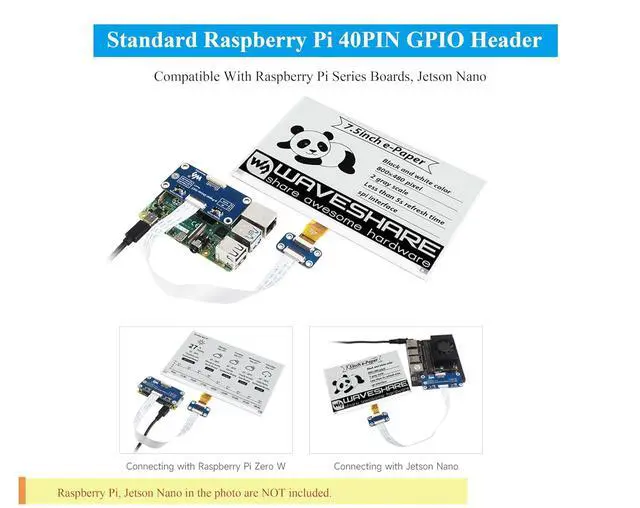

3. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano 4. SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
5. Onboard voltage translator, compatible with 3.3V /5V MCUs
6. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

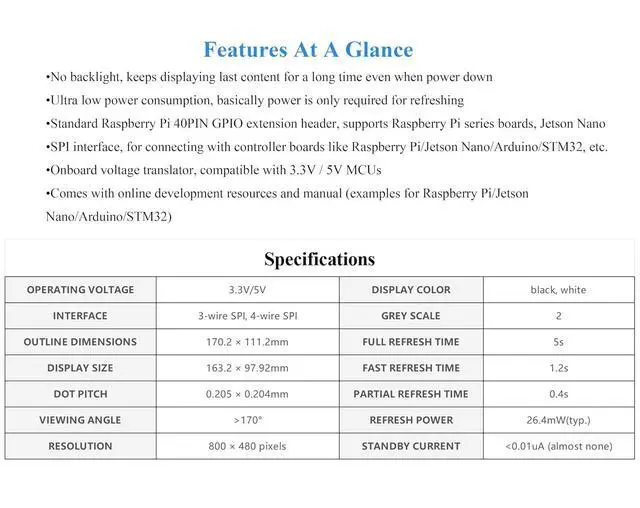

Specifications

1.
Operating voltage: 3.3V ~5V
2.
Interface: SPI
3.
Outline dimension: 170.2 mm × 111.2 mm
4.
Display size: 163.2 mm × 97.92 mm
5.
Dot pitch: 0.205 × 0.204
6.
Resolution: 800×480
7.
Display color: black, white
8.
Grey scale: 2
9.
Full refresh time: 5s
10.
Refresh power: 38mW(typ. )
11.
Standby power: <0.017mW
12.

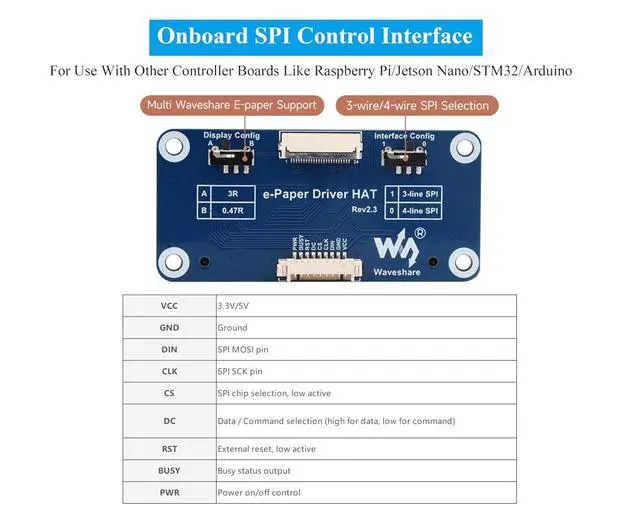

Viewing angle: >170° Interface VCC --- 3.3V ~5V GND ---Ground DIN ---SPI MOSI pin CLK ---SPI SCK pin CS ---SPI chip selection, low active DC ---Data/Command selection (high for data, low for command) RST---External reset, low active BUSY---Busy status output, low active Online Development Resources /User

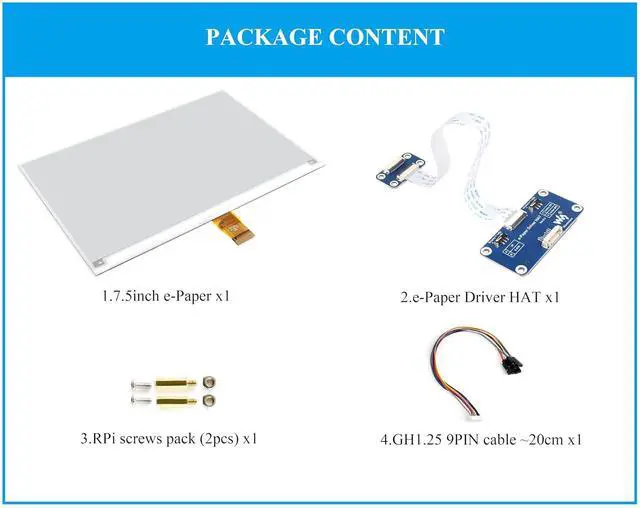

Manual: //bit. ly/3FWYfyo Package Content 7.5 inch e-Paper x1 e-Paper Driver HAT x1 RPi screws pack (2pcs) x1 PH 2.0 20cm x1
