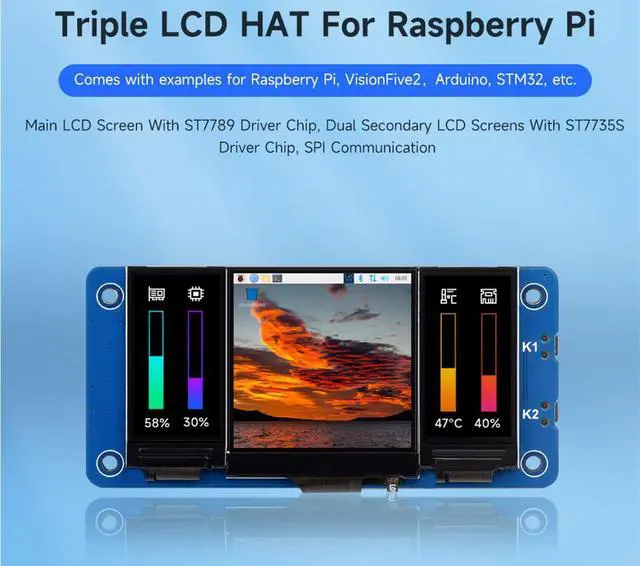

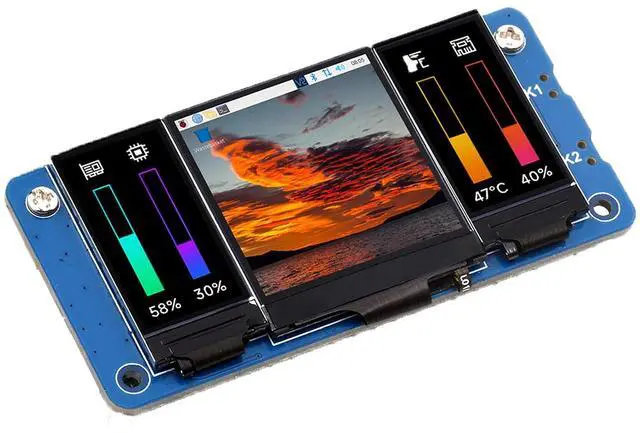

Triple LCD HAT for Raspberry Pi, Onboard 1.3inch IPS LCD 240×240 Resolution Main Screen and Dual 0.96inch IPS 160×80 Resolution LCD Secondary Screens, SPI Interface

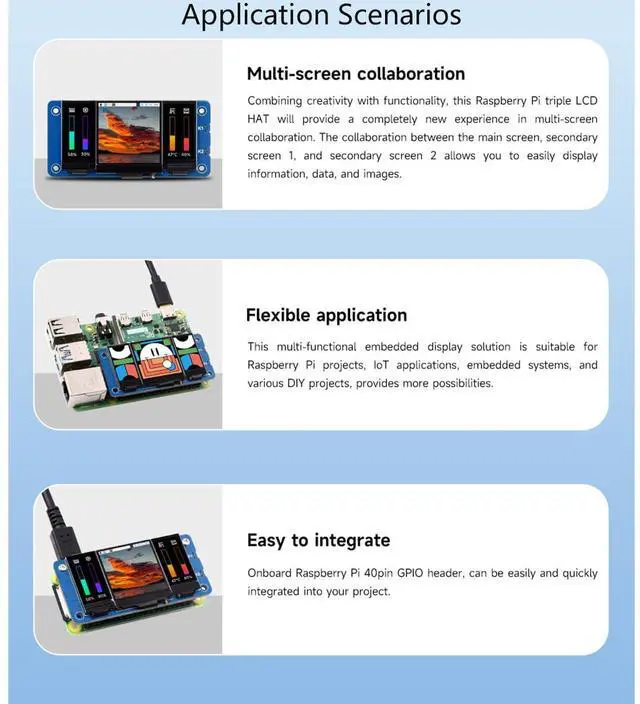

- This is the Triple LCD HAT for Raspberry Pi. Onboard 1.3inch IPS LCD Main Screen and Dual 0.96inch IPS LCD Secondary Screens; 1.3inch IPS LCD Main Screen with built in ST7789 driver chip, SPI interface communication, wide viewing angle, supports 65K color display, 240×240 resolution; Dual 0.96inch LCD secondary screens with built in ST7735S driver chip, SPI interface communication, supports 65K color display, 160×80 resolution, can be used to display key informations, status indicator messages or small graphics; Onboard 2x user-defined keys for extended applications; Application Scenarios: Multi-screen collaboration; Flexible application, is suitable for Raspberry Pi projects, IoT applications, embedded systems, and various DIY project, provides more possiblities
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

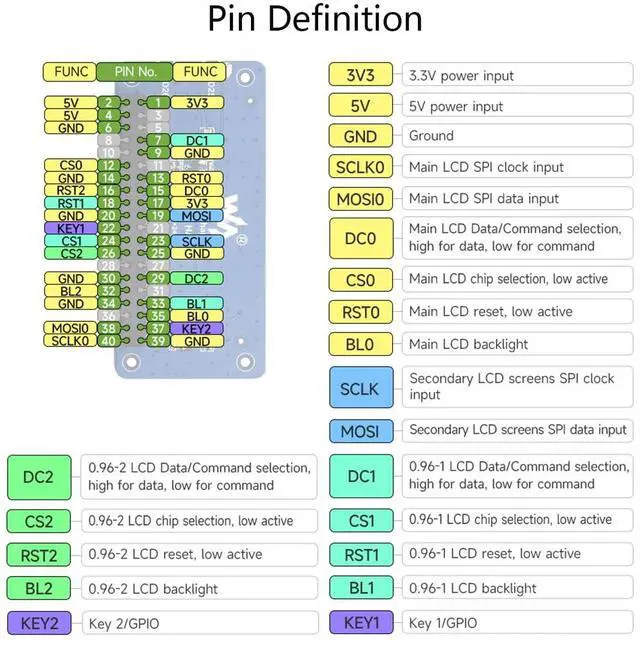

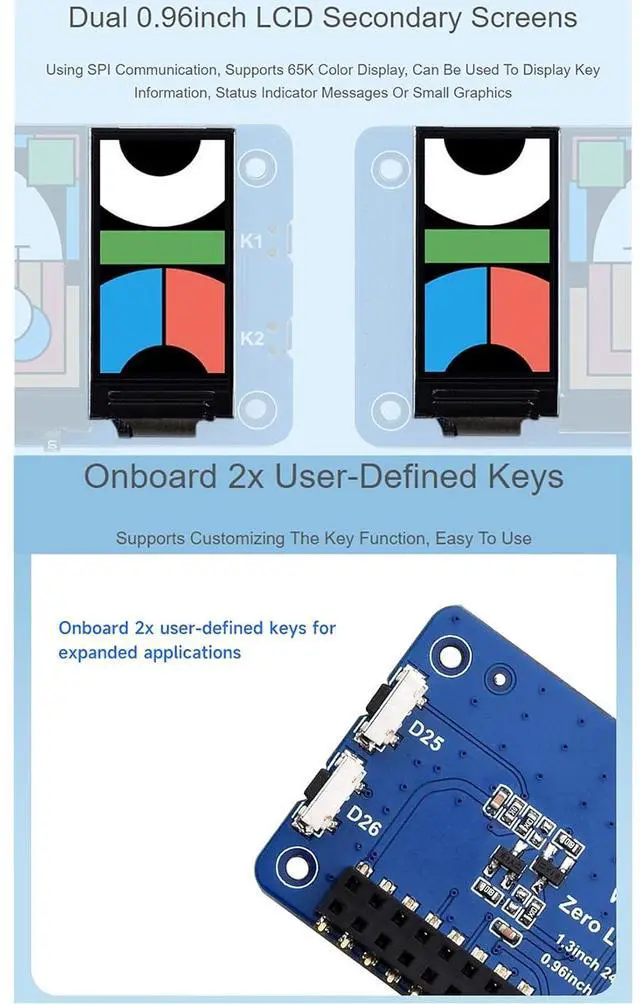

Triple LCD HAT For Raspberry Pi, Onboard 1.3 inch IPS LCD Main Screen with ST7789 driver chip, and Dual 0.96 inch IPS LCD Secondary Screens with ST7735S driver chip, compatible with Raspberry Pi Series Boards Features Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards 1.3 inch IPS LCD Main Screen with built in ST7789 driver chip, SPI interface communication, wide viewing angle, supports 65K color display, 240×240 resolution Dual 0.96 inch LCD secondary screens with built in ST7735S driver chip, SPI interface communication, supports 65K color display, 160×80 resolution, can be used to display key informations, status indicator messages or small graphics Onboard 2x user-defined keys for extended applications, supports customizing the key function, easy to use Comes with online development resources and manual (Raspberry Pi/VisionFive2/Arduino/STM32, etc.

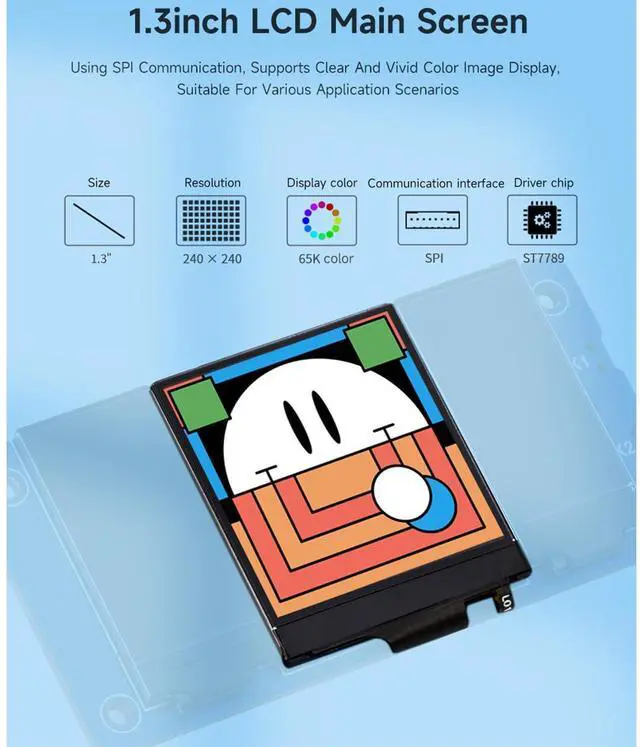

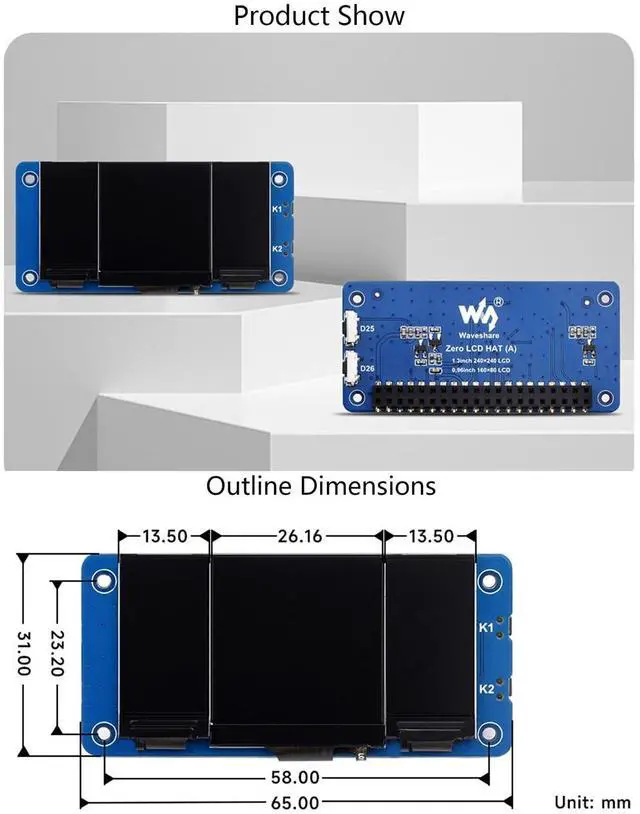

) LCD and Controller This LCD is a Triple-screen consisting of two 0.96 -inch screens and a 1.3 -inch screen. Among them, the built-in controller used in the 1.3 -inch screen is ST7789VM, which is a 240 X RGB X 320 pixel LCD controller, and the pixel of this LCD itself is 240 (H) RGB X 240 (V). There are two types of horizontal screen and vertical screen, so the internal RAM of the LCD is not fully used. The built -in controller used in the 0.96 -inch screen is ST7735S, which is an LCD controller with 162 X RGB X 132 pixels, and the pixel of this LCD itself is 160 (H) RGB X 80 (V).
The LCD supports 12 -bit, 16 -bit, and 18 -bit input color format, that is, RGB444, RGB565, RGB666 three color formats. For most of the LCD controller, the communication method of the controller can be configured. Generally, there are 8080 parallel interface, three -line SPI, and four -line SPI.
Online Tutorial/Online Document: n9. cl/ptqwj Package Content Zero LCD HAT (A) x1 Standoffs pack x1
) LCD and Controller This LCD is a Triple-screen consisting of two 0.96 -inch screens and a 1.3 -inch screen. Among them, the built-in controller used in the 1.3 -inch screen is ST7789VM, which is a 240 X RGB X 320 pixel LCD controller, and the pixel of this LCD itself is 240 (H) RGB X 240 (V). There are two types of horizontal screen and vertical screen, so the internal RAM of the LCD is not fully used. The built -in controller used in the 0.96 -inch screen is ST7735S, which is an LCD controller with 162 X RGB X 132 pixels, and the pixel of this LCD itself is 160 (H) RGB X 80 (V).
The LCD supports 12 -bit, 16 -bit, and 18 -bit input color format, that is, RGB444, RGB565, RGB666 three color formats. For most of the LCD controller, the communication method of the controller can be configured. Generally, there are 8080 parallel interface, three -line SPI, and four -line SPI.
Online Tutorial/Online Document: n9. cl/ptqwj Package Content Zero LCD HAT (A) x1 Standoffs pack x1
