1.32inch OLED Display Module 128×96 Resolution Screen, 16 Gray Scale 3.3V / 5V Operating Voltage SPI / I2C Communication, for Ardui/Raspberry Pi/STM32, etc.
- 1.32inch OLED Display Module 128×96 Resolution Screen. Ultra-narrow bezel, conpact size, with onboard voltage translator; Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate.; Embedded SSD1327 driver chip.Operating voltage: 3.3V/5V (IO high-level voltage and supply voltage need to be the same).; Display color: White. Grey scale: 16. Operating temperature: -20°C ~ 70°C. Storage temperature: -30°C ~ 80°C. Viewing angle: > 160°.; Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

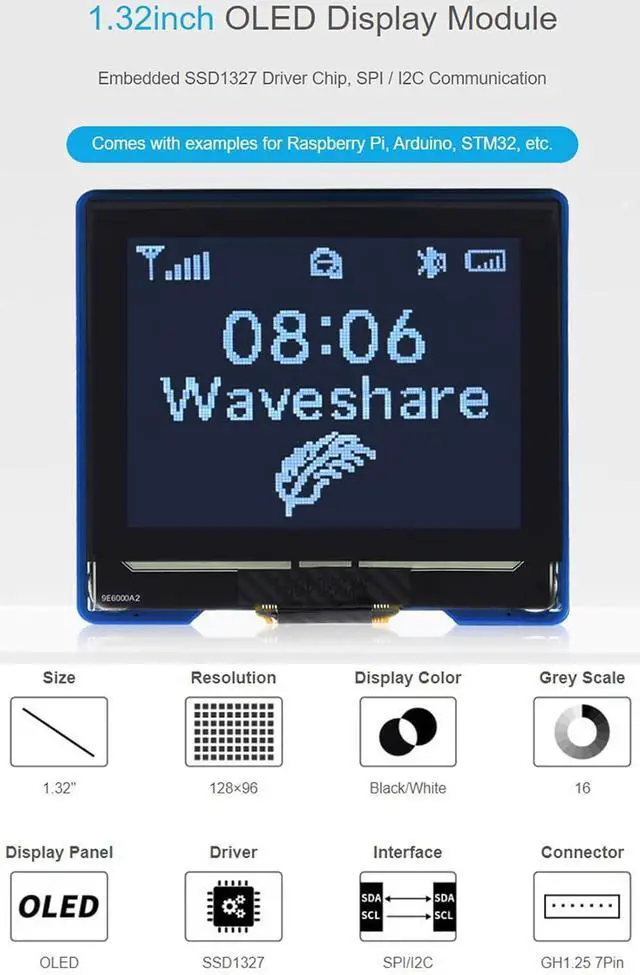

1.32 inch OLED Display Module. Embedded SSD1327 driver chip, SPI / I2C Communication Features Ultra-narrow bezel, conpact size, with onboard voltage translator Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
DISPLAY PANEL: OLED
Communication Interface: 4-wire SPI /
I2C Driver: SSD1327
Resolution: 128 × 96 pixels
PIXEL SIZE: 0.19 × 0.19 mm
Display size: 26.86 × 20.14 mm

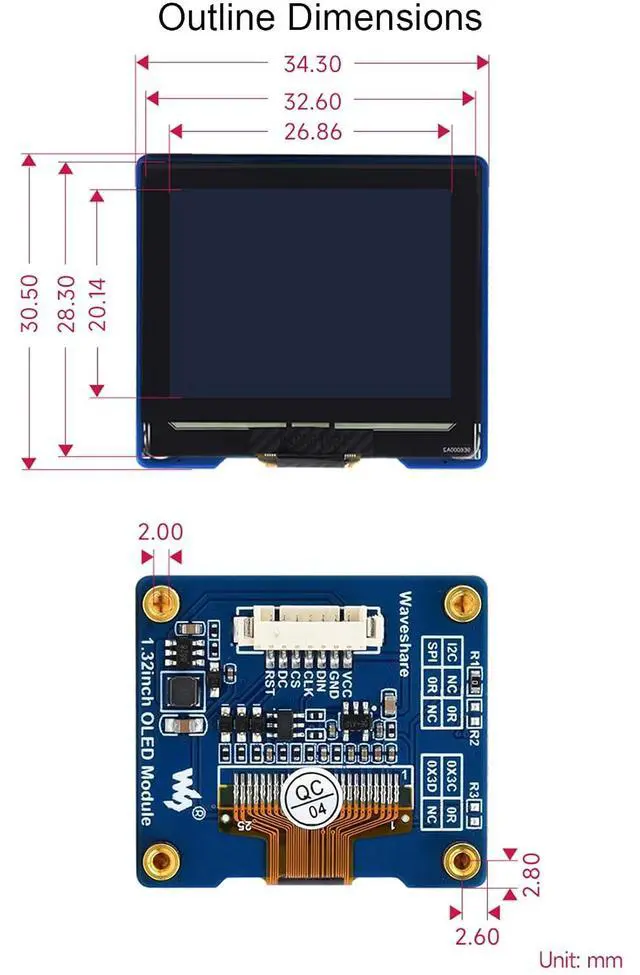

Module size: 34.30 × 30.50 mm

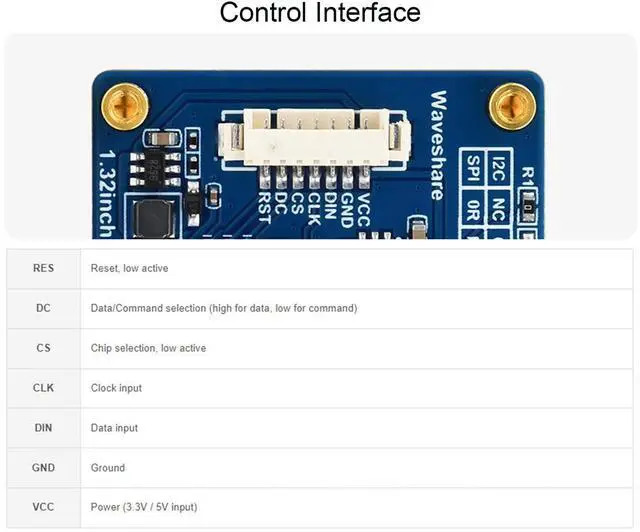

Function Pins RES: Reset, low active
DC: Data/Command selection (high for data, low for command)
CS: Chip selection, low active
CLK: Clock input
DIN: Data input
GND: Ground
VCC: Power ( 3.3V / 5V input) How-to-use document/User

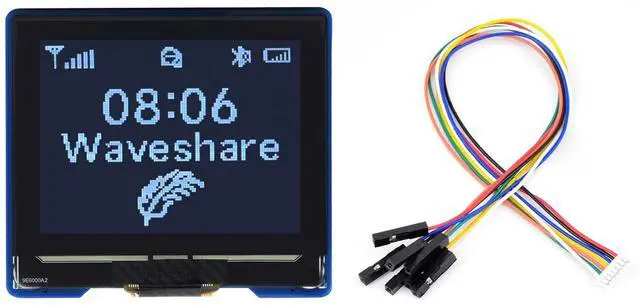

Manual: //bit. ly/42xSXlf Package Content 1.32 inch OLED Module x1 GH 1.25 7PIN cable x1
Specifications
Operating voltage: 3.3V / 5VDISPLAY PANEL: OLED
Communication Interface: 4-wire SPI /
I2C Driver: SSD1327
Resolution: 128 × 96 pixels
PIXEL SIZE: 0.19 × 0.19 mm
Display size: 26.86 × 20.14 mm
Module size: 34.30 × 30.50 mm
Function Pins RES: Reset, low active
DC: Data/Command selection (high for data, low for command)
CS: Chip selection, low active
CLK: Clock input
DIN: Data input
GND: Ground
VCC: Power ( 3.3V / 5V input) How-to-use document/User
Manual: //bit. ly/42xSXlf Package Content 1.32 inch OLED Module x1 GH 1.25 7PIN cable x1
