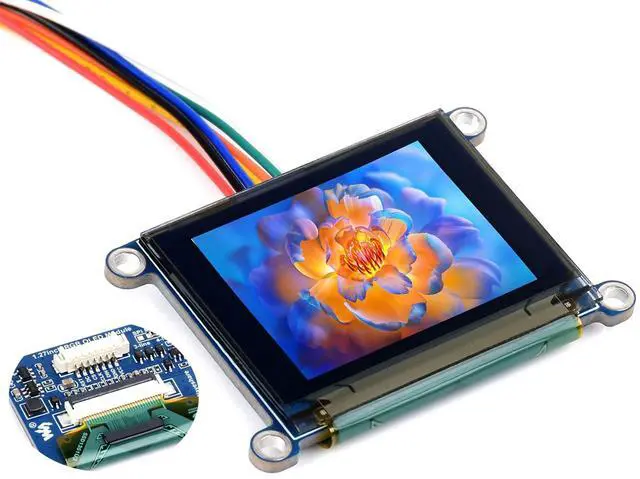

1.27inch RGB OLED Display Module 128×96 Resolution Screen, 262K RGB Colors SPI Interface 3.3V / 5V Operating Voltage, for Ardu/Raspberry Pi/STM32

1.27 inch RGB OLED Display Module 128×96 Resolution Screen. Embedded SSD1351 driver chip, SPI Communication Features 128×96 resolution OLED display, 262K colors, clear and colorful displaying effect SPI interface, minimizes required IO pins Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

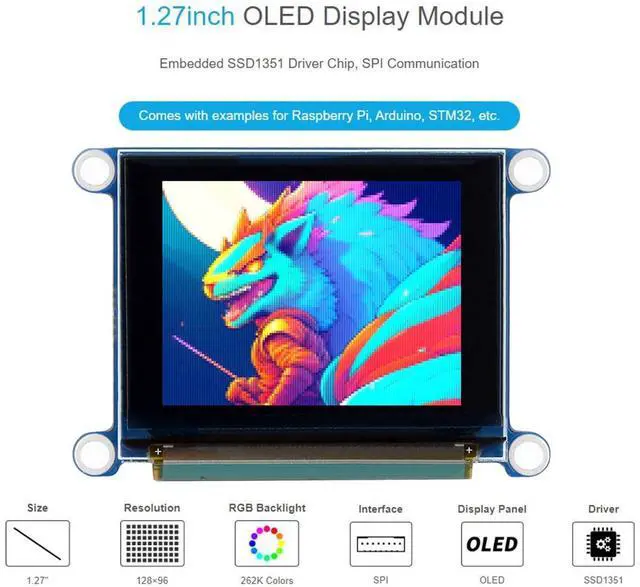

Specifications

Operating voltage: 3.3V / 5V
Resolution: 128 × 96 pixels
Communication Interface: 3/4-wire
SPI Driver: SSD1351
DISPLAY PANEL: OLED
Display size: 25.708 × 19.28 mm
PIXEL SIZE: 0.047 × 0.185 mm
Module size: 42.2 × 29.0 mm OLED and its controller The built-in driver used by this OLED is SSD1351, which is a 128RGB * 128 Dot Matrix OLED/PLED controller with a 128*128*18bit SRAM as a display buffer area, which supports two color depths of 262k and 65k. And supports 8bit 8080 parallel, 8bit 6800 parallel, 3wire-SPI and 4wire-SPI and other communication methods. This module selects 4wire-SPI and 3wire-SPI as the communication method, which reduces the area of the module and saves the IO resources of the controller.

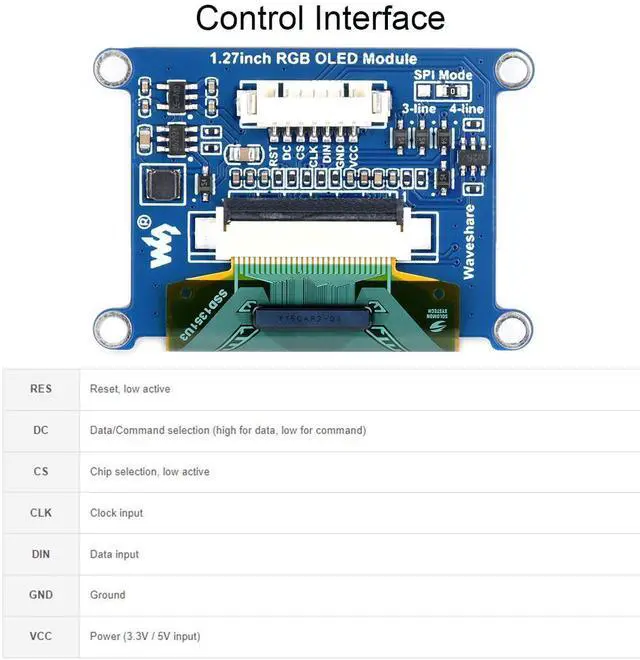

Pinout RES: Reset, low active
DC: Data/Command selection (high for data, low for command)
CS: Chip selection, low active
CLK: Clock input
DIN: Data input
GND: Ground
VCC: Power ( 3.3V / 5V input) How-to-use document/User
Manual: //bit. ly/43rUx9F Package Content 1.27 inch RGB OLED Module x1 GH 1.25 7PIN cable x1
