OLED/LCD HAT for Raspberry Pi 4B/3B+/3B/2B/ Pi Zero/Zero W/Zero WH/Raspberry Pi Zero 2W, Onboard 2inch IPS LCD Main Screen SPI Interface and Dual 0.96inch Blue OLED Secondary Screen I2C Interface

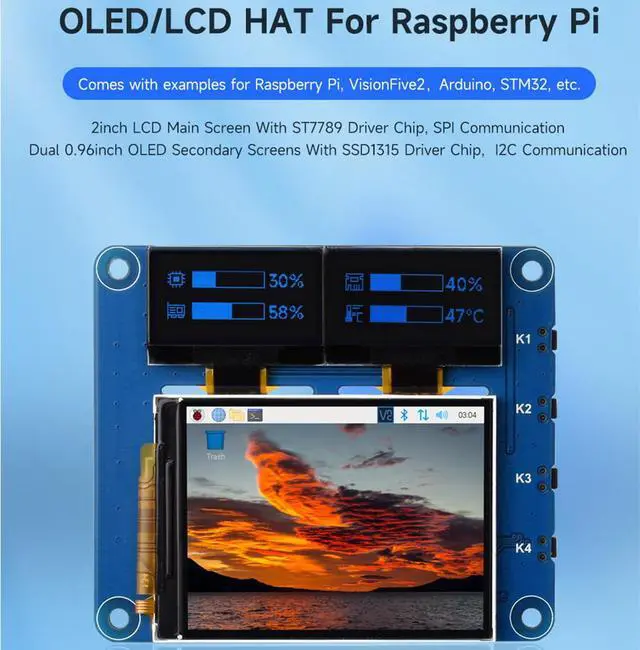

OLED/LCD HAT is compatible with Raspberry Pi Series Boards, Onboard 2inch IPS LCD Main Screen and Dual 0.96 inch Blue OLED Secondary Screens. Features 1. Compatible with Raspberry Pi
Series Boards: OLED/LCD HAT for Raspberry Pi, with standard Raspberry Pi 40PIN GPIO header, Compatible with Raspberry Pi Series Boards. 2. Onboard 2inch IPS

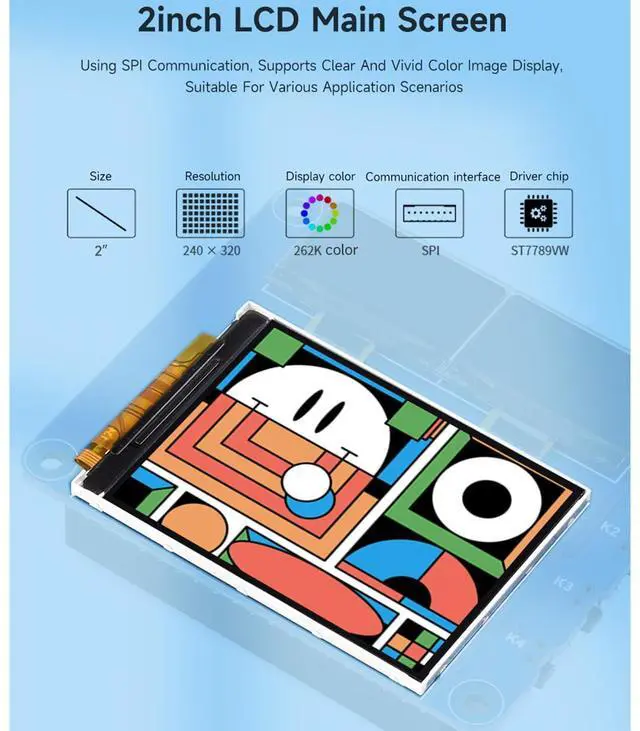

LCD Main Screen: 2inch IPS LCD Main Screen with built in ST7789VW driver chip, wide viewing angle, supports 262K color display, 240×320 resolution. Using SPI interface communication, supports clear and vivid color image display, suitable for various application scenarios 3. Onboard Dual 0.96 inch

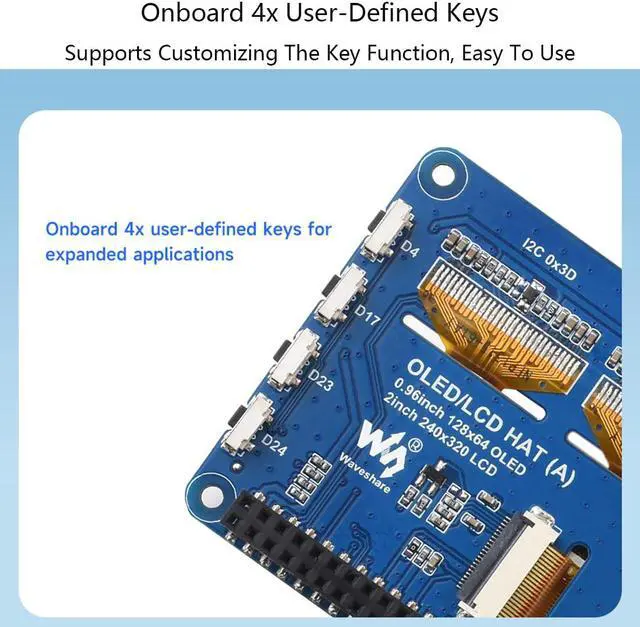

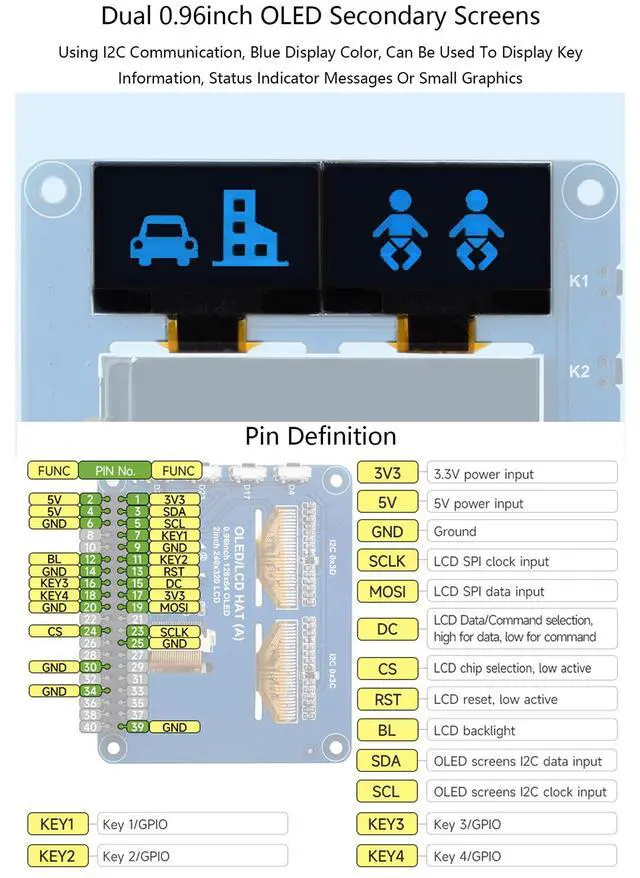

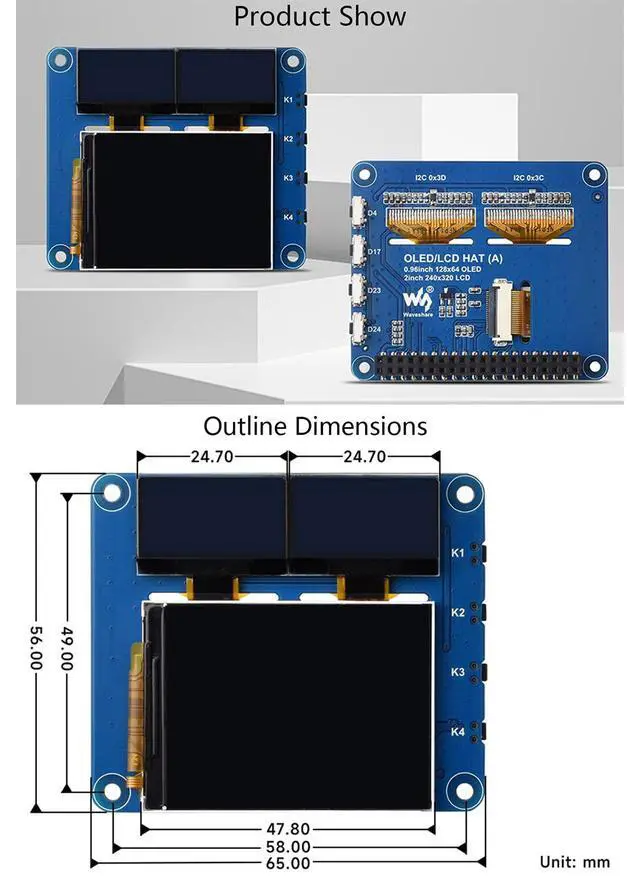

OLED Secondary Screens: Dual 0.96 inch OLED with built in SSD1315 driver chip, 128×64 resolution, using I2C interface communication, blue display color, can be used to display key informations, status indicator messages or small graphics 4. Onboard 4x user-defined keys for extended applications. Easy to use 5. Comes with online development resources and manual (Raspberry Pi/VisionFive2/Arduino/STM32, etc. ) Parameter Name--Parameters Power Supply -- 3.3V Screen Type --IPS Control Driver --SSD1315( 0.96 inch), ST7789 (2inch) Communication Interface--4-wire SPI, I2C Resolution --240 (V) x 320 (H) RGB, 160 (H) RGB x 80 (V) Dimensions-- 65.00 x 56.00 (mm) Online Development Resources /User

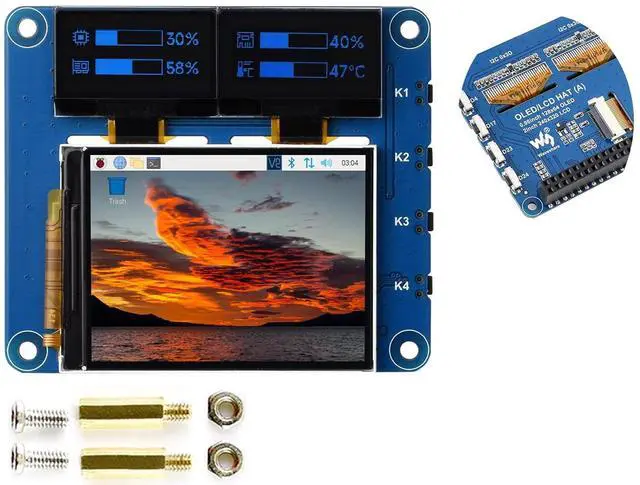

Manual: //bit. ly/45k7DWF Package Content OLED/LCD HAT (A) x1 Standoffs pack x1
