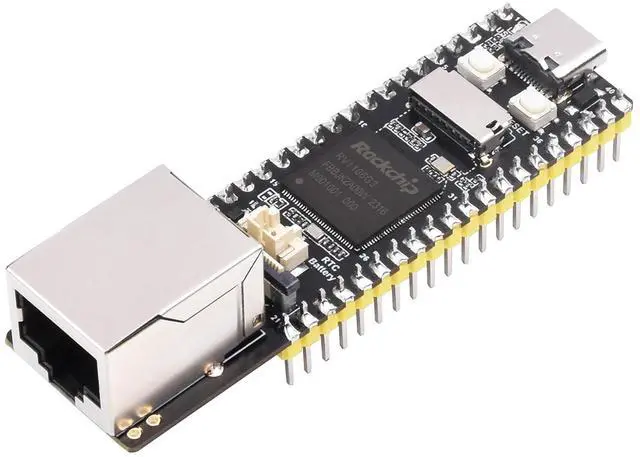

Luck-Fox Pico Max M RV1106G3 Linux Micro Development Board with Pre-Soldered Header, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors (with 256MB DRAM DDR3L)

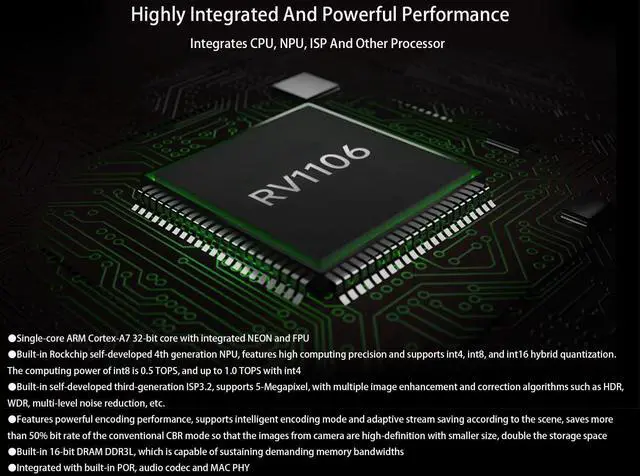

Product description Highly integrated and powerful performance. Integrates CPU, NPU, ISP and other processors Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G2 is 0.5 TOPS, and RV1106G3 is 1.0 TOPS Built-in self-developed third-generation ISP 3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc. Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths Integrated with built-in POR, audio codec and MAC PHY Luck-Fox Pico Mini A Luck-Fox Pico Mini B Luck-Fox Pico Plus Luck-Fox Pico Pro Luck-Fox Pico Max Luck-Fox Pico Ultra W Buying Options Add to Cart Add to Cart Add to Cart Add to Cart Buying Options Customer Reviews 4.6 out of 5 stars 4 4.9 out of 5 stars 12 4.6 out of 5 stars 20 4.6 out of 5 stars 49 4.6 out of 5 stars 49 4.5 out of 5 stars 4 Price no data $ 26.87 $26.

87 $ 27.83 $27. 83 $ 34.55 $34. 55 $ 41.27 $41. 27 no data Main Chip RV1103G1 RV1103G1 RV1103G1 RV1106G2 RV1106G3 RV1106G3 Memory 64MB 64MB 64MB 128MB 256MB 256MB NPU 0.5TOPS, supports int4, int8 and int16 0.5TOPS, supports int4, int8 and int16 0.5TOPS, supports int4, int8 and int16 0.5TOPS, supports int4, int8 and int16 1TOPS, supports int4, int8 and int16 1TOPS, supports int4, int8 and int16 ISP Input 4M @30fps (Max) Input 4M @30fps (Max) Input 4M @30fps (Max) Input 5M @30fps (Max) Input 5M @30fps (Max) Input 5M @30fps (Max) Default Storage TF card (Not included) SPI NAND FLASH (128MB) SPI NAND FLASH (128MB) SPI NAND FLASH (256MB) SPI NAND FLASH (256MB) EMMC (8GB) Features Onboard Type-C port, MIPI CSI Interface, GPIO, etc.

Onboard Type-C port, MIPI CSI Interface, GPIO, etc. Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, etc. Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, R TC batte-ry header, etc. Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, R TC batte-ry header, etc. Onboard W-i-F-i, PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, R TC batte-ry header, etc.
