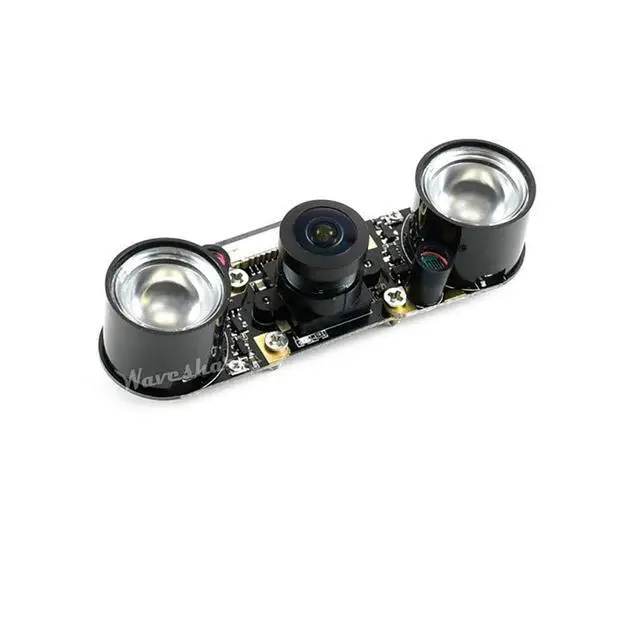

8MP IMX219-160IR Camera Compatible with NVIDIA Jetson Nano and Compute Module 3/3+,8 Megapixels Camera Module 160 Degree FOV Infrared Night Vision 3280×2464 Resolution

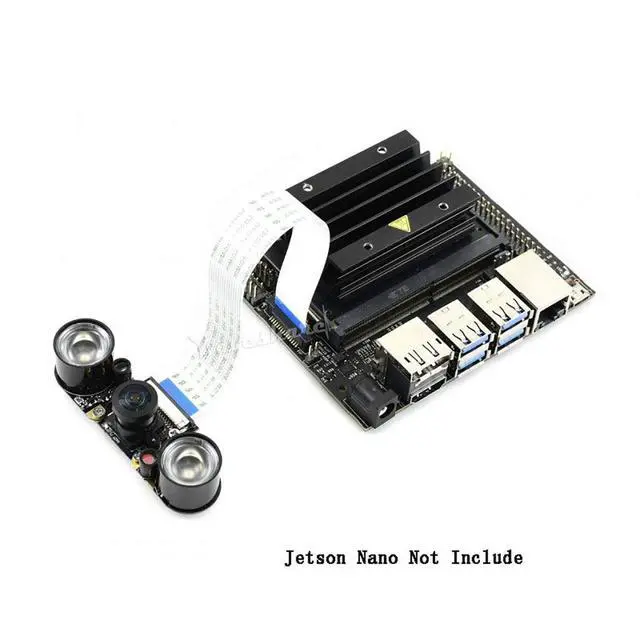

- Supports NVIDIA Jetson Nano Developer Kit and Raspberry Pi Compute Module 3/3+.(Note: Jetson Nano Developer Kit ,and CM 3/3+ are NOT included) Supports night vision when works with infrared LEDs.; 8 Megapixels. Sensor: IMX219. Resolution: 3280 × 2464. 160° FOV.; Lens specifications: CMOS size: 1/4inch. Aperture (F): 2.35. Focal Length: 3.15mm. Angle of View (diagonal): 160 degree. Distortion: <14.3%.; 4 screw holes. Used for attachment. Provides 3.3V power output. Supports connecting infrared LED and/or fill flash LED. Dimension: 25mm × 24mm.; Combined with the Jetson Nano AI computer, this camera suits for AI projects such as: Face recognition. Road mark detection. License plate recognition.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features Supports NVIDIA Jetson Nano Developer Kit, and Raspberry Pi Compute Module 3/3+, (Note: Jetson Nano Developer Kit, and CM 3/3+ are NOT included) Supports night vision when works with infrared LEDs 8
Megapixels Sensor: IMX219
Resolution: 3280 × 2464
Lens specifications: CMOS
size: 1/4inch
Aperture (F): 2.35
Focal Length: 3.15 mm Angle of
View (diagonal): 160 degree
Distortion: < 14.3 % 4 screw holes Used for attachment Provides 3.3V power output Supports connecting infrared LED and/or fill flash
LED Dimension: 25mm × 24mm Applications Combined with the Jetson Nano AI computer, this camera suits for
AI projects such as: Face recognition Road mark detection License plate recognition

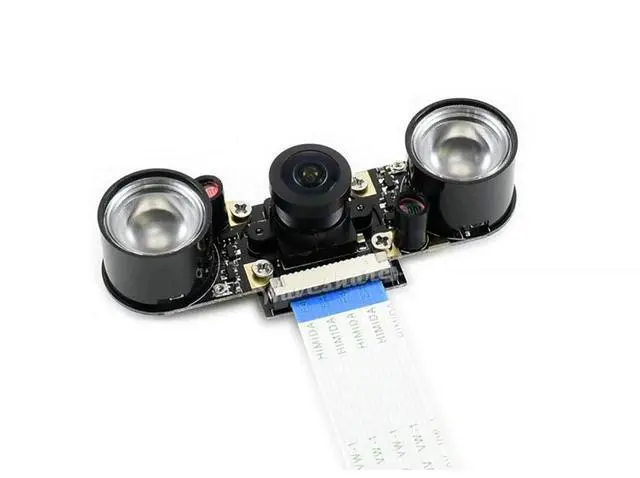

Development Resources Wiki: www. waveshare. com/wiki/IMX219-160IR_Camera PACKAGE CONTENT 1. IMX219-160IR Camera x1 2.2. Infrared LED Board (B) 2PCS x1 3.3. 15-pin FFC (opposite sides contact) x1
Note: 1. The included FFC is 16cm, if you need a longer cable, please
consider: Raspberry Pi Camera Cable FFC 60cm 2.2. Technical Service is provided, please send us Amazon message if you have any questions, thanks
Megapixels Sensor: IMX219
Resolution: 3280 × 2464
Lens specifications: CMOS
size: 1/4inch
Aperture (F): 2.35
Focal Length: 3.15 mm Angle of
View (diagonal): 160 degree
Distortion: < 14.3 % 4 screw holes Used for attachment Provides 3.3V power output Supports connecting infrared LED and/or fill flash
LED Dimension: 25mm × 24mm Applications Combined with the Jetson Nano AI computer, this camera suits for
AI projects such as: Face recognition Road mark detection License plate recognition
Development Resources Wiki: www. waveshare. com/wiki/IMX219-160IR_Camera PACKAGE CONTENT 1. IMX219-160IR Camera x1 2.2. Infrared LED Board (B) 2PCS x1 3.3. 15-pin FFC (opposite sides contact) x1
Note: 1. The included FFC is 16cm, if you need a longer cable, please
consider: Raspberry Pi Camera Cable FFC 60cm 2.2. Technical Service is provided, please send us Amazon message if you have any questions, thanks
