Industrial Isolated 8-ch RS485 Hub, Extend 8-ch RS485 Slave Ports via 1-ch RS485 Master Port,with Isolation and Relay,Support Rail-Mount, 300~460800bps (Self-Adaptive) Baud Rate, DC 9~24V

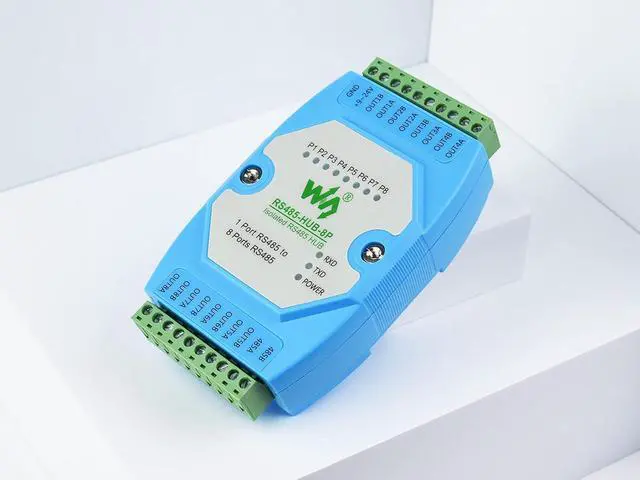

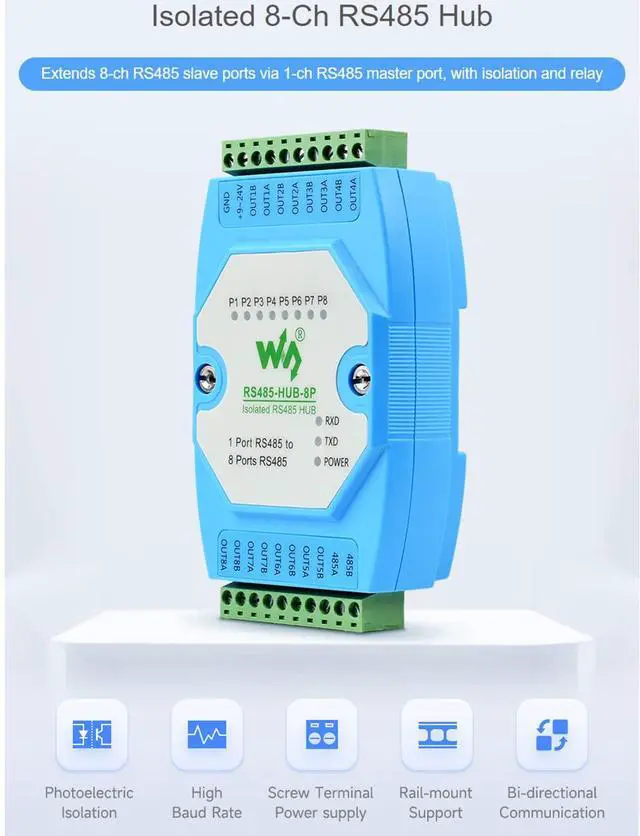

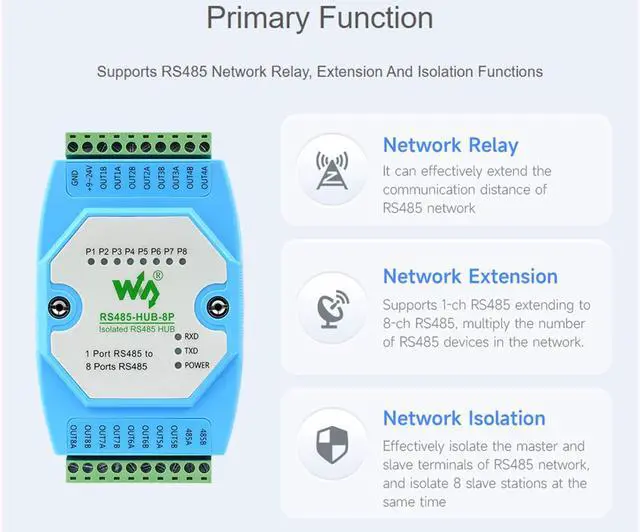

Overview RS485-HUB-8P is an industrial grade isolated RS485 hub that can expand 8-ch RS485 slave ports through 1-ch RS485 master port, can realize relay, extension and isolation functions of RS485 network, with screw terminal for power input. Rail-mount case design, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring... Features
1.

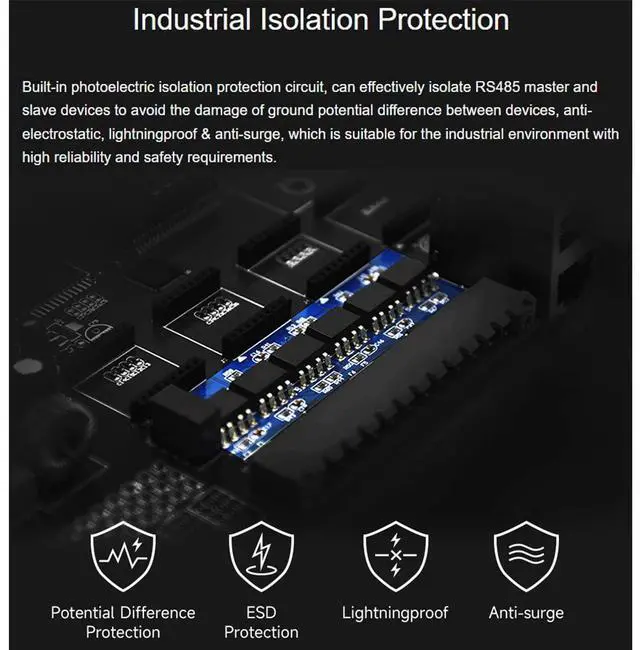

Industrial isolation protection: Built-in photoelectric isolation protection circuit, can effectively isolate RS485 master and slave devices to avoid the damage of ground potential difference between devices, anti-electrostatic, lightningproof & anti-surge, which is suitable for the industrial environment with high reliability and safety requirements.
2.

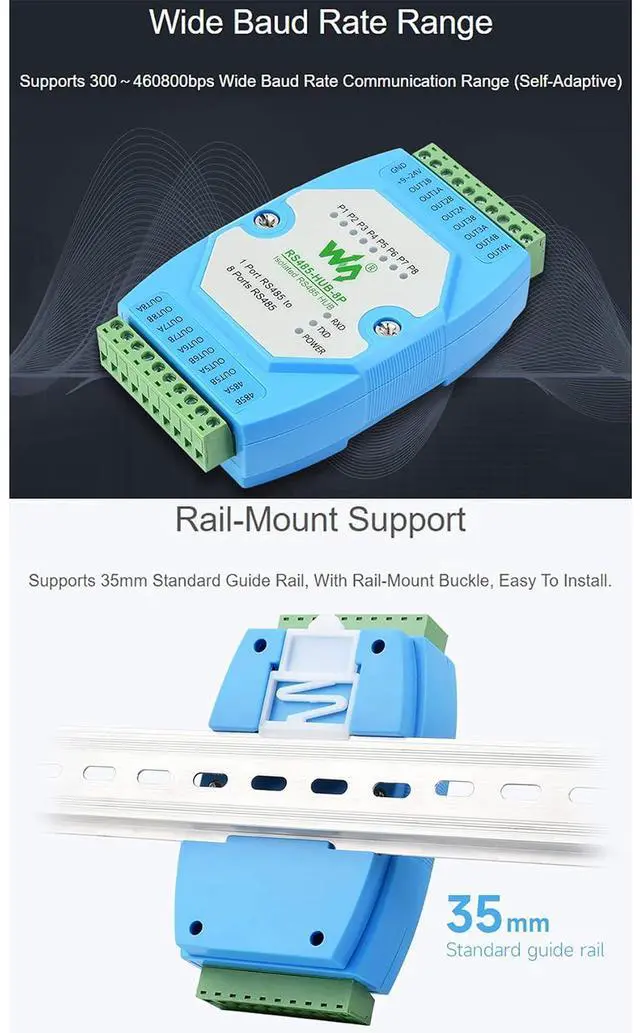

Wide baud rate range: Supports 300460800bps wide baud rate communication range (self-adaptive)
3.
Rail-Mount Support: Supports 35mm standard guide rail, with rail-mount buckle, easy to install.

Specifications

Interface standard: Compliant with RS485 standard

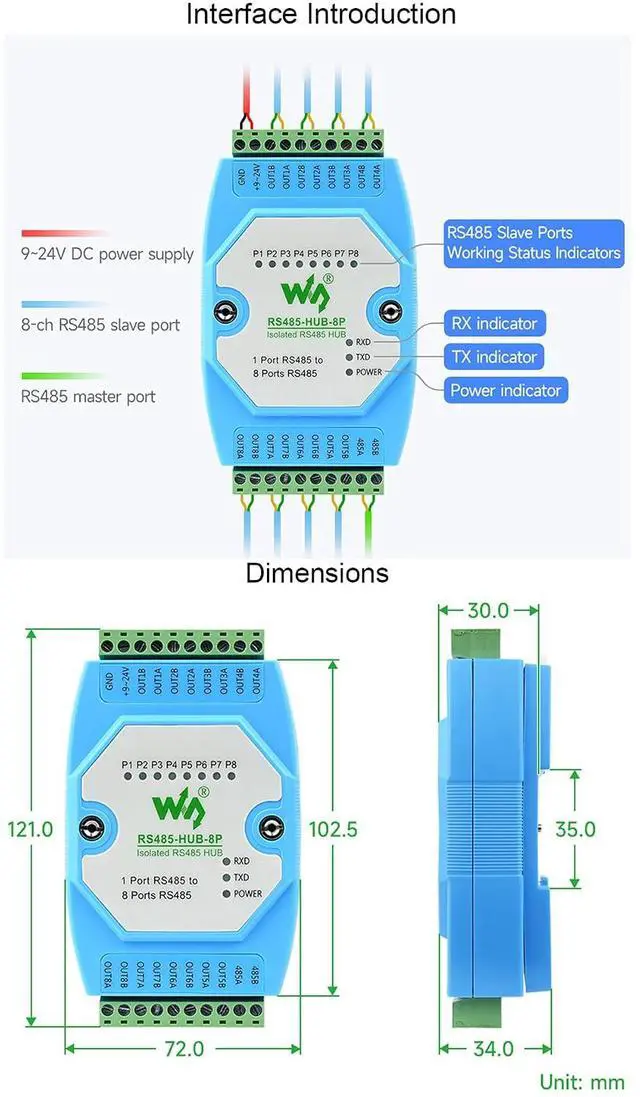

Physical interface: RS485 screw terminals
Baud rate: 300~460800bps
(self-adaptive) supported nodes: Each RS485 port supports up to 32 nodes
Communication distance: 1200m (9600bps), the higher rate the shorter distance

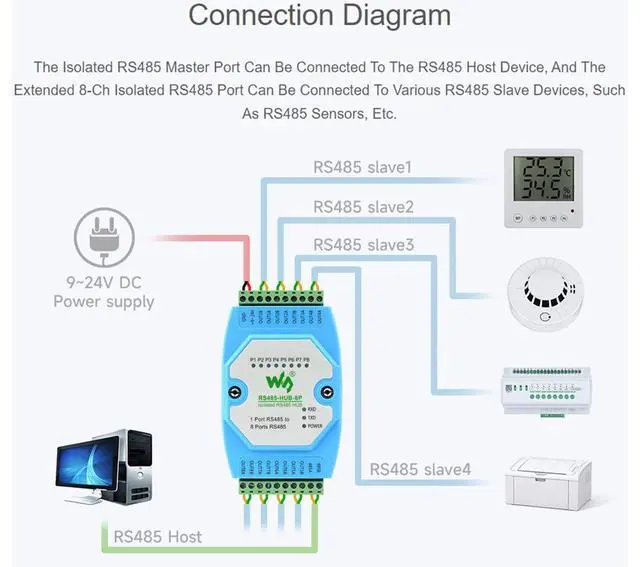

Operating mode: RS485 two-wire (A, B), half-duplex transparent transmission
Power supply: DC 9~24V
Operating temperature: -45 ~ +85
Environment humidity: <95%RH
Transmission medium: Normal parallel cables/twisted-pair cables Online Development Resources /User
Manual: // bit. ly/3qyi3U3 Package Content RS485-HUB-8P x1
