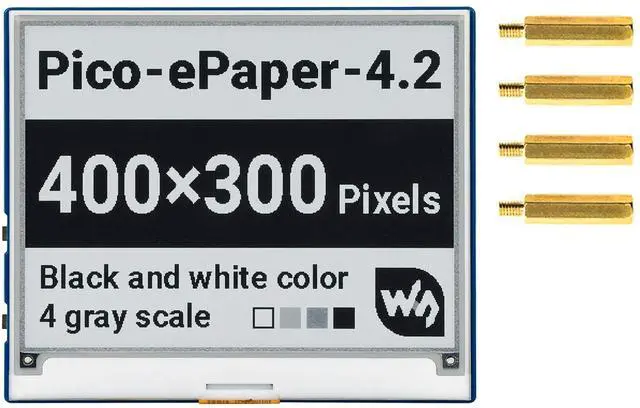

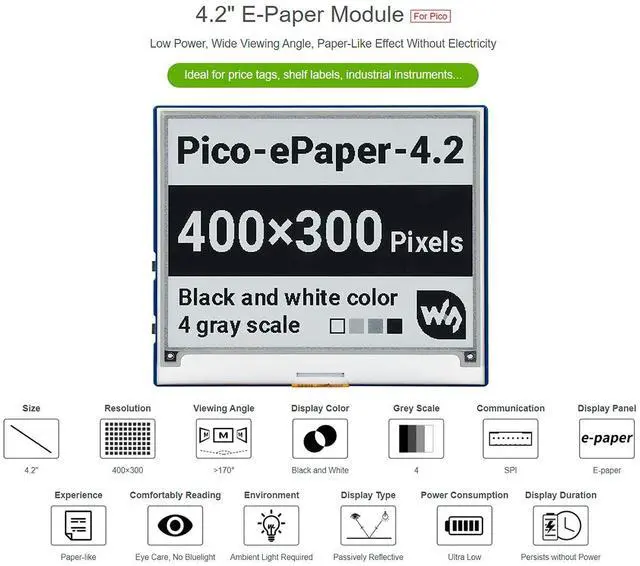

4.2inch E-Paper Display Module for Raspberry Pi Pico, 400×300 Resolution E-Ink Screen, Black/White Two-Color, 4 Grayscale, SPI Interface, Low Power, Wide Viewing Angle
- 4.2inch e-Paper E-Ink Display Module for Raspberry Pi Pico, SPI interface, requires minimal IO pins. Low power, wide viewing angle, paper-like effect without electricity; No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Onboard voltage translator, compatible with 3.3V / 5V MCUs. 2x user buttons for easy interacting.; operating voltage: 3.3V/5V, display color: black, white, resolution : 400×300 pixels , grey scale : 4, interface: 3-wire SPI, 4-wire SPI.; viewing angle: >170°. full refresh time : 4s. outline dimensions: 93.5 × 78.5mm . display size: 84.8 × 63.6mm.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

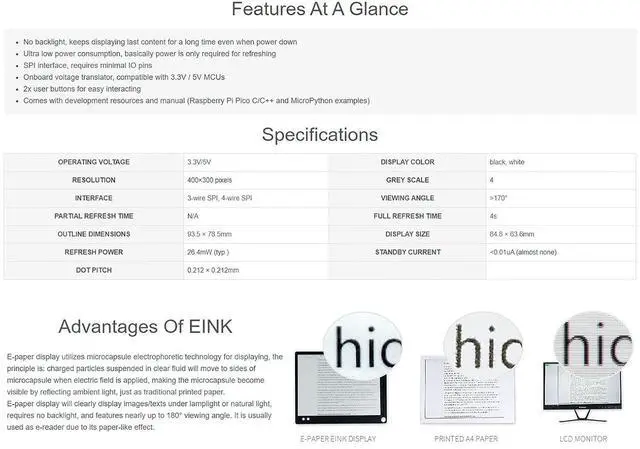

Operating voltage: 3.3V /5V
Display color: black, white
Resolution: 400 x 300 pixels
Grey scale: 4

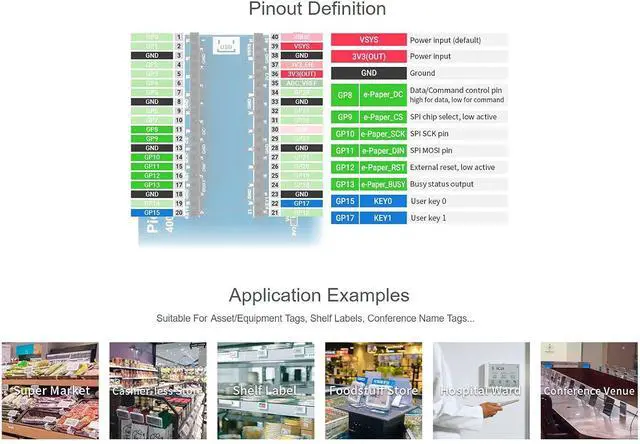

Interface: 3-wire SPI, 4-wire
SPI Viewing angle: >170°
Partial refresh time: N/A
Full refresh time: 4s

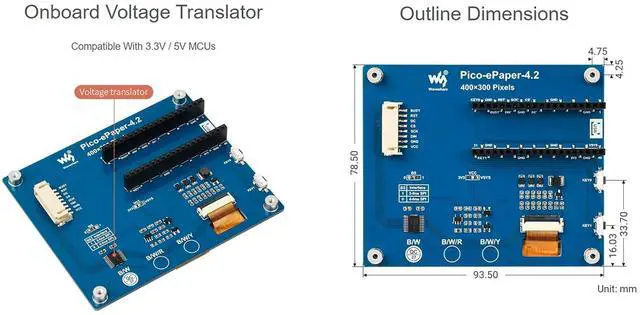

Outline dimensions: 93.5 x 78.5 mm
Display size: 84.8 x 63.6 mm
Refresh power: 26.4 mW (typ. )
Standby current: < 0.01 uA (almost none)
Dot Pitch: 0.212 x 0.212 mm Package Content Pico-ePaper- 4.2 x1 PH 2.0 8PIN wire 20cm x1 Standoff pack x1
Display color: black, white
Resolution: 400 x 300 pixels
Grey scale: 4
Interface: 3-wire SPI, 4-wire
SPI Viewing angle: >170°
Partial refresh time: N/A
Full refresh time: 4s
Outline dimensions: 93.5 x 78.5 mm
Display size: 84.8 x 63.6 mm
Refresh power: 26.4 mW (typ. )
Standby current: < 0.01 uA (almost none)
Dot Pitch: 0.212 x 0.212 mm Package Content Pico-ePaper- 4.2 x1 PH 2.0 8PIN wire 20cm x1 Standoff pack x1
