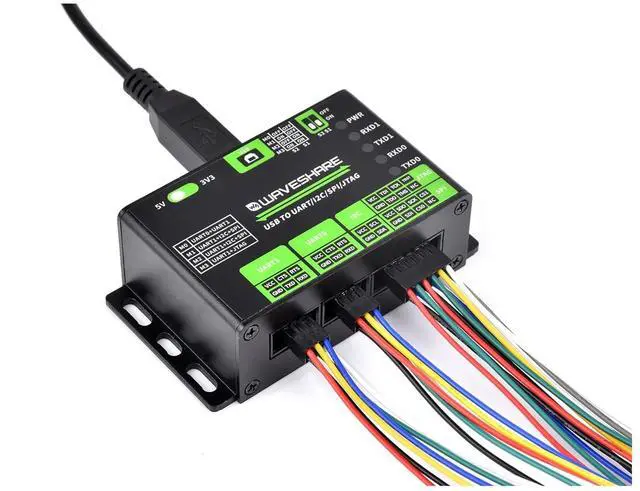

USB To UART/I2C/SPI/JTAG Converter Board with Aluminum Alloy Case, Aceess to Control Various UART/ I2C/SPI/JTAG Devices via Computer, Support Win7/8/8.1/10/11, Linux, etc. Compatible with 3.3V and 5V

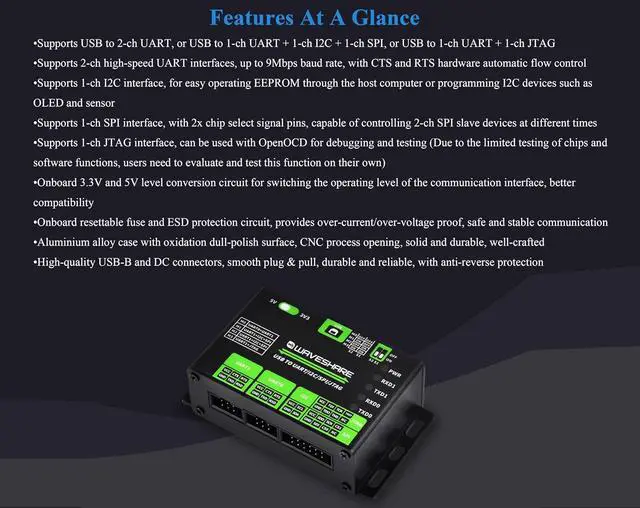

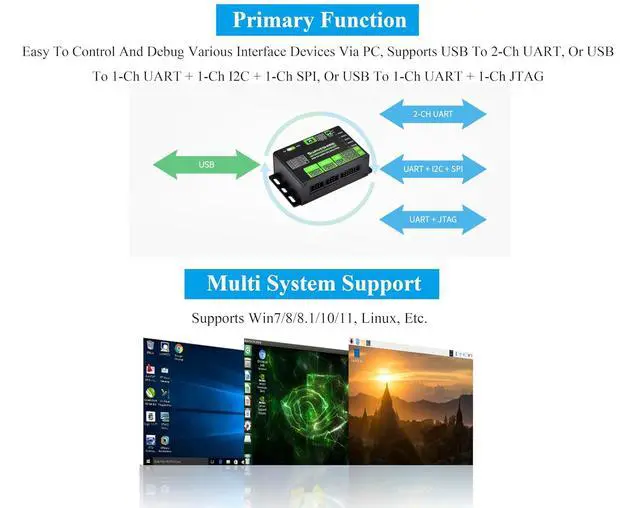

- This is USB To UART/I2C/SPI/JTAG Converter with Aluminum Alloy Case. Supports Multiple Interfaces. Easy to control and debug various interface devices via PC, Supports USB to 2-ch UART, or USB to 1-ch UART + 1-ch I2C + 1-ch SPI, or USB to 1-ch UART + 1-ch JTAG; Supports 2-ch high-speed UART interfaces, up to 9Mbps baud rate, with CTS and RTS hardware automatic flow control. Supports 1-ch I2C interface, for easy operating EEPROM through the host computer or programming I2C devices such as OLED and sensor; Supports 1-ch SPI interface, with 2x chip select signal pins, capable of controlling 2-ch SPI slave devices at different times; Supports 1-ch JTAG interface, can be used with OpenOCD for debugging and testing (Due to the limited testing of chips and software functions, users need to evaluate and test this function on their own); Onboard 3.3V and 5V level conversion circuit for switching the operating level of the communication interface, better compatibility. Onboard resettable fuse and ESD protection circuit, provides over-current/over-voltage proof, safe and stable communication
+
+
