PoE HAT for Raspberry Pi 5/Compute Module 5, Power Over Ethernet HAT for Pi 5/CM5, 5V 5A 25W, IEEE 802.3af/at-Compliant Network Standard, Pi 5 PoE HAT Compatible with Raspberry Pi 5 Official Case

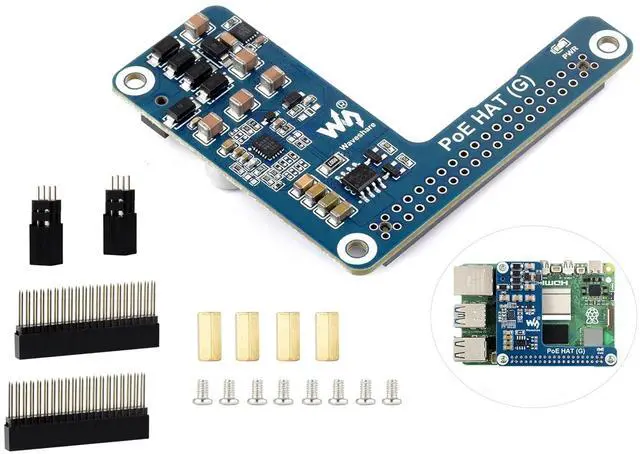

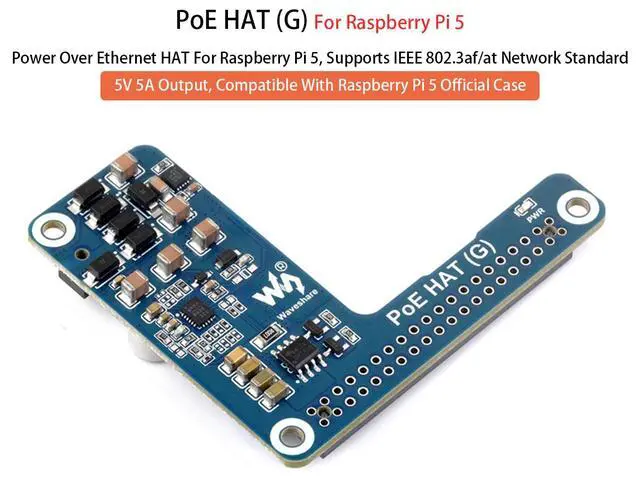

Product description PoE HAT (G) for Raspberry Pi 5, Suitable for Raspberry Pi 5, Supports IEEE 802.3 af/at Network Standard, 5V 5A Output. Features at a glance The PoE HAT (G) is an IEEE 802.3 af/at-compliant PoE (Power Over Ethernet) HAT for Raspberry Pi
5. By using with a PoE router or switch that supports the IEEE 802.3 af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable. Compatible With Raspberry Pi 5 Official Case. (Pi 5 Official Case is NOT included in this kit) Standard Raspberry Pi 40PIN GPIO header PoE capabilityIEEE 802.3 af/at-compliant Onboard original IC solution for more stable PoE power performance Adopts non-isolated switched-mode power supply (SMPS) Compact and easy to assemble

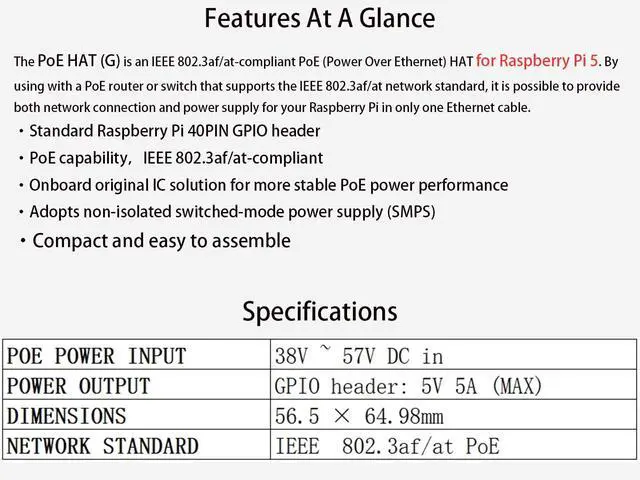

Specifications

PoE Power Input 38V ~ 57V DC in
Power Output GPIO header: 5V 5A (MAX) Network Standard IEEE 802.3 af/at PoE Dimensions 56.5 × 64.98 mm Suitable for Raspberry Pi 5 & Compatible With Raspberry Pi 5 Official Case

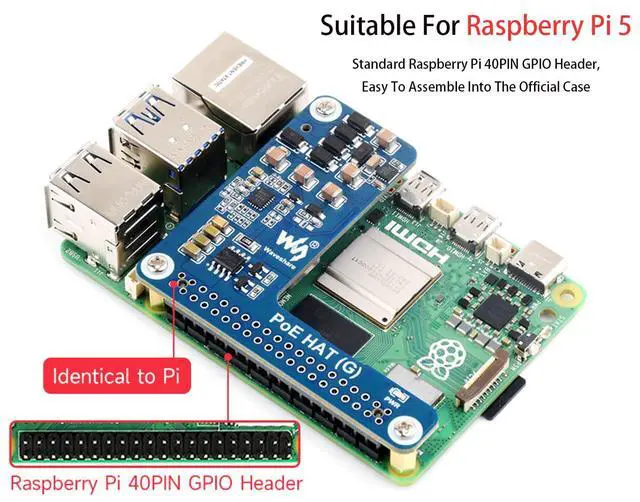

1. Suitable for Raspberry Pi 5, Standard Raspberry Pi 40PIN GPIO header, easy to assemble into the Pi 5 Official Case

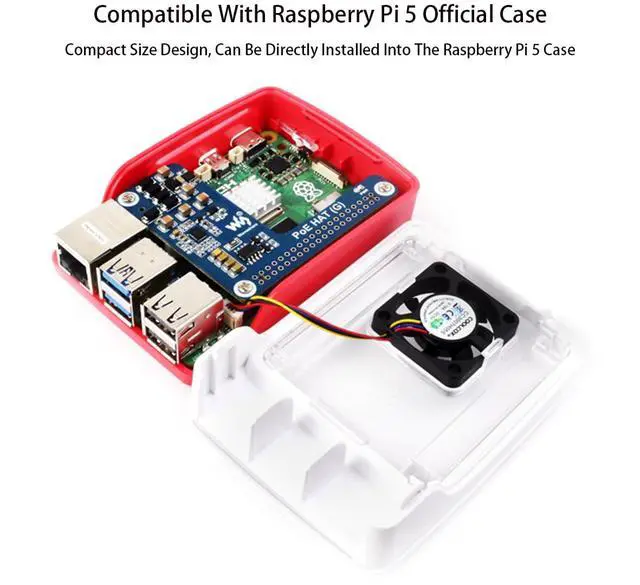

2. Compatible With Raspberry Pi 5 Official Case, Compact Size Design, Can Be Directly Installed Into The Raspberry Pi 5

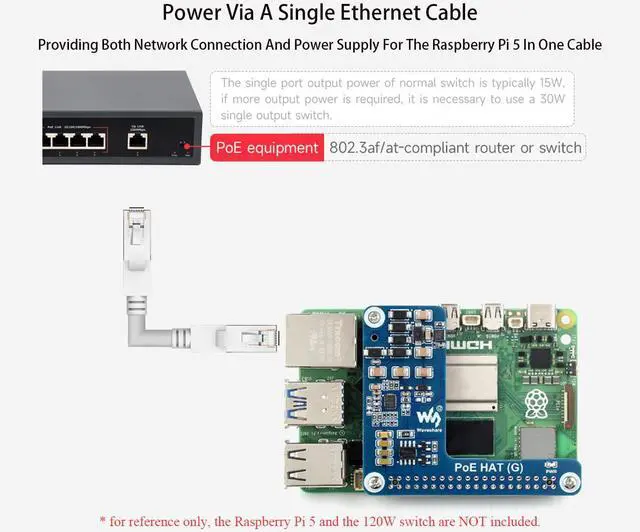

Case (Note: Pi 5 Official Case is NOT included in this kit) Power Over Ethernet, providing both network connection and power supply for the Raspberry Pi 5 in one cable Application Example--can use an Ethernet cable with PoE function to power the Raspberry Pi directly How to Install & Outline Dimensions PoE HAT (F) PoE HAT (E) PoE HAT (D) PoE HAT (C) PoE HAT (B) PoE HAT (G) Add to Cart Add to Cart Buying Options Add to Cart Add to Cart Add to Cart Customer Reviews 4.2 out of 5 stars 55 4.2 out of 5 stars 121 4.0 out of 5 stars 8 4.0 out of 5 stars 20 4.2 out of 5 stars 76 3.3 out of 5 stars 35 Price $ 28.79 $28. 79 $ 20.15 $20. 15 no data $ 26.87 $26. 87 $ 28.79 $28. 79 $ 22.07 $22. 07 Supported Pi for Raspberry Pi 5 for Raspberry Pi 3B+/4B for Raspberry Pi 3B+/4B for Raspberry Pi 3B+/4B for Raspberry Pi 3B+/4B for Raspberry Pi 5 Network Standard IEEE 802.3 af/at PoE IEEE 802.3 af PoE IEEE 802.3 af PoE IEEE 802.3 af/at PoE 802.3 af PoE IEEE 802.3 af/at PoE PoE Power Input 37V ~ 57V DC in 37V ~ 57V DC in 37V ~ 57V DC in 37V ~ 57V DC in 37V ~ 57V DC in 38V ~ 57V DC in PoE
Power Output GPIO header: 5V 4.5A (MAX); 2P header: 12V 2A (MAX) 5V 2.5A DC out 5V 2.5A DC out
USB-A: 5V 4A (MAX); 2P header: 12V 2A (MAX) 5V 2.5A DC out
GPIO header: 5V 5A (MAX) Feature with Metal Heatsink, High Power Compatible with Raspberry Pi 3B+/4B Official Case, Mini Body Compatible With Pi 3B+/4B Official Case High Power with OLED display compact and easy to assemble, high power, tailored for RPi 5 official case
