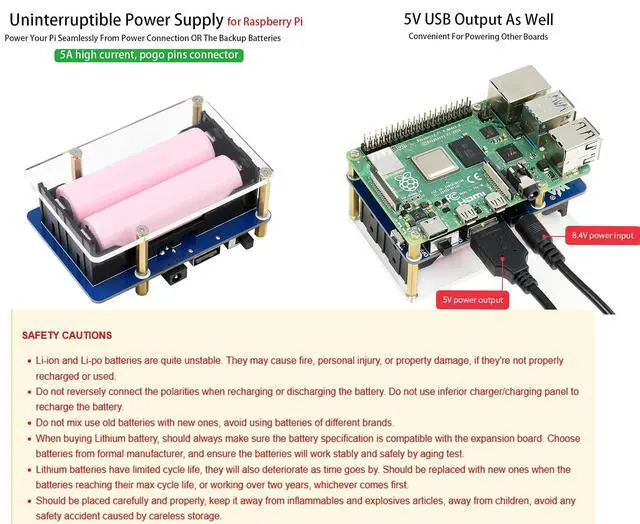

Uninterruptible Power Supply UPS HAT for Raspberry Pi 5/4B/3B+/3B, Support Power Supply Charge and Power Output at The Same Time, Provides Power Supply via Pogo Pins, with 5V USB Output

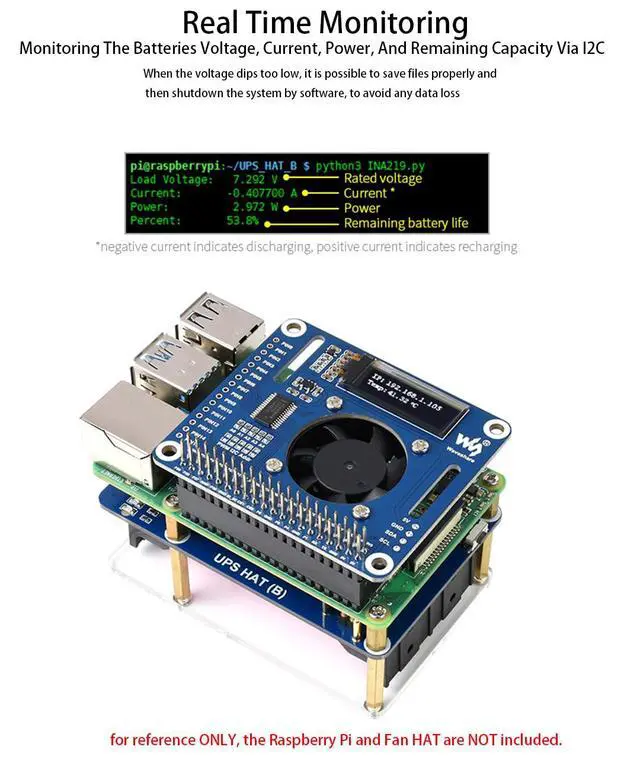

UPS HAT (B) is compatible with Raspberry Pi 4B/ 3B+, 5A high current, Powering the Raspberry Pi via pogo pins, without using any GPIO resource. Power your Pi seamlessly from power connection OR the backup batteries Features Designed for Raspberry Pi series, compatible with Raspberry Pi 4B/ 3B+, etc. I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time

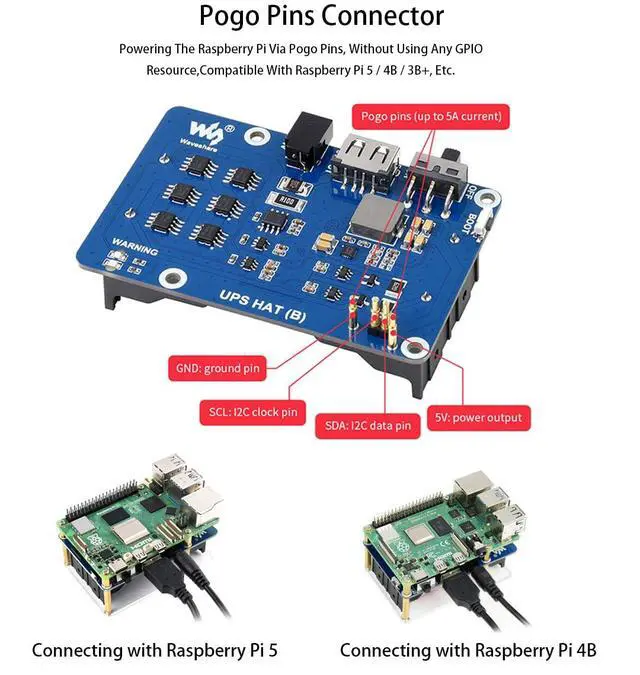

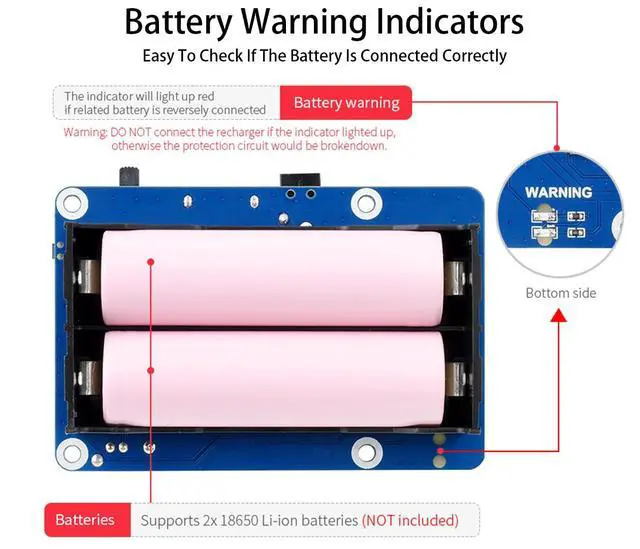

Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable Onboard 5V regulator, up to 5A continuous output current, more sufficient power source for Raspberry Pi 5V USB output, convenient for powering other boards Batteries warning indicators, easy to check if the battery is connected correctly Comes with Online Development Resources and Manual, Please send us Amazon message to get it if necessary. Powering the Raspberry Pi via Pogo Pins Powering the Raspberry Pi via pogo pins, without using any GPIO resource, compatible with Raspberry Pi 5 / 4B / 3B+, etc.

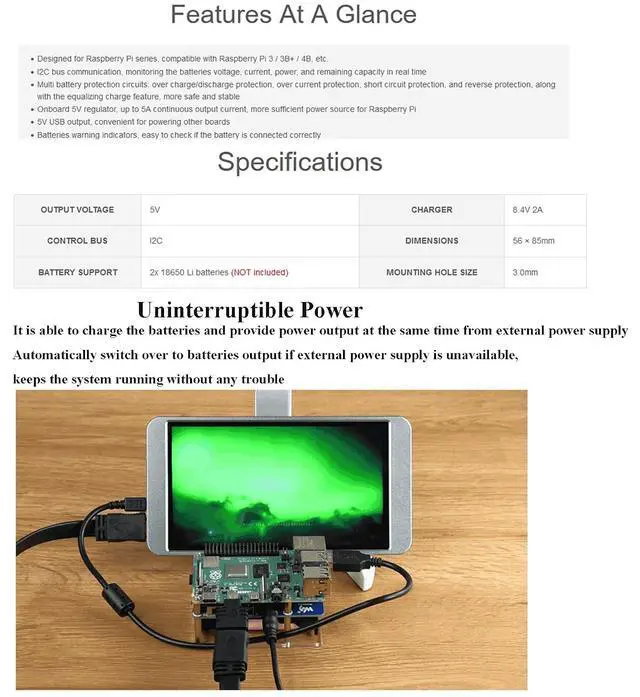

Specifications

Output voltage: 5V
Charger: 8.4V 2A
Control bus: I2C
Battery supported: 18650 Li batteries (NOT included)

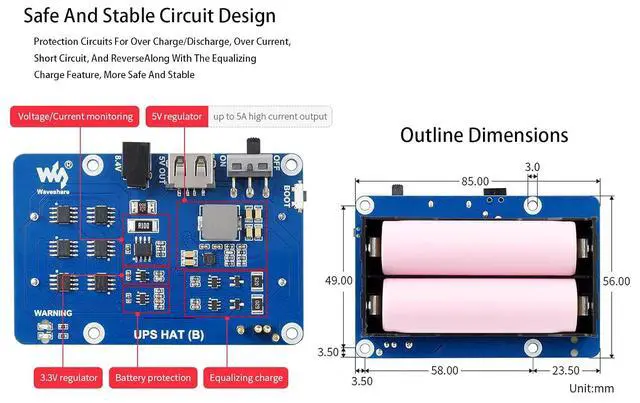

Dimensions: 56 × 85mm
Mounting hole: 3.0 mm
Note:
1. The 18650 batteries are NOT included

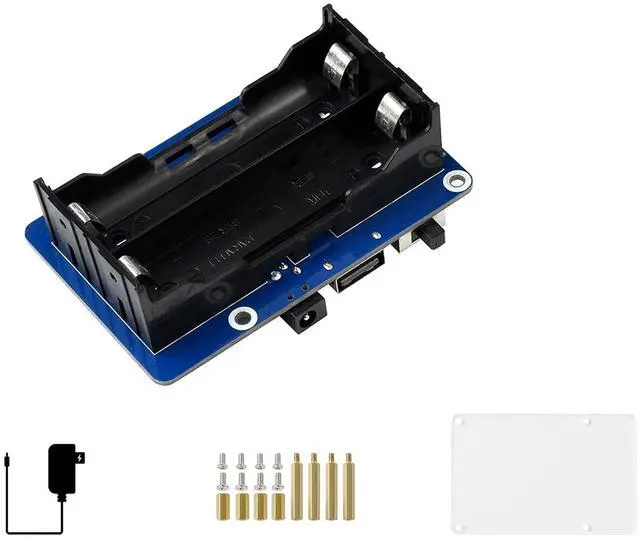

2. Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported. Package Content UPS HAT (B) x1 8.4V battery charger x1 Acrylic protection panel x1 Screws pack x1
