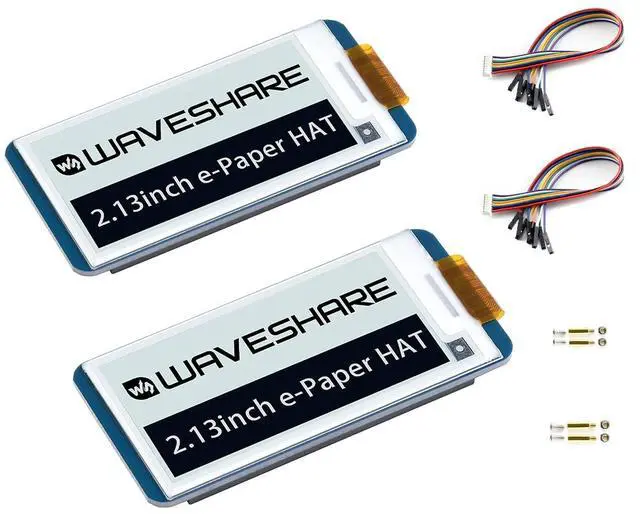

2PCS 2.13inch E-Ink Display HAT V4 Version, Black/White Two-Color 250x122 Pixel E-Paper for Raspberry Pi 5/4B/3B+/3B/2B/Zero W/WH/Zero 2 W/Jetson Nano SPI Interface, Support Partial Refresh
Limited time offer, ends 07/26 By EmpressTech
- This is 2.13inch E-Ink display HAT V4 with Raspberry Pi 40PIN GPIO extension header, compatible with Raspberry Pi series boards (includes Raspberry Pi 5/4B/3B+/3B/2B/Zero W/WH/Zero 2 W,etc. ) and compatible with Jetson Nano.; 250x122 resolution, Black and White Two Display colors, with embedded controller, communicating via SPI interface, supports partial refresh.; No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.; SPI interface, for connecting with controller boards likeArduino/STM32, etc. Onboard voltage translator, compatible with 3.3V / 5V MCUs.; Comes with Comes with Online Development Resources and Manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32). PLEASE READ THE ONLINE INFORMATION CAREFULLY BEFORE USING IT.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

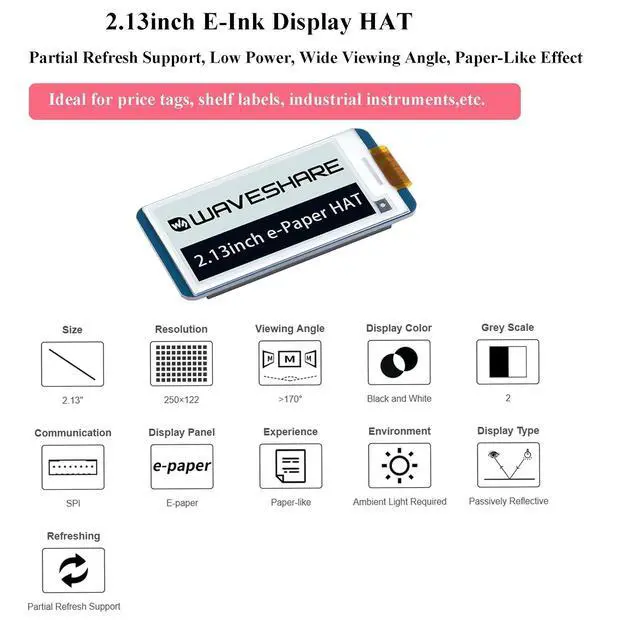

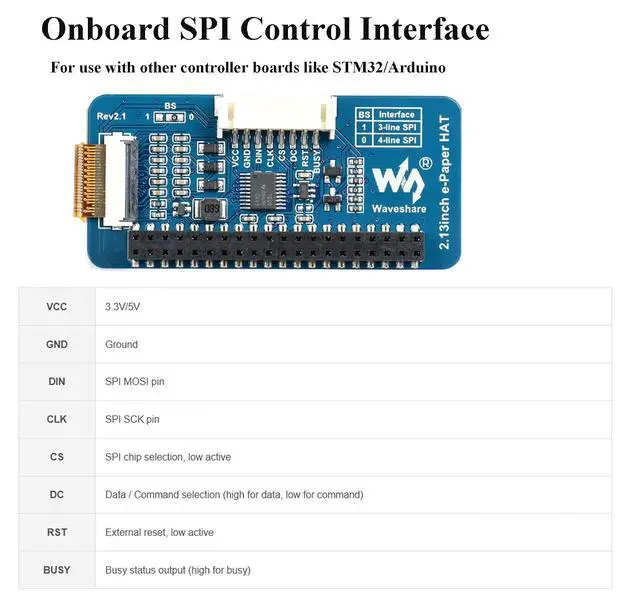

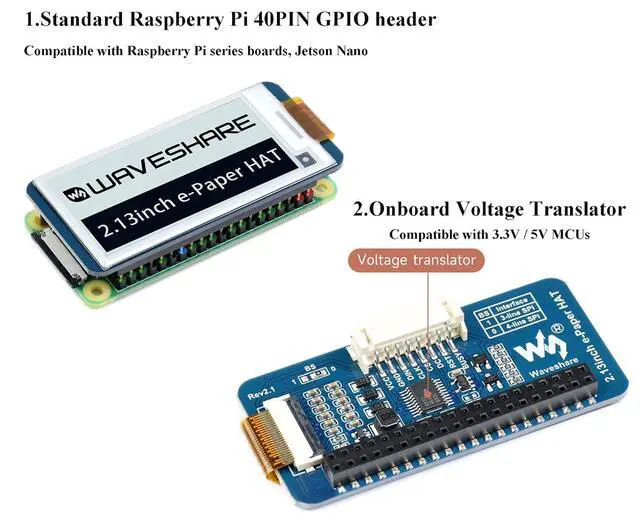

Product description 250x122, 2.13 inch E-Ink display HAT for Raspberry Pi, SPI interface Features at a glance No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano SPI interface, for connecting with controller boards like Arduino/STM32, etc. Onboard voltage translator, compatible with 3.3V / 5V MCUs Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

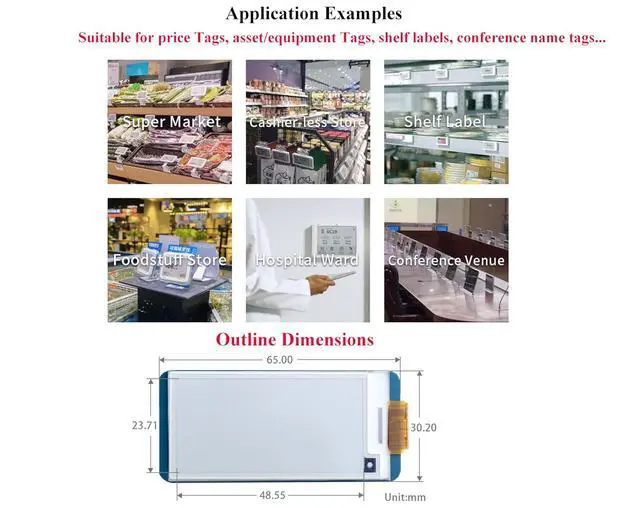

) Standby Current <0.01uA (almost none) Viewing Angle > 170° Outline Dimensions 65 × 30.2 mm Display Size 48.55 × 23.71 mm Dot Pitch 0.194 × 0.194 mm 2.13 inch e-Paper HAT 2.13 inch e-Paper HAT (B) 2.13 inch e-Paper HAT+ 2.7 inch e-Paper HAT 7.5 inch e-Paper HAT Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 584 4.2 out of 5 stars 19 4.9 out of 5 stars 19 4.5 out of 5 stars 48 4.4 out of 5 stars 38 Price $ 23.03 $23.
03 $ 22.07 $22. 07 $ 25.91 $25. 91 $ 26.87 $26. 87 $ 67.19 $67. 19 Size 2.13 inch 2.13 inch 2.13 inch 2.7 inch 7.5 inch Resolution 250×122 250×122 250×122 264×176 800×480 Display Color black, white red, black, white black, white black, white black, white Partial Refresh no data Grey Scale 2 2 2 4 2 Full Refresh Time (s) 2 15 2 6 5 Display Size (mm) 48.55 × 23.70 48.55 × 23.70 48.55 × 23.70 57.29 × 38.19 158.18 × 118.64 Outline Dimension (mm) 65.0 × 30.2 65.0 × 30.2 65.0 × 30.5 85.0 × 56.0 170.2 × 111.2 Interface SPI SPI SPI SPI SPI

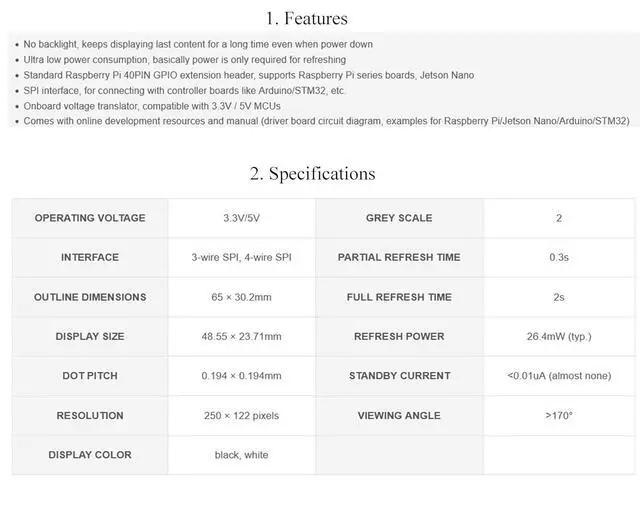

Specifications
Operating Voltage 3.3V /5V Interface 3-wire SPI, 4-wire SPI Resolution 250 × 122 pixels Display Color black, white Grey Scale 2 Partial Refresh Time 0.3 s Full Refresh Time 2s Refresh Power 26.4 mW (typ.) Standby Current <0.01uA (almost none) Viewing Angle > 170° Outline Dimensions 65 × 30.2 mm Display Size 48.55 × 23.71 mm Dot Pitch 0.194 × 0.194 mm 2.13 inch e-Paper HAT 2.13 inch e-Paper HAT (B) 2.13 inch e-Paper HAT+ 2.7 inch e-Paper HAT 7.5 inch e-Paper HAT Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 584 4.2 out of 5 stars 19 4.9 out of 5 stars 19 4.5 out of 5 stars 48 4.4 out of 5 stars 38 Price $ 23.03 $23.
03 $ 22.07 $22. 07 $ 25.91 $25. 91 $ 26.87 $26. 87 $ 67.19 $67. 19 Size 2.13 inch 2.13 inch 2.13 inch 2.7 inch 7.5 inch Resolution 250×122 250×122 250×122 264×176 800×480 Display Color black, white red, black, white black, white black, white black, white Partial Refresh no data Grey Scale 2 2 2 4 2 Full Refresh Time (s) 2 15 2 6 5 Display Size (mm) 48.55 × 23.70 48.55 × 23.70 48.55 × 23.70 57.29 × 38.19 158.18 × 118.64 Outline Dimension (mm) 65.0 × 30.2 65.0 × 30.2 65.0 × 30.5 85.0 × 56.0 170.2 × 111.2 Interface SPI SPI SPI SPI SPI
