2.23inch OLED Display HAT, 128×32 Pixels SPI/I2C Interface Embed SSD1305 Driver for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH and Jetson Nano

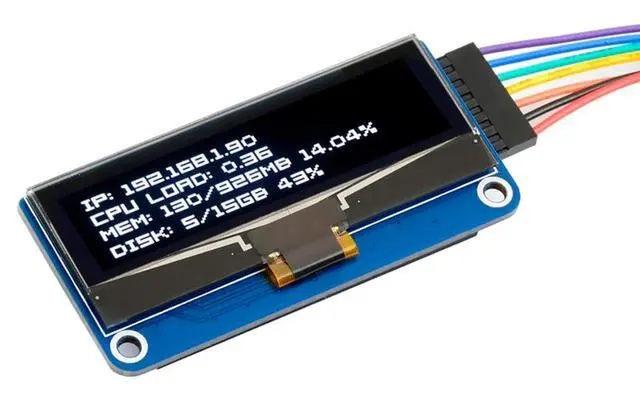

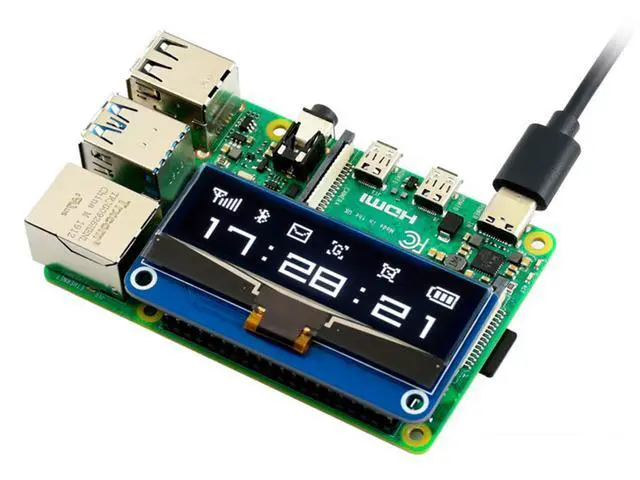

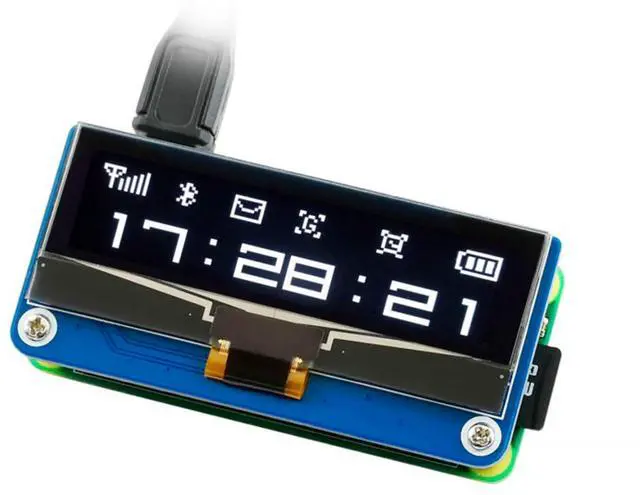

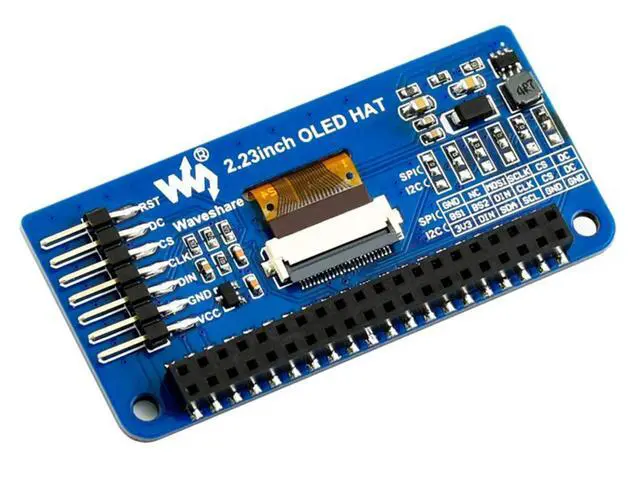

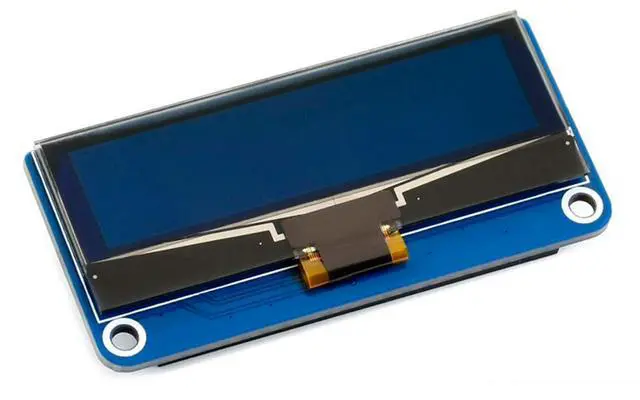

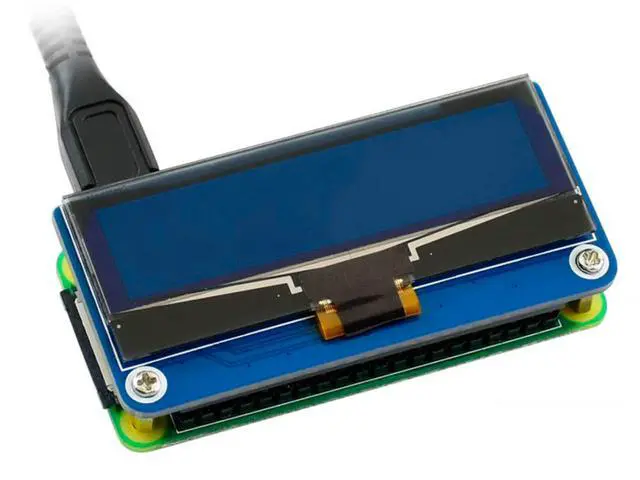

This is an OLED display HAT for Raspberry Pi, 2.23inch diagonal, 128×32 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface.Trying to add a control interface for your Pi? This compact display would be the ideal choice.; Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano; Optional interfaces: SPI (default), or I2C, configured via onboard resistor; Driver: SSD1305.Interface: SPI / I2C.Display size: 2.23inch diagonal.Display color: white.Resolution: 128×32.Viewing angle: >160°.Power supply voltage: 3.3V/5V.Logic level: 3.3V.; Brings control pins for host boards like Arduino/STM32. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Overview This is an OLED display HAT for Raspberry Pi, 2.23 inch diagonal, 128×32 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface. Trying to add a control interface for your Pi? This compact display would be the ideal choice. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Optional interfaces: SPI (default), or I2C, configured via onboard resistor Brings control pins for host boards like Arduino/STM32 Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Driver: 1305
Interface: SPI / I2C
Display size: 2.23 inch diagonal
Display color: white
Resolution: 128x32
Viewing angle: >160°
Power supply voltage: 3.3V /5V
Logic level: 3.3V Package Content 2.23 inch OLED HAT x1 RPi screws pack (2pcs) x1
