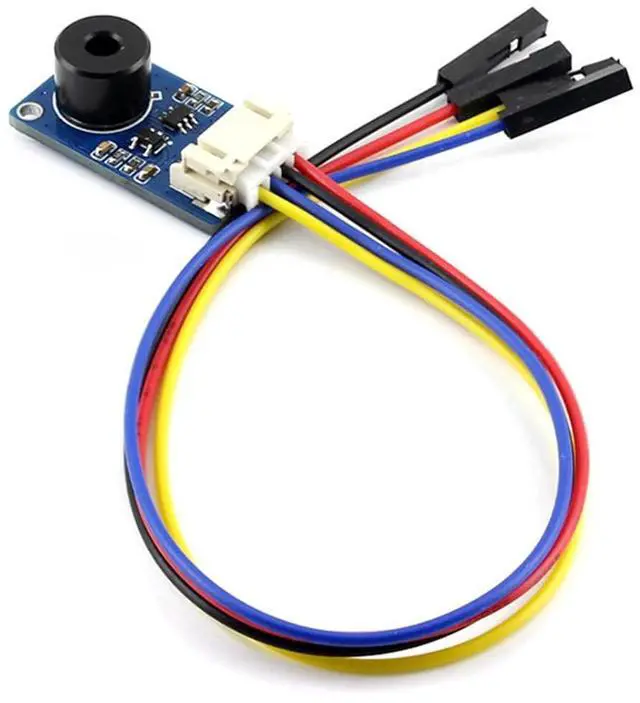

Contact-Less Infrared Temperature Sensor Module, MLX90614ESF-BCC, Measures Temperature Without Touching, High Precision High Resolution Fast Response
- Contact-less Infrared Temperature Sensor. Measures the surface temperature of an object without touching it, depending on the emitted IR waves of the target. Also measures the average temperature over an area.; Contact-less, high precision, high resolution, fast response. Calibrated before delivery, with gradient temperature compensation.; Works with 3.3V/5V MCU system directly, thanks to the built-in level translation. Power: 3.3V ~ 5V. Measuring range (area): 40°C ~ 85 °C. Measuring range (object): -70°C ~ 380 °C.; Resolution: 0.02°C. Precision: ±0.5°C ( 0~50°C). Field of view (FOV): 35°.; Applications: High-precision contact-less temperature measurement. Industrial temperature control. Household appliances temperature control.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

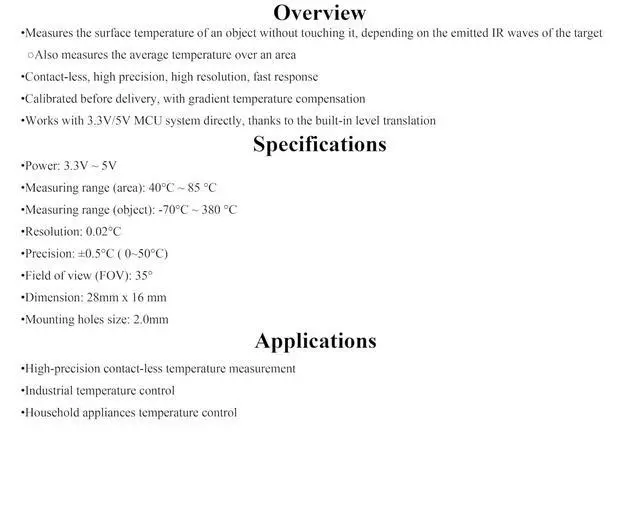

Features Contact-less Infrared Temperature Sensor. Measures the surface temperature of an object without touching it, depending on the emitted IR waves of the target. Also measures the average temperature over an area. Contact-less, high precision, high resolution, fast response. Calibrated before delivery, with gradient temperature compensation. Works with 3.3V /5V MCU system directly, thanks to the built-in level translation.
Measuring range (area): 40°C ~ 85 °C.
Measuring range (object): -70°C ~ 380 °C.
Resolution: 0.02 °C.
Precision: ± 0.5 °C ( 0~50°C).
Field of view (FOV): 35°.
Applications: High-precision contact-less temperature measurement. Industrial temperature control. Household appliances temperature control.

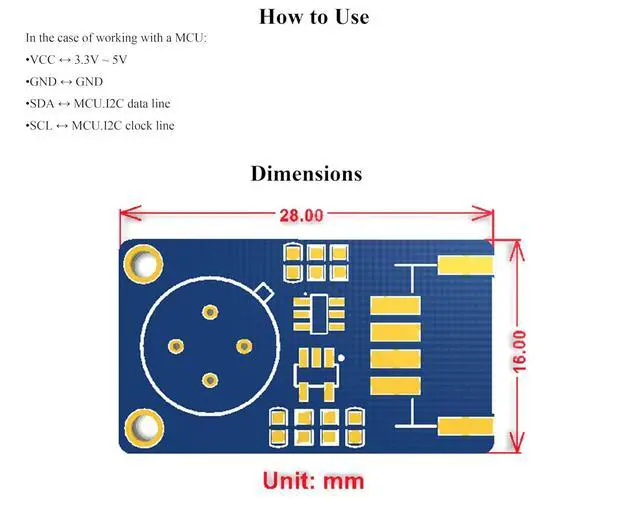

How to Use: In the case of working with a

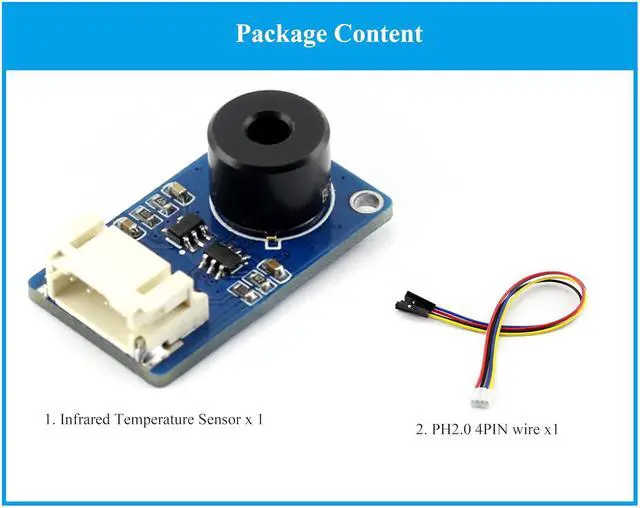

MCU: VCC 3.3V ~ 5V. GND GND. SDA MCU. I2C data line. SCL MCU. I2C clock line. Comes with relevant resources and tutorials to help you get started quickly: bit. ly/3F0mEW8 Package Content Infrared Temperature Sensor x 1 PH 2.0 4PIN wire x 1
Specifications
Power: 3.3V ~ 5V.Measuring range (area): 40°C ~ 85 °C.
Measuring range (object): -70°C ~ 380 °C.
Resolution: 0.02 °C.
Precision: ± 0.5 °C ( 0~50°C).
Field of view (FOV): 35°.
Applications: High-precision contact-less temperature measurement. Industrial temperature control. Household appliances temperature control.
How to Use: In the case of working with a
MCU: VCC 3.3V ~ 5V. GND GND. SDA MCU. I2C data line. SCL MCU. I2C clock line. Comes with relevant resources and tutorials to help you get started quickly: bit. ly/3F0mEW8 Package Content Infrared Temperature Sensor x 1 PH 2.0 4PIN wire x 1
