Main image of RGB Matrix Adapter Board Converter for Raspberry Pi Motherboards and for Raspberry Pi Pico 1 HUB75 Interface 2 Power Input Connectors Type-C 5V/4A and DC-044 5V/8A

Alt view image 2 of 6 - RGB Matrix Adapter Board Converter for Raspberry Pi Motherboards and for Raspberry Pi Pico 1 HUB75 Interface 2 Power Input Connectors Type-C 5V/4A and DC-044 5V/8A

Alt view image 3 of 6 - RGB Matrix Adapter Board Converter for Raspberry Pi Motherboards and for Raspberry Pi Pico 1 HUB75 Interface 2 Power Input Connectors Type-C 5V/4A and DC-044 5V/8A

Alt view image 4 of 6 - RGB Matrix Adapter Board Converter for Raspberry Pi Motherboards and for Raspberry Pi Pico 1 HUB75 Interface 2 Power Input Connectors Type-C 5V/4A and DC-044 5V/8A

Alt view image 5 of 6 - RGB Matrix Adapter Board Converter for Raspberry Pi Motherboards and for Raspberry Pi Pico 1 HUB75 Interface 2 Power Input Connectors Type-C 5V/4A and DC-044 5V/8A

Alt view image 6 of 6 - RGB Matrix Adapter Board Converter for Raspberry Pi Motherboards and for Raspberry Pi Pico 1 HUB75 Interface 2 Power Input Connectors Type-C 5V/4A and DC-044 5V/8A

Visit EmpressTech Store

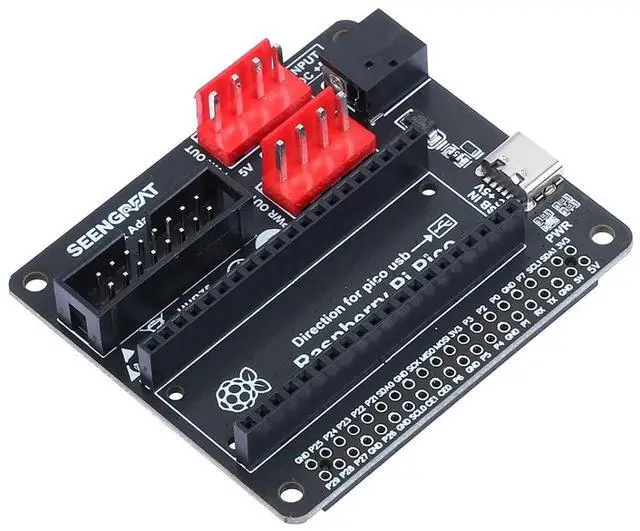

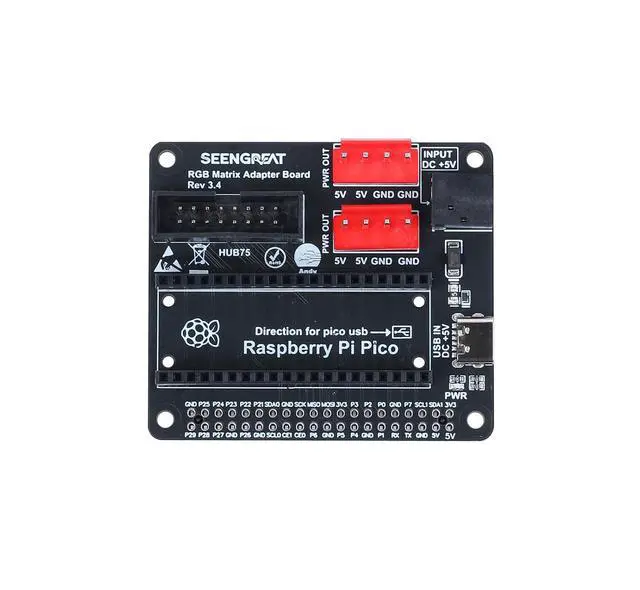

RGB Matrix Adapter Board Converter for Raspberry Pi Motherboards and for Raspberry Pi Pico 1 HUB75 Interface 2 Power Input Connectors Type-C 5V/4A and DC-044 5V/8A

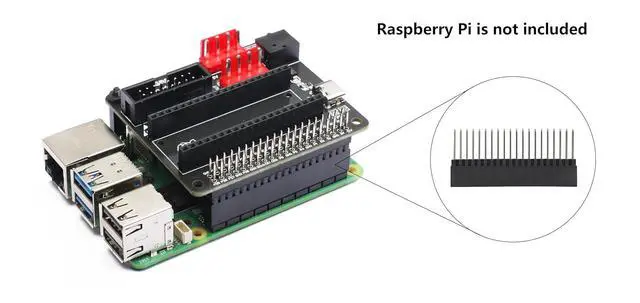

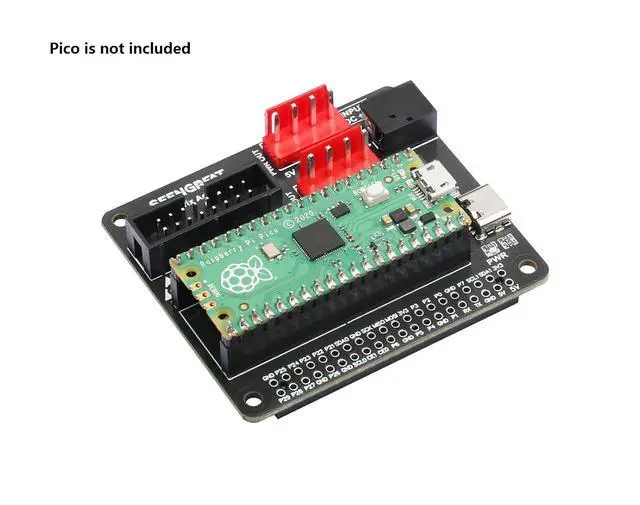

1.A set of 40pin GPIO connectors for Raspberry Pi series motherboards; 2.A set of connectors for Raspberry Pico; 3.Dual power input ports: USB TYPE-C 5V/4A and DC-044 5V/8A. Users can choose one of the power input ports according to their usage; 4.Two VH-4P(3.96mm pitch) power supply connectors for RGB LED matrix panel; 5.One HUB75 interface: It can be directly connected to the RGB LED matrix panel with HUB75 interface.Notice: The for Raspberry Pi and matrix display panel in photos are NOT included.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Product description RGB Matrix Adapter Board Raspberry Pi RGB Matrix Adapter Board Converter RGB Matrix Adapter Board is a product that is convenient for users to quickly wire the RGB LED matrix panel with HUB75 interface to Raspberry Pi series motherboards and Raspberry Pi Pico Product Features A set of 40pin GPIO connectors for motherboards of Raspberry Pi series A set of Raspberry Pico connectors for Raspberry Pi Pico Dual power input ports, 1. USB TYPE-C 5V/4A 2. DC-044 5V/8A Two VH-4P( 3.96 mm pitch) power supply connectors for RGB LED matrix panel One HUB75 interface

Specifications

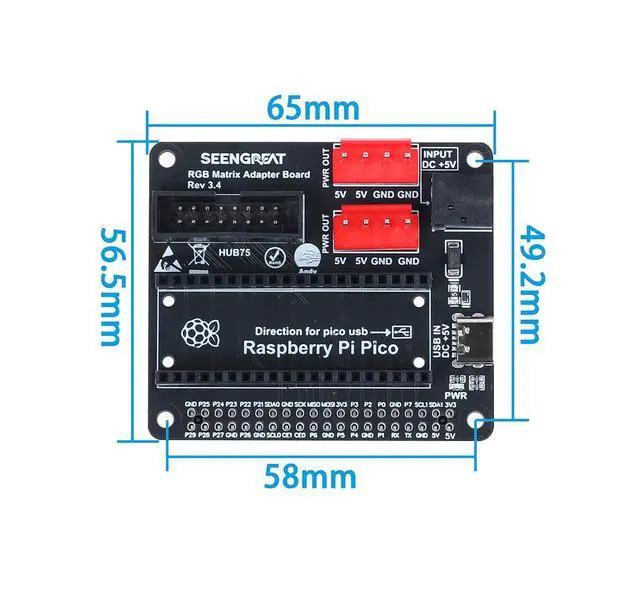

DIMENSIONS: 65mm (Length) x 56mm (Width)
POWER INPUT CONNECTOR: USB TYPE-C 5V/4A or DC-044 5V/8A
POWER OUTPUT CONNECTOR: Two VH-4P( 3.96 mm pitch) power supply connectors for RGB LED matrix panel 5V/4
ARGB LED MATRIX PANEL INTERFACE: HUB75

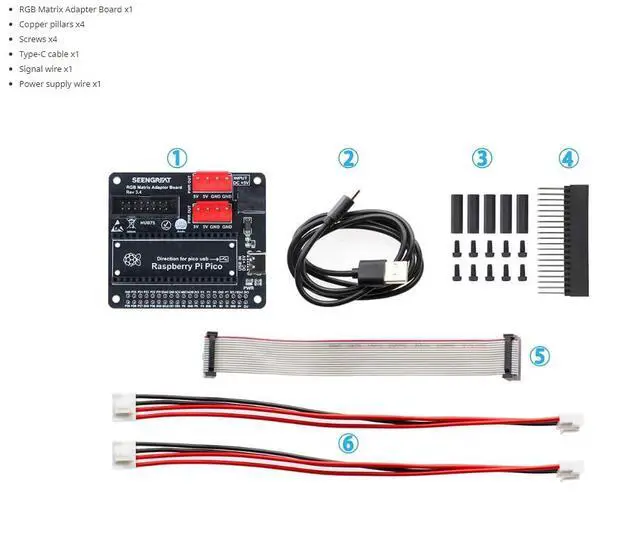

DATA INTERFACE: Raspberry Pi 40pin GPIO or Raspberry Pi Pico headers Connector resource graph 1. HUB75 interface 2. 2 sets of VH 3.96 -4P RGB LED matrix panel power supply connector 3. DC-044 5V power input connector 4. USB Type-C 5V power input connector 5. Power Indicator 6. Raspberry Pi 40pin GPIO connector 7. Raspberry Pico connector Package Contents RGB Matrix Adapter Board x1 Type-C cable x1 Screw accessory kit ×1 40pin header receptacle ×1 Signal wire x1 Power supply wire x1
