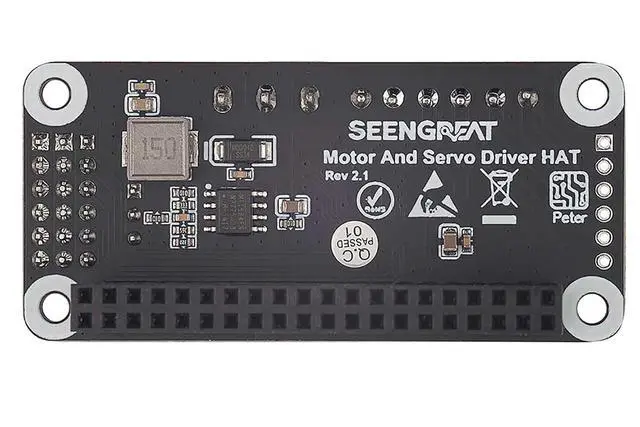

Motor and Servo Driver HAT for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B, Adopting Dual Chips PCA9685+TB6612, Drive Two DC Motors
Limited time offer, ends 07/26 By EmpressTech
- 1.Motor And Servo Driver HAT is an module of DC motor and servo driver specially designed for Raspberry Pi.; 2.This module can drive 2 channels of DC motors and 6 channels of servos at the same time.; 3.It has designed a separate power switch. After power on, the POWER needs to be turned to the ON position. In addition, all the address lines of I2C are led out, and the address can be set by means of the DIP switch.; 4.Onboard PCA9685 chip, adopting I2C communication, built-in PWM driver and a clock, no need to continuously send signals to occupy the resources of the micro-controller.; 5.Onboard TB6612FNG, dual H-bridge motor driver, continuous driver current from each channel up to 1 A.NoticeRaspberry Pi in the photos is NOT included.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview Motor And Servo Driver HAT is an module of DC motor and servo driver specially designed for Raspberry Pi, adopting PCA9685+TB6612 chip solution. This module can drive 2 channels of DC motors and 6 channels of servos at the same time. It can make the desired function come true only through the I2C protocol control register.
Logic Voltage: 3.3V PWM
Driver Chip: PCA9685
Interface Protocol: I2C Motor

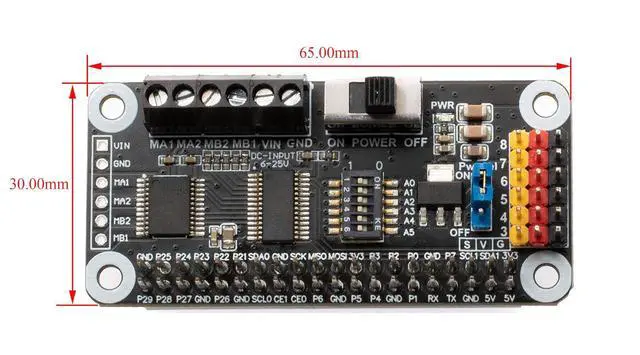

Driver Chip: TB6612FNG Dimensions65mm (Length) *30mm (Width)

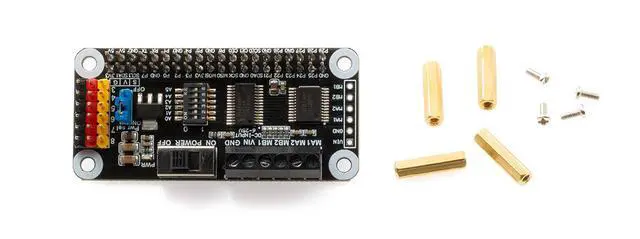

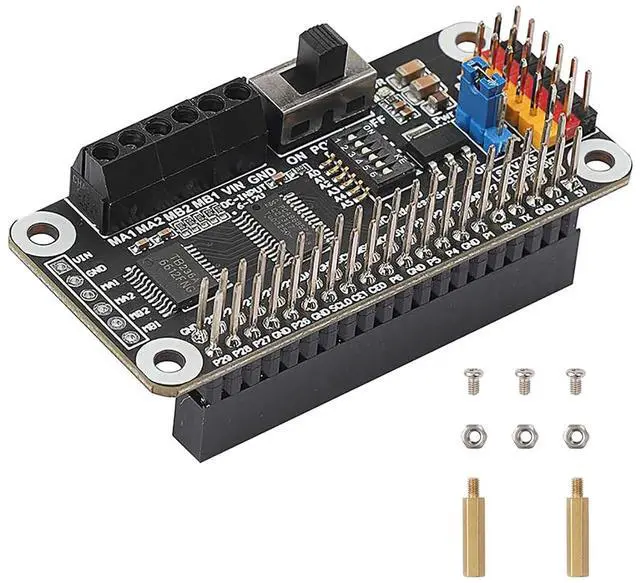

Package contents:
1. Motor And Servo Driver HAT x1
2. Copper pillars x4

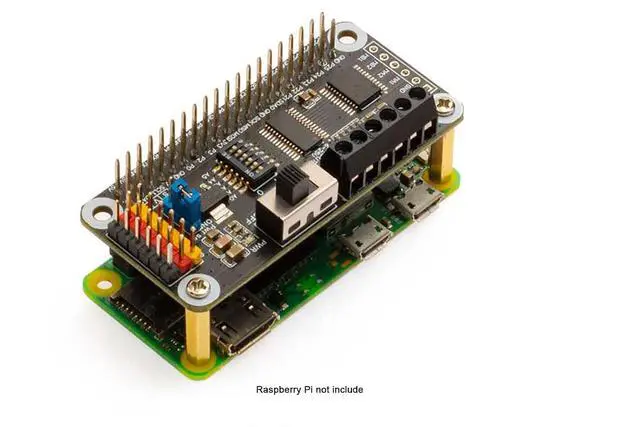

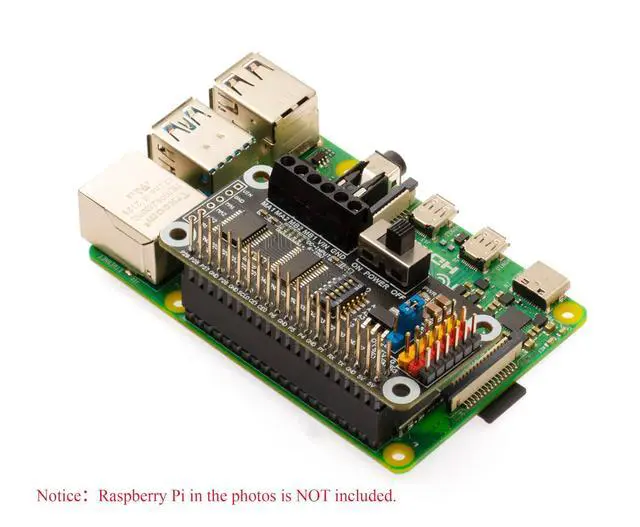

3. Screws x4 NoticeRaspberry Pi in the photos is NOT included. Please feel free to contact us via Amazon message if you have any problem.

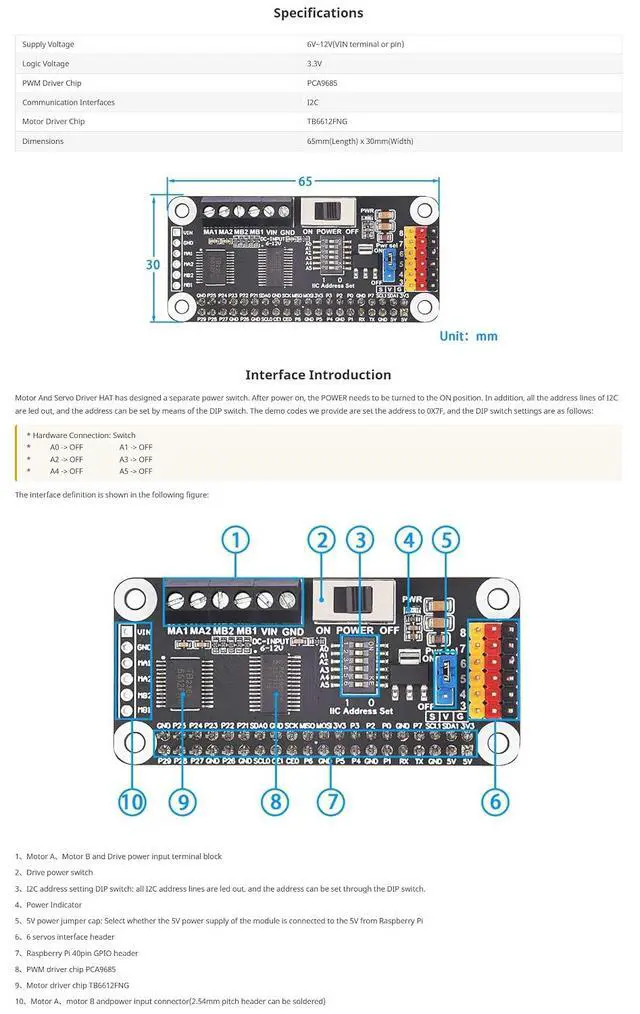

Specifications
Supply Voltage: 6V~25V (VIN terminal or pin)Logic Voltage: 3.3V PWM
Driver Chip: PCA9685
Interface Protocol: I2C Motor
Driver Chip: TB6612FNG Dimensions65mm (Length) *30mm (Width)
Package contents:
1. Motor And Servo Driver HAT x1
2. Copper pillars x4
3. Screws x4 NoticeRaspberry Pi in the photos is NOT included. Please feel free to contact us via Amazon message if you have any problem.
