1.54 Inch E-Ink Display Module for Raspberry Pi 4B/3B+/3A+/3B/2B/B+/A+ Zero W 2W Epaper Screen for Arduino/Jetson Nano

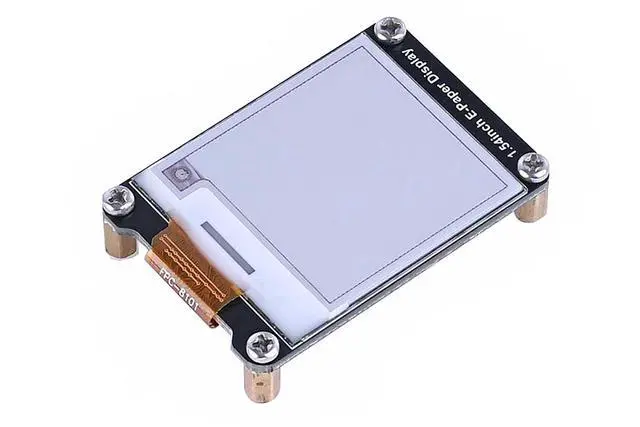

Product description 1.54 Inch E-paper Display Module Low Power, wide view angle, no radiation, can display monochrome (Black/White) Product Features This product is a 1.54 inch e-ink display expansion module, suitable for Raspberry Pi series motherboards, Arduino, STM32, etc. We provide C and Python version demo codes for Raspberry Pi, as well as Arduino and STM32 version demo codes. The demo codes can achieve drawing of points, lines, rectangles, circles, as well as display of English alphanumeric characters and images. SPI interface, minimal pin usage Ultra-low power consumption, essentially requiring power only for refreshing purposes.

Partial refresh usually only takes about 0.3 seconds No backlight, capable of maintaining the display of the last content for an extended duration even during power loss. Onboard voltage translator, compatible with 3.3V /5V MCUs Comes with development resources and manual (example programs for Raspberry Pi/Arduino/STM32/ESP32) Product

Specifications

Size 48mm (Length) x 33mm (Width) Pixels 200 x 200 Display Color Monochrome Level Conversion Chip TXS0108EPWR Signal Interface SPI Power Supply Voltage 5V/ 3.3V Display Area 27mm (H) x 27mm (W) Grayscale 4 Full Refresh Time 2S Fast Refresh Time 1.5S Partial Refresh Time 0.26S Power Consumption 4.5 mW Standby Power Consumption 0.003 mW

Details

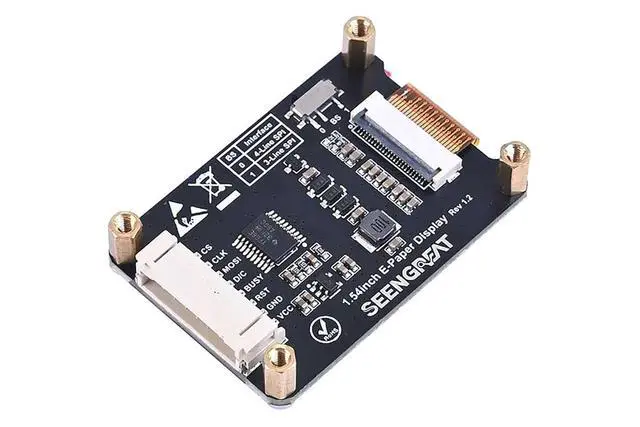

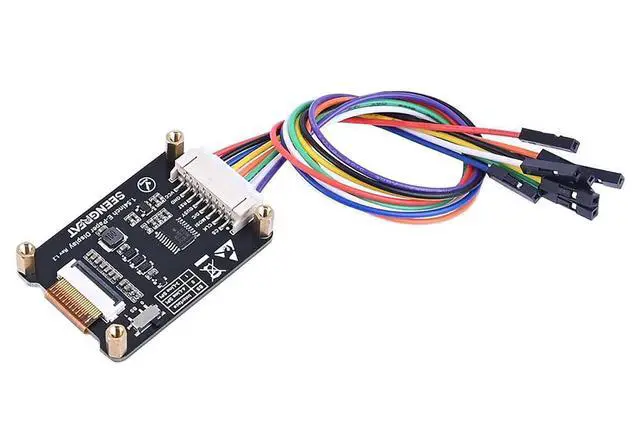

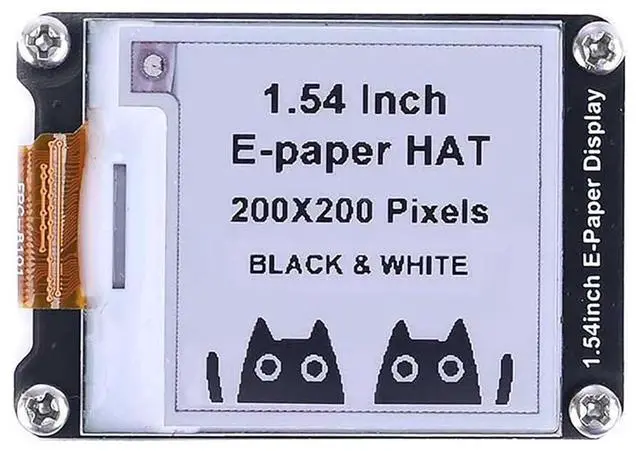

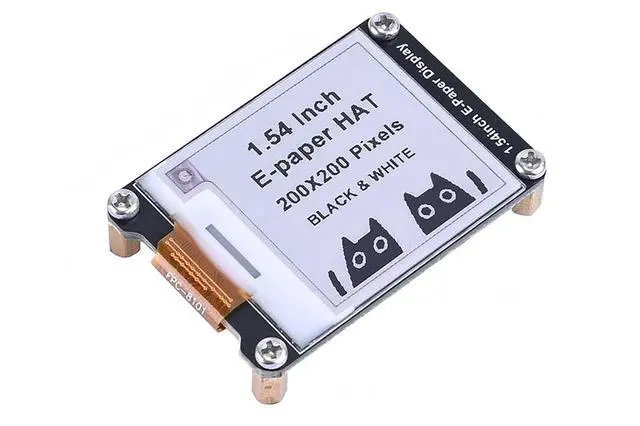

& Dimensions 2-Colors Display 1.54 inch black and white monochrome color e-ink screen expansion module, can realize picture display, English and digital character display SPI interface SPI interface, minimal pin usage Panel configuration Reliable and high-quality hardware configuration provides a better user experience Resource Profile Compact design, more convenient for users to DIY.

Sunlight Readability This E-paper display can be read directly, unlike LCD screens that require brightness adjustment or backlight to read, can better protect the eyes and overall health. Application This 1.54 inch monochrome E-paper display use for price tags, shelf labels, industrial instruments, handheld equipment, public information systems, and digital signage equipment, plus freight container labeling, shop floor conveyor systems, warehousing operations, etc. More sizes 1.54 inch E-Paper Display Add to Cart 2.13 inch E-Paper Display Add to Cart 2.7 inch E-Paper Display Add to Cart 2.9 inch E-Paper Display Add to Cart 7.5 inch E-Paper Display Add to Cart 7.3 inch E-Paper Display Buying Options Customer Reviews 4.4 out of 5 stars 12 3.8 out of 5 stars 13 4.5 out of 5 stars 2 3.7 out of 5 stars 4 5.0 out of 5 stars 4 5.0 out of 5 stars 2 Price $ 17.95 $17.

95 $ 19.95 $19. 95 $ 22.95 $22. 95 $ 22.90 $22. 90 $ 62.50 $62. 50 Resolution 200 x 200 250 x 122 264 x 176 296 x 128 800 x 480 800 x 480 Colors Black and white Black and white Black and white Black and white Black and White 7-Color Grayscale 4 4 4 4 2 2 Display size (mm) 27 x 27 48.55 x 23.70 57.29 x 38.19 66.89 x 29.05 163.2 x 97.92 160x 96 Product Dimension (mm) 48 x 33 65 x 30 70.42 x 45.8 79 x 36.7 170.22 x 111.2 170.22 x 111.2 Full Refresh Time (s) 2 3 3 1.5 3.5 35s Supportive Partial Refresh Interface SPI SPI SPI SPI SPI SPI
