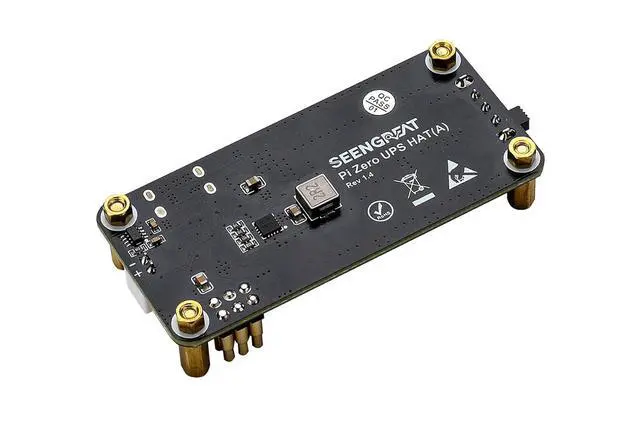

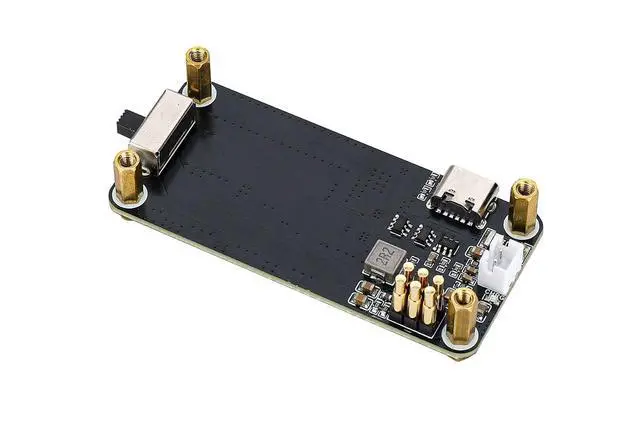

UPS HAT for Raspberry Pi Zero, Uninterruptible Power Supply Module, Plug-and-Play Ba-ttery Backup Board, Real-Time INA219 Ba-ttery Monitor, Supports 3.7 V Lithium Ba-ttery, Power Management Expansion
- Designed for Raspberry Pi Zero Same PCB footprint as the Pi Zero series; connects via a 2 × 3 P pin header for neat, solder-free stacking in compact projects.; Uninterruptible Power Supply (UPS) Intelligent path-management IC seamlessly switches from external power to battery during outages, protecting data and preventing unexpected shutdowns.; Real-Time INA219 Ba-ttery Monitor On-board INA219 sensor feeds voltage, current, power, and charge-remaining data to your Pi over I²C, enabling smart energy-saving and graceful-shutdown scripts.; Supports 3.7 V 803040 Lithium Ba-ttery Optimised charging profile and high-efficiency synchronous boost provide stable 5 V output for field sensors, mobile robots, and edge-AI devices.; Plug-and-Play Power Management No need driver, simultaneous charge & discharge capability, and GPIO-level status pins make integration effortless for makers, students, and industrial developers.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

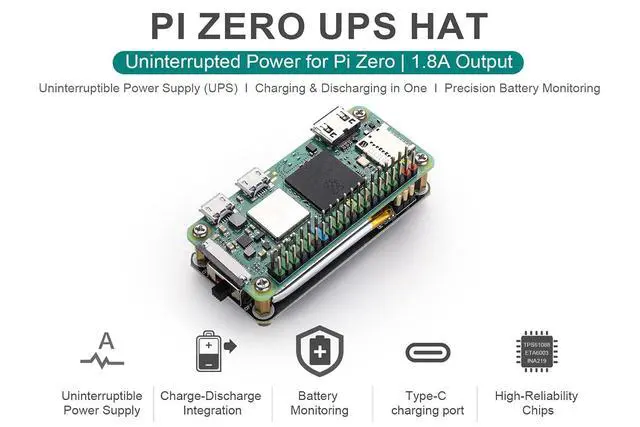

Product description I Product Overview Inject "sustainable" energy into your Raspberry Pi Zero series! We carefully built this uninterruptible power supply HAT module designed for extremely compact scenarios. It is the same size as the Raspberry Pi Zero. When you connect to an external power source, the module will smoothly power the Raspberry Pi and charge the battery at the same time. Once the external power supply is accidentally interrupted, the circuit will be seamlessly switched, and the output will be instantly powered by the battery to ensure the normal operation of the Raspberry Pi Zero.
Not only that, we have integrated a high-precision INA219 battery monitoring chip. Through the standard IIC interface, you can read the battery voltage, current, power and even remaining power estimation in real time and accurately. You can optimize power consumption strategies, warn of low power or accurately record energy consumption, greatly improving the reliability and data integrity of the project. From sensors deployed in the field to mobile robots, to portable terminals that need to shut down gracefully, this small and powerful Pi Zero UPS HAT A uses reliable hardware design and transparent data interaction to build a solid power backing and intelligent management capabilities for your Raspberry Pi Zero project.

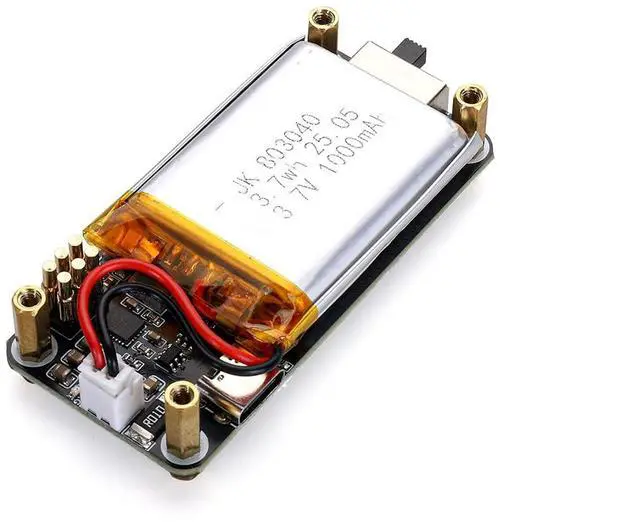

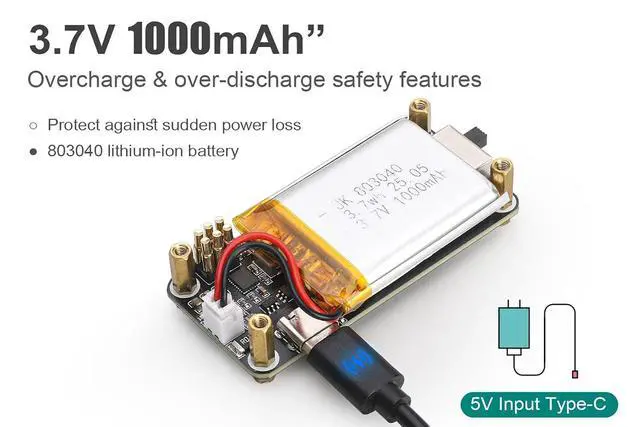

II Product Features Suitable for 3.7V 803040 lithium battery. Plug and play, compatible with
Raspberry Pi Zero series products: using 2x3P pin connector, plug and play is visualized as precise physical docking without welding, highlighting engineering friendliness and compatibility with the full range of Zero.

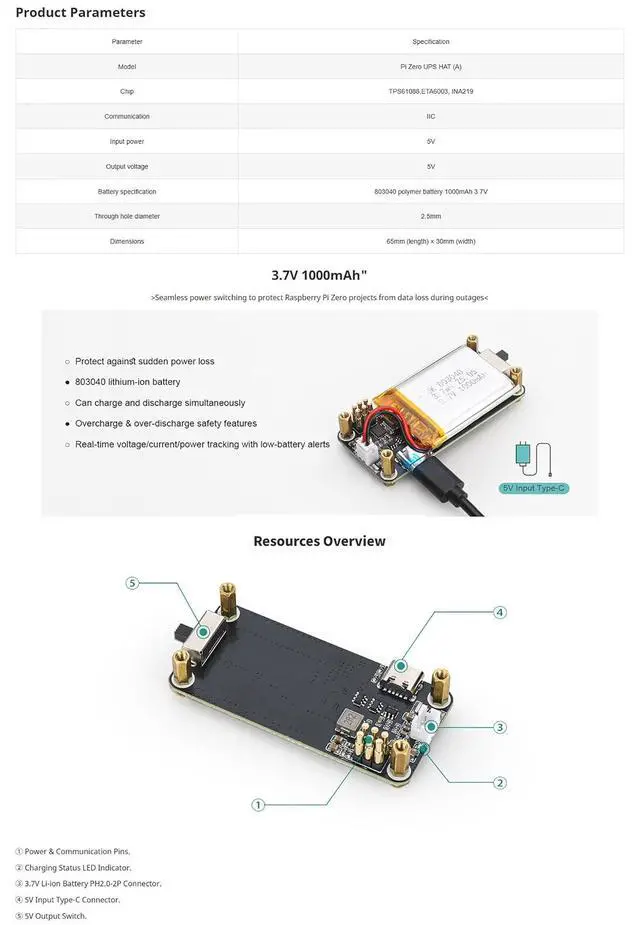

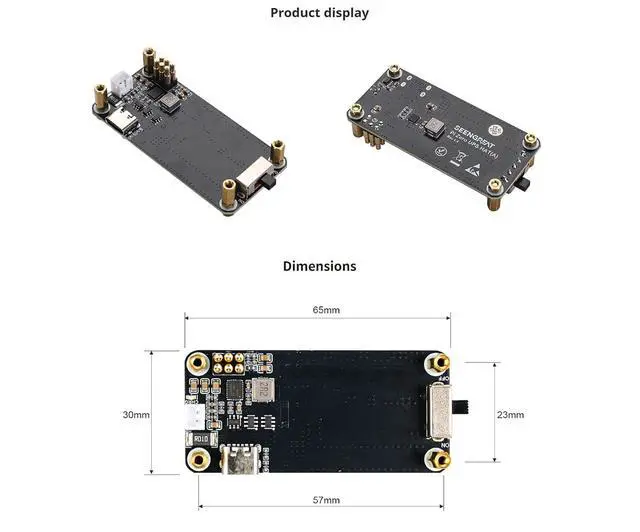

Uninterrupted power supply: intelligent path management charging chip and efficient synchronous boost circuit to achieve simultaneous charging and discharging. Real-time detection of module working status, battery monitoring chip, and can monitor battery voltage, current, power and other parameters at the same time. Product Parameters Model Pi Zero UPS HAT (A) Chip TPS61088, ETA6003, INA219 Communication IIC Input power 5V Output voltage 5V Battery specification 803040 polymer battery 1000mAh 3.7V Through hole diameter 2.5 mm Dimensions 65mm (length) × 30mm (width) Resources Overview 1. Power & Communication Pins. 2. Charging Status LED Indicator. 3. 3.7V Li-ion Battery PH 2.0 -2P Connector. 4. 5V Input Type-C Connector. 5. 5V Output Switch. See More
Not only that, we have integrated a high-precision INA219 battery monitoring chip. Through the standard IIC interface, you can read the battery voltage, current, power and even remaining power estimation in real time and accurately. You can optimize power consumption strategies, warn of low power or accurately record energy consumption, greatly improving the reliability and data integrity of the project. From sensors deployed in the field to mobile robots, to portable terminals that need to shut down gracefully, this small and powerful Pi Zero UPS HAT A uses reliable hardware design and transparent data interaction to build a solid power backing and intelligent management capabilities for your Raspberry Pi Zero project.
II Product Features Suitable for 3.7V 803040 lithium battery. Plug and play, compatible with
Raspberry Pi Zero series products: using 2x3P pin connector, plug and play is visualized as precise physical docking without welding, highlighting engineering friendliness and compatibility with the full range of Zero.
Uninterrupted power supply: intelligent path management charging chip and efficient synchronous boost circuit to achieve simultaneous charging and discharging. Real-time detection of module working status, battery monitoring chip, and can monitor battery voltage, current, power and other parameters at the same time. Product Parameters Model Pi Zero UPS HAT (A) Chip TPS61088, ETA6003, INA219 Communication IIC Input power 5V Output voltage 5V Battery specification 803040 polymer battery 1000mAh 3.7V Through hole diameter 2.5 mm Dimensions 65mm (length) × 30mm (width) Resources Overview 1. Power & Communication Pins. 2. Charging Status LED Indicator. 3. 3.7V Li-ion Battery PH 2.0 -2P Connector. 4. 5V Input Type-C Connector. 5. 5V Output Switch. See More
