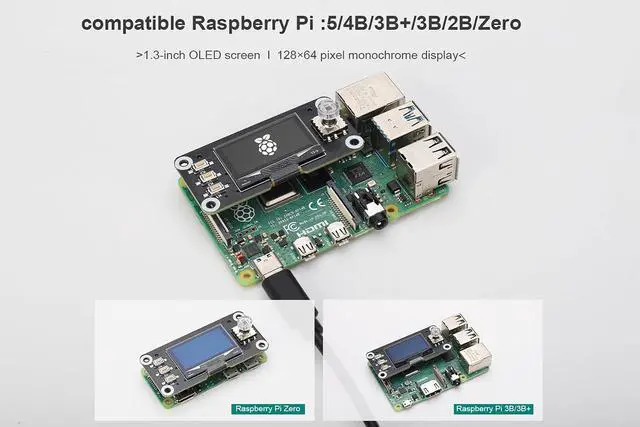

1.3inch OLED Display HAT for Raspberry Pi, 128×64 SH1106 Screen Module with Joystick & Buttons, SPI/I2C Switchable Interface, Compact GPIO Expansion Board for DIY Projects
Limited time offer, ends 07/26 By EmpressTech
- High-Resolution 1.3inch OLED Display Features a 128×64 SH1106 controller for bright, crisp, and clear text or graphics. Perfect OLED display HAT for visual interfaces and embedded information panels.; Integrated Joystick and Control Buttons Includes a 5-way joystick and three programmable buttons, ideal for building interactive menus, navigation systems, or compact control panels.; Dual Communication Interface: SPI & I2C Equipped with hardware switches for easy SPI/I2C mode selection, making it compatible with a variety of development platforms.; Plug-and-Play GPIO HAT Design for Raspberry Pi Fully compatible with Raspberry Pi 40PIN GPIO, easy to stack, install, and integrate in your Rasp-berry Pi projects without additional wiring.; Compact and Developer-Friendly Small form factor (65×30mm), 3.3V operating voltage, stable SH1106 driver, and open-source examples for easy programming and display control.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

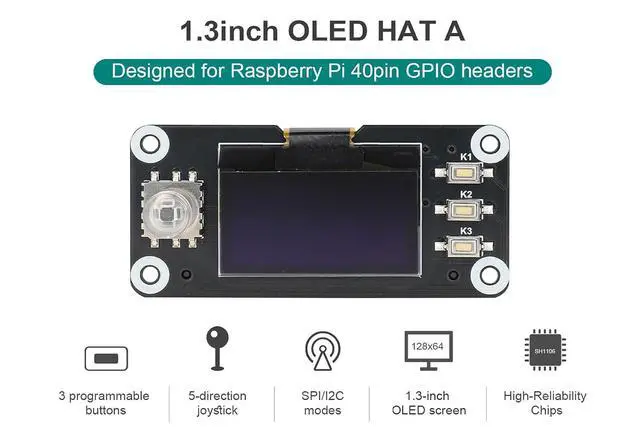

Product description This 1.3 -inch OLED display expansion module, powered by the SH1106 controller, features 128×64 resolution and integrates an on-board 5 direction joystick with three programmable buttons. Dual slide switches enable seamless SPI/I²C communication mode selection. Designed for Raspberry Pi 40pin GPIO headers, the module operates via SPI or I²C interfaces, delivering ultimate flexibility. 1.3 inch OLED Display with 128×64 resolution SPI/I²C

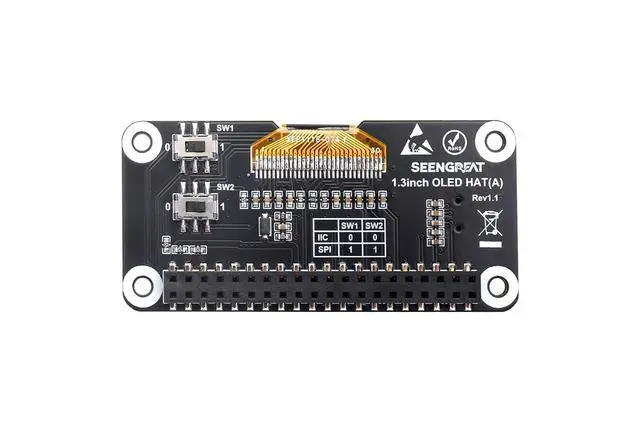

Protocol Support: Toggle between modes via hardware switch

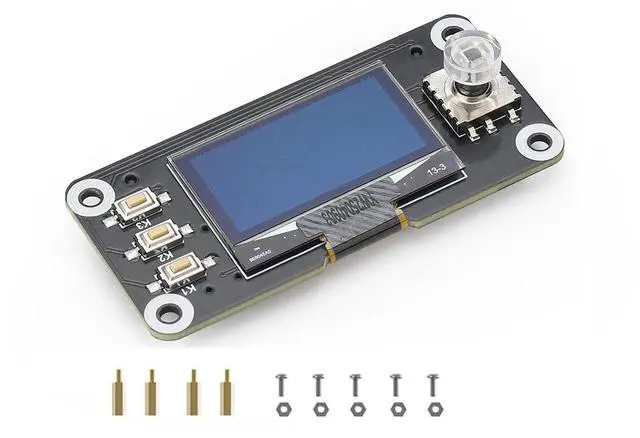

On-board Controls: 5direction joystick and 3 programmable buttons Integrated SH1106 Display Controller Product
Protocol Support: Toggle between modes via hardware switch
On-board Controls: 5direction joystick and 3 programmable buttons Integrated SH1106 Display Controller Product

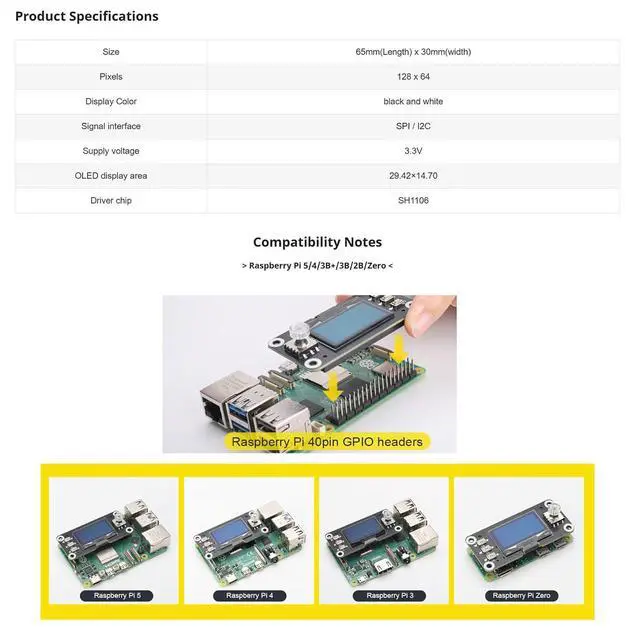

Specifications

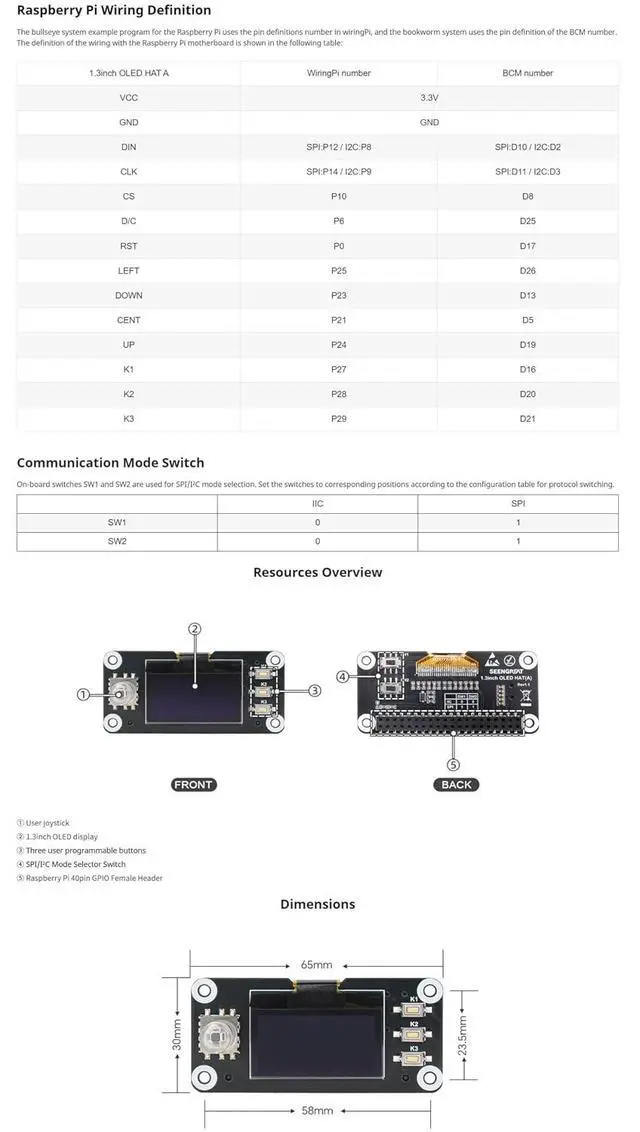

Size 65mm (Length) x 30mm (width) Pixels 128 x 64 Display Color black and white Signal interface SPI / I2C Supply voltage 3.3V OLED display area 29.42 × 14.70 Driver chip SH1106 1. User joystick 2. 1.3 inch OLED display 3. Three user programmable buttons 4. SPI/I²C Mode Selector Switch 5. Raspberry Pi 40pin GPIO Female Header DimensionsWarranty & Returns
