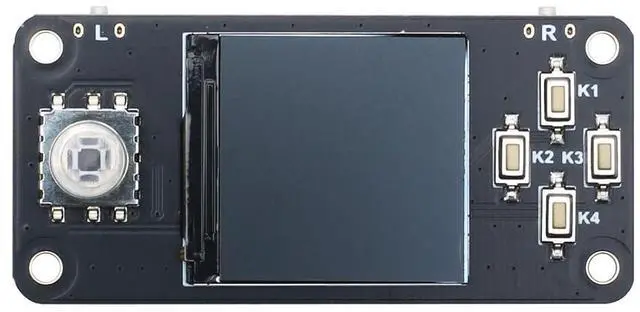

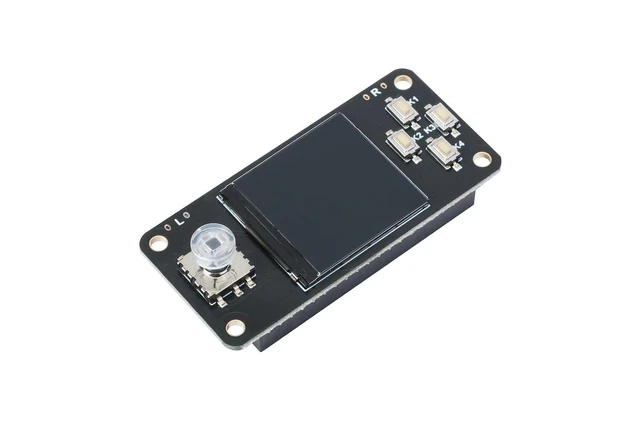

1.3inch LCD Display Module, Embedded ST7789 Driver, 240×240 Resolution IPS Screen 65K RGB Color SPI Interface,for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B, a Joystick and Six Buttons

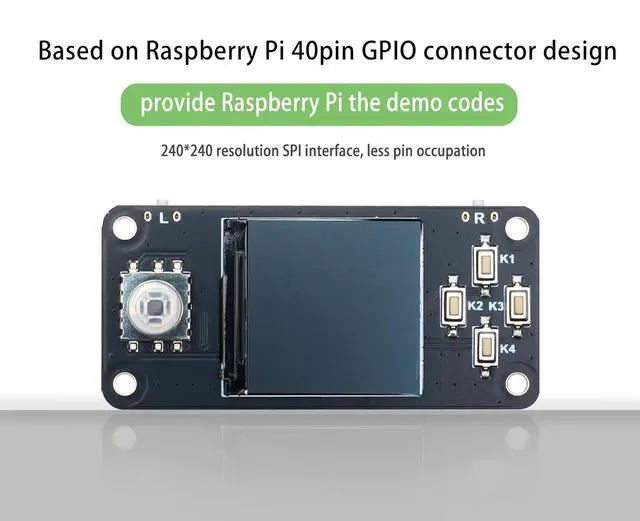

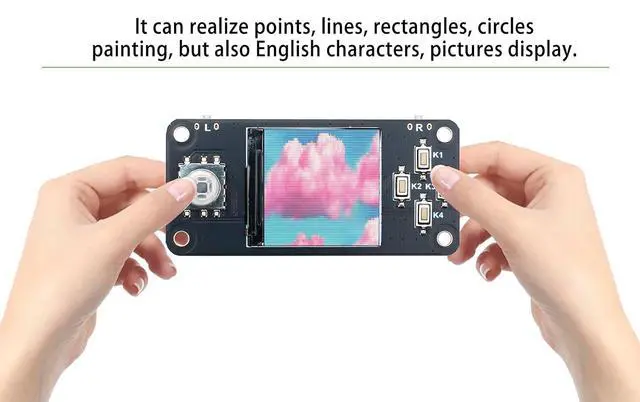

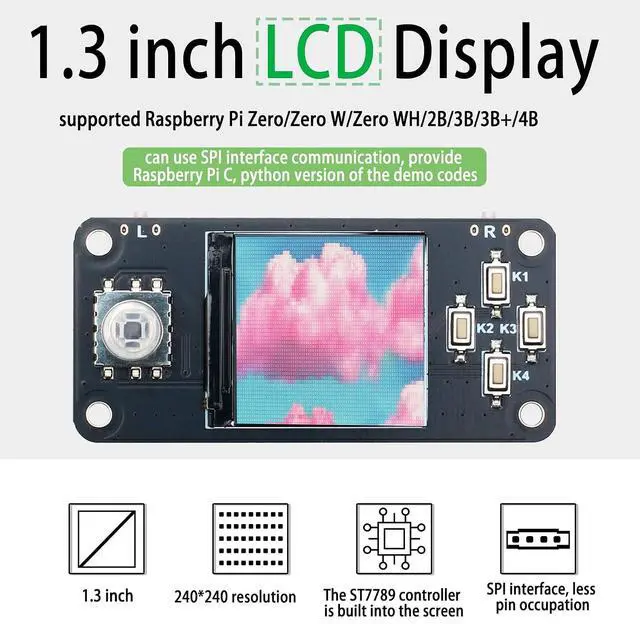

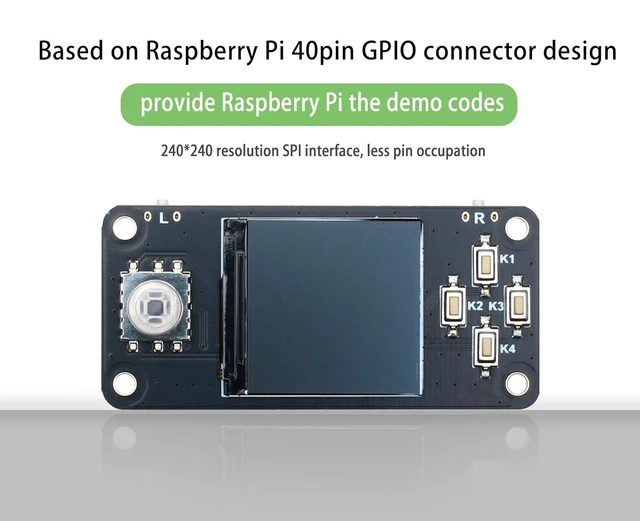

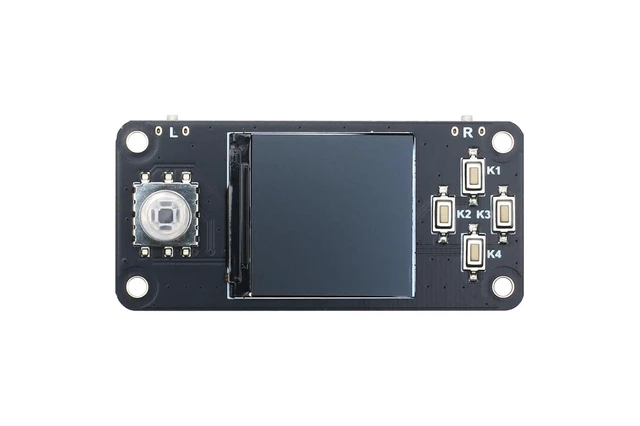

Overview: This LCD is a 1.3 -inch TFT display, onboard a joystick and six buttons, resolution of 240*240, internal ST7789 controller, based on compatible with Raspberry Pi 40pin GPIO connector design, intended for Raspberry Pi Zero/Zero W/Zero 2W/Zero WH/2B/3B/3B+/4B, can use SPI interface communication, provide for Raspberry Pi C, python version of the demo codes, it can realize points, lines, rectangles, circles painting, but also English characters, pictures to display.

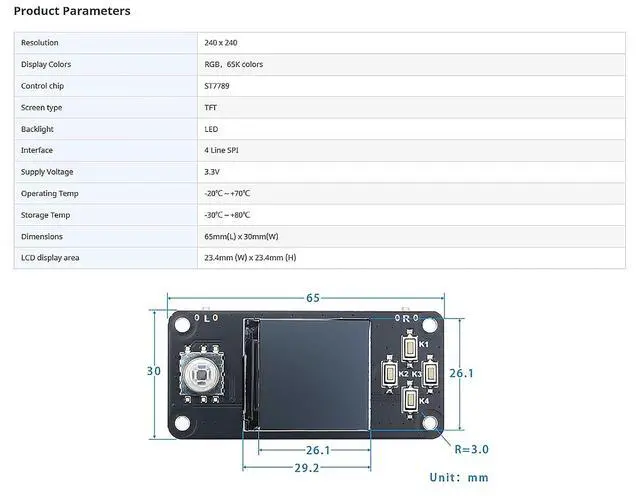

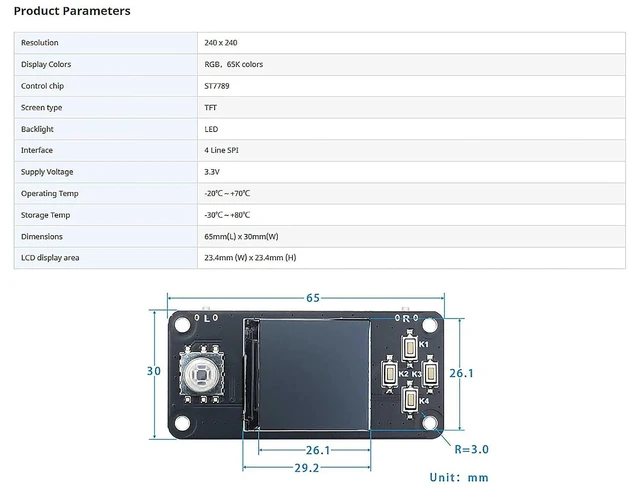

Product parameters:
Dimensions: 65mm (L) * 30.3 mm (W)
Resolution: 240*240
Display Colors: RGB65K colors
Control chip: ST7789
Screen type: TFT
Backlight: LED
Interface: 4 Line SPI
Supply Voltage: 3.3V
Operating Temp: -20+70
Storage Temp: -30+80
LCD display area: 23.4 mm (W) * 23.4 mm (H)

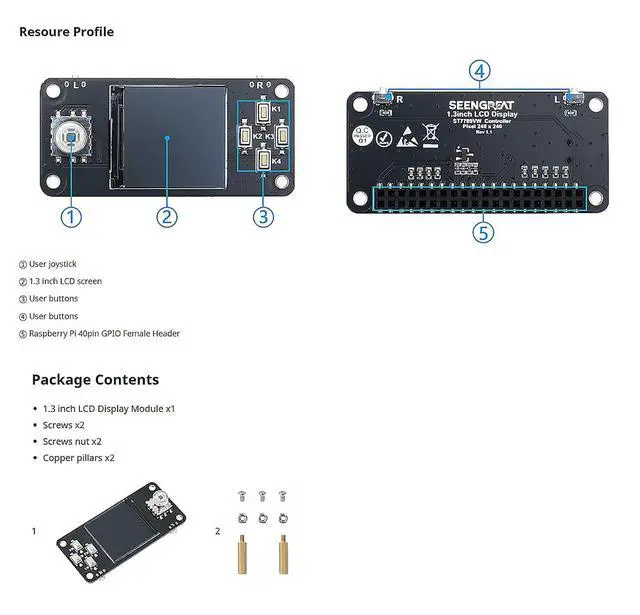

Interface definition:
VCC: VDD( 3.3V )
GND: GND
SDA: SPI data input
SCK: SPI clock input
CS: SPI chip selection, active at low level
BL: backlight control
D/C: Display data/command selection pin in 4-line serial interface
RESET: Display screen reset, active at low level
K1: User key
K1 K2: User key
K2 K3: User key
K3 K4: User key
K4 SW1: User key
L SW2: User key
R S1: Jointed arm
Package contents: 1.1. 3inch LCD Display*1
2. Copper pillars x2
3. Screws x2
4. Nut x2
