PCIe M.2 NVMe & SFP HAT+ for Raspberry Pi 5, NAS Adapter Board | Gigabit Ethernet and NVMe SSD expansion HAT+ with SFP fiber support, for Raspberry Pi 5 NAS and edge gateway projects
- PCIe M.2 NVMe SSD HAT+ for Raspberry Pi 5: PCIe M.2 NVMe SSD and SFP Fiber HAT+ adds high-speed storage expansion and wired Gigabit fiber Ethernet capability to Pi 5 projects through the onboard PCIe interface.; SFP Gigabit Fiber Ethernet Adapter Board: This SFP Gigabit Ethernet Adapter Board provides a standard SFP port for compatible optical modules, making it suitable for wired fiber network expansion, long-distance network links and industrial gateway testing.; Supports 2230/2242/2260/2280 NVMe SSD: The M.2 NVMe SSD Adapter supports 2230, 2242, 2260 and 2280 form factors, helping users build boot storage, project data drives, lightweight NAS systems and edge computing storage applications.; Dual PCIe Function with ASM1182e Chip: Built around the ASM1182e PCIe expansion chip, this PCIe HAT+ board enables two PCIe functions: one for M.2 NVMe storage and one for Gigabit Ethernet controller communication.; HAT+ Expansion Board with EEPROM: Compliant with the HAT+ standard, this Pi 5 PCIe Expansion Board integrates onboard EEPROM, 2×20Pin header and status LEDs for easier setup, board recognition and working-state indication.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

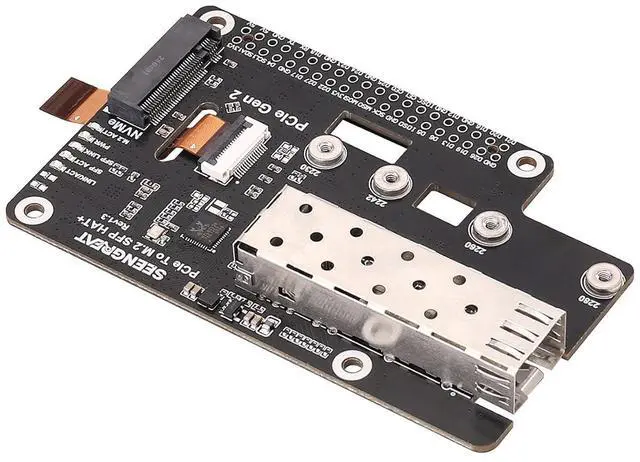

Overview The PCIe To M. 2 SFP HAT+ is a multifunction PCIe expansion board designed for Raspberry Pi 5 storage and wired network development. It combines M. 2 NVMe SSD expansion and Gigabit SFP fiber Ethernet capability in one compact HAT+ adapter board, making it suitable for NAS, edge gateway, industrial communication, data storage and embedded development projects. Using the ASM1182e PCIe expansion chip, this PCIe HAT+ board divides the single PCIe interface of Pi 5 into two independent PCIe functions. One function is used for the M. 2 NVMe SSD interface, and the other is used for the Gigabit Ethernet controller solution.

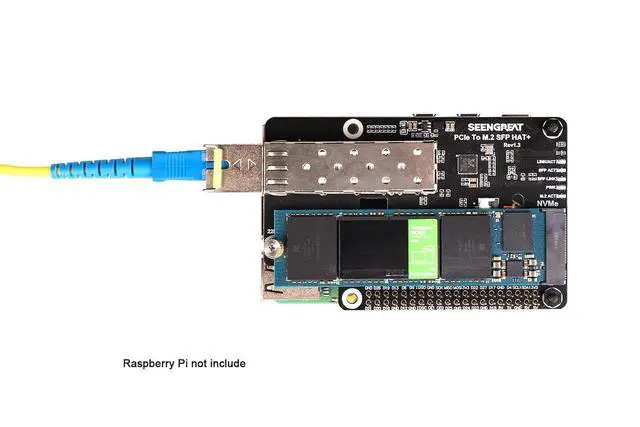

The M. 2 slot supports NVMe SSDs in 2230, 2242, 2260 and 2280 sizes. Users can install a compatible NVMe SSD for system boot, data logging, file storage, lightweight NAS, development server applications or edge computing workloads. For wired network expansion, the board provides a standard SFP port with RTL8111H + RTL8213B Ethernet solution. When used with a compatible SFP optical module, it supports Gigabit fiber Ethernet connection for long-distance wired network transmission, lab testing, industrial gateway projects and network development applications. The PCIe To M.

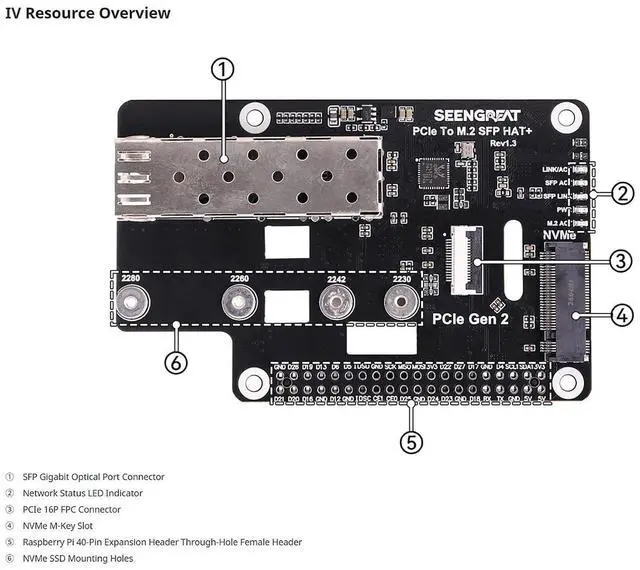

2 SFP HAT+ follows the Pi HAT+ standard and includes an onboard EEPROM and 2×20Pin header for easier board identification and integration. Onboard status LEDs help indicate SSD activity, link state and board working status during setup and debugging.
Please note: NVMe SSD and SFP optical module are not included.
Name: PCIe To M.
2 SFP HAT+ Compatibility: for Raspberry Pi 5
Expansion Chip: ASM1182e
SSD Interface: M. 2 NVMe Supported
SSD Size: 2230/2242/2260/2280
Network Port: Standard SFP port
Ethernet Solution: RTL8111H +
RTL8213B Header: 2×20Pin HAT+ header
Applications: NAS, edge gateway, wired fiber Ethernet, data storage, embedded development Package Contents 1. PCIe To M. 2 SFP HAT+(16P Flexible Flat Cable is pre-installed) x1 2. 2x20P Extended Pin Female Header x1
3. Nylon Screw Kit x1
The M. 2 slot supports NVMe SSDs in 2230, 2242, 2260 and 2280 sizes. Users can install a compatible NVMe SSD for system boot, data logging, file storage, lightweight NAS, development server applications or edge computing workloads. For wired network expansion, the board provides a standard SFP port with RTL8111H + RTL8213B Ethernet solution. When used with a compatible SFP optical module, it supports Gigabit fiber Ethernet connection for long-distance wired network transmission, lab testing, industrial gateway projects and network development applications. The PCIe To M.
2 SFP HAT+ follows the Pi HAT+ standard and includes an onboard EEPROM and 2×20Pin header for easier board identification and integration. Onboard status LEDs help indicate SSD activity, link state and board working status during setup and debugging.
Please note: NVMe SSD and SFP optical module are not included.

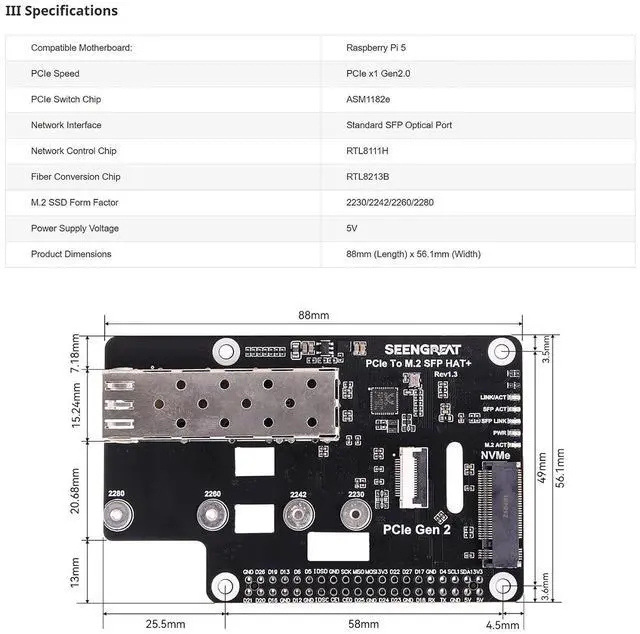

Specifications
: ProductName: PCIe To M.
2 SFP HAT+ Compatibility: for Raspberry Pi 5
Expansion Chip: ASM1182e
SSD Interface: M. 2 NVMe Supported
SSD Size: 2230/2242/2260/2280
Network Port: Standard SFP port
Ethernet Solution: RTL8111H +
RTL8213B Header: 2×20Pin HAT+ header
Applications: NAS, edge gateway, wired fiber Ethernet, data storage, embedded development Package Contents 1. PCIe To M. 2 SFP HAT+(16P Flexible Flat Cable is pre-installed) x1 2. 2x20P Extended Pin Female Header x1
3. Nylon Screw Kit x1
