Microwave Radar Sensor Module LD2410, 24GHz ISM Band, Human Presence Motion Sensing Module, Non-Contact Monitoring Detector, Horizontal Connect, with Bluetooth, Support GPIO and UART Output

Overview LD2410 is a high-sensitivity 24GHz human presence status sensing module developed by Hilink Electronics. Its working principle is to use FMCW frequency-modulated continuous wave to detect human targets in the set space. Application scenarios
1. Human body sensor light control It senses whether there is someone in the space, and automatically controls lights, suchas lighting equipment in public places, various sensor lights, bulb lights, etc. 2. Human body induction wake-up of advertising screens and other devices Automatically turn on when people come, and automatically sleep when no one comesto save power, information delivery is more accurate and efficient 3. life safety protection UV lamp work protection to prevent the UV lamp from being turned on when there are people around and causing personal injury Automatic detection and alarming of dangerousplaces to prevent people from entering specific high-risk spaces, such as high-risk placeswhere coal mine blasting personnel enter.
4. Smart Appliances When there is no one in the room for a long time, the TV, air conditioner and otherelectrical appliances are automatically turned off, saving energy and safety
5. Smart Security Detection and identification of people intruding, staying, etc. within the specified range

Specifications

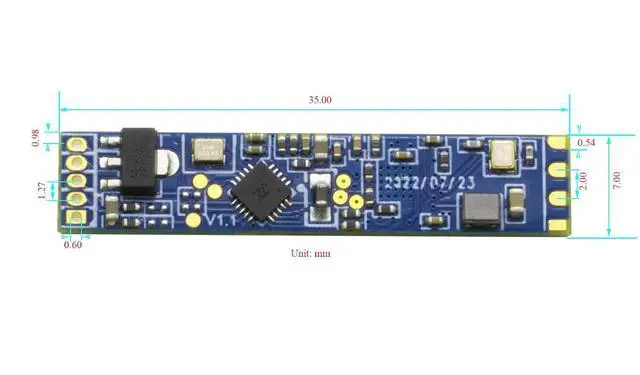

Dimensions: 35mm (length) *7mm (Width)

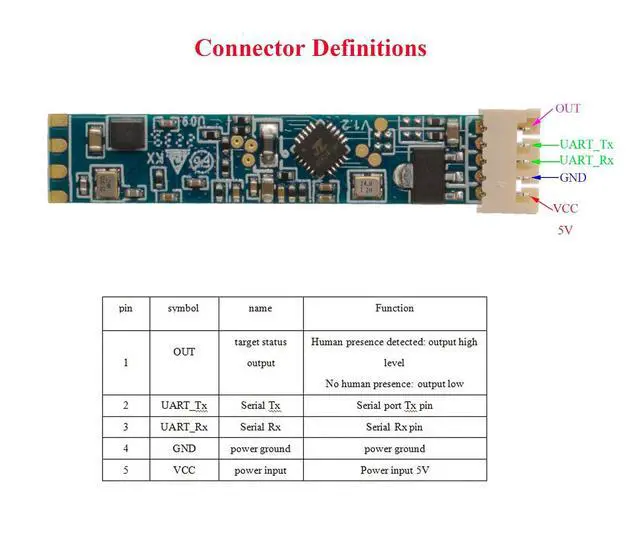

Interface: 1 GPIOIO level 3.3V 1 UART
Power Requirements: DC 5VPower supply capability>200mA
Average operating current: 80 mA
Detection distance: 0.75 m6m, adjustable
Working frequency: 24GHz~ 24.25GH z, Compliant with FCC, CE, non-commission
certification Modulation: FMCW
Detection angle: ±60 °
Distance resolution: 0.75 m
Sweep Bandwidth: 250MHz, Compliant with FCC, CE, non-commission

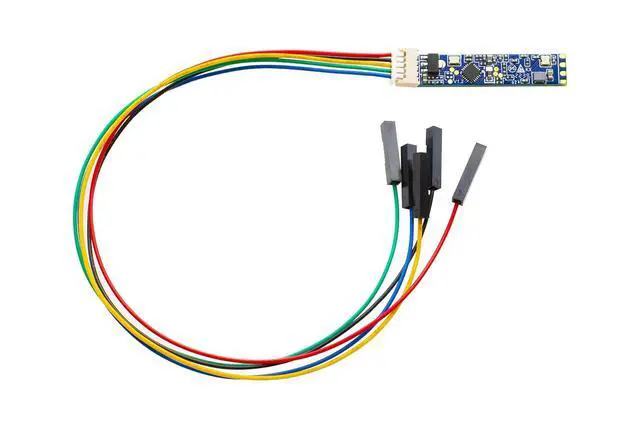

certification Ambient temperature: -40 ~ 85 Package contents 1. MX 1.27 5Pin Header x1
