Dual GPIO Expander for Raspberry Pi Pico, Two Sets of External Expansion 2x20PIN,Four HY-2.0-4P Headers,Full-Color RGB, Onboard Micro SD Card Slot, for Connecting More Expansion Modules

1.Equipped with all Pico LED status indicators leading to GPIO; 2.On board Micro SD card slot, full-color RGB (WS2812), standard 3.5mm audio jack, buzzer, buttons, etc; 3.Increases the reset button, so it is convenient for users to debug or write programs without frequent plugging USB line of Pico.; 4.5V power supply voltage (provided by PICO); 5.Provide Python open source demo codes that can be used for Raspberry Pi Pico development board

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

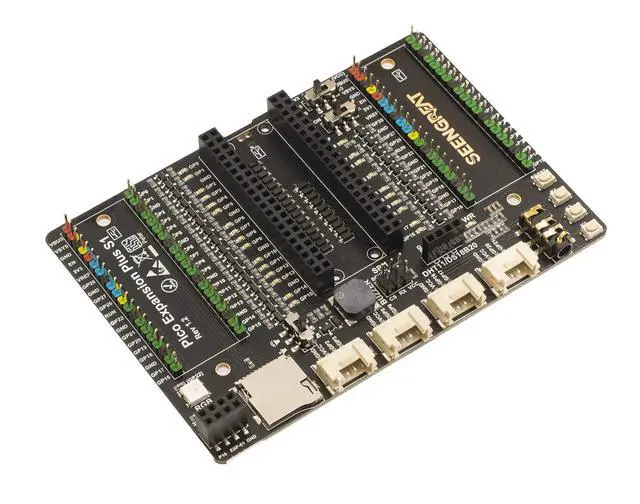

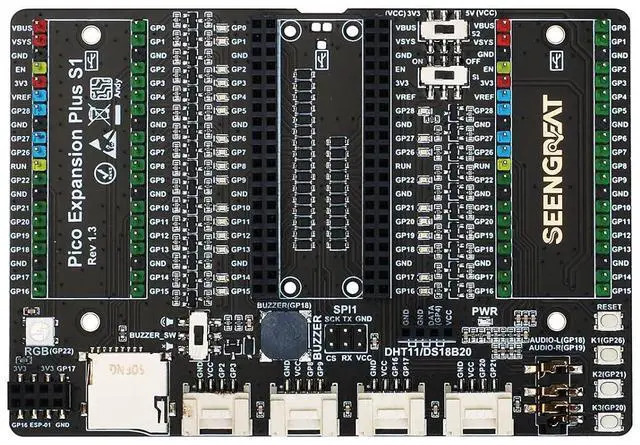

Overview: Pico Expansion Plus S1 is an upgraded expansion board specially designed for the Raspberry Pi Pico. It not only has the status indicator LED lights of all GPIOs in Pico of Pico Expansion Plus version, two sets of 2 * 20PIN pin array headers, four HY- 2.0 -4P headers, one set of SPI1 pin array and one reset button, but also adds one Full-color RGB, onboard Micro SD card slot, buzzer with switch, and one 2.54 mm 4PIN header array for DHT11/DS18B20 sensors, There is also a standard 3.5 mm audio jack. For Raspberry Pi Pico does not have a reset button, but this product increases the reset button, so it is convenient for users to debug or write programs without frequent plugging USB line of Pico.

Specifications

:
Size: 114mm (L) * 78.5 mm (W) *11mm (H)
Supply voltage: 5V (provided by PICO)
Package contents: 1. Pico Expansion Plus S1*1
