Human Presence Sensing Module LD2410 & Millimeter Wave Relay Powered by AC 100~240V Controled by GPIO Level
- 1.This product is composed of the human presence sensing module LD2410 and the relay;; 2.Supply voltage: DC5V & AC100240V; Relay allows access to the load:250V/5A;; 3.With relay working indicator, it is convenient to check the working status of the relay;; 4.Optocoupler isolation circuit, strong anti-interference ability, stable work;; 5.This product can be used in household appliances, industrial equipment, intelligent environment and other occasions.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

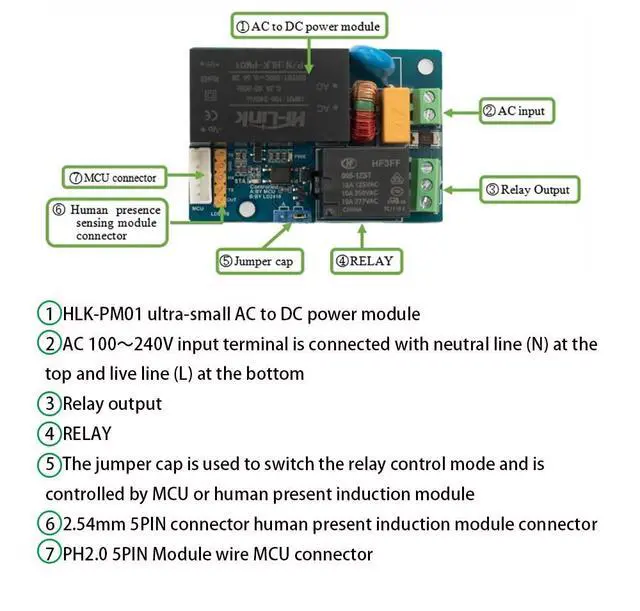

Overview: This product is composed of the human presence sensing module LD2410 and the relay, which can be powered by 100~240V AC power supply and used in combination with the human presence sensing module to control the relay. MCU 5V power supply can also be used, and GPIO level is used to control the relay. This product can be used in household appliances, industrial equipment, intelligent environment and other occasions.

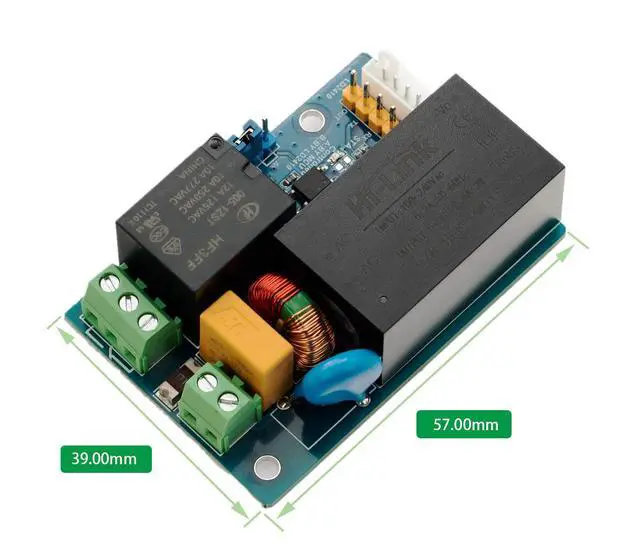

Size: 57mm (Length) *39mm (width)
Optocoupler: LTV-357T-B-IN
Supply voltage: DC5V & AC100240V Package contents 1. SG-RELAY-S2410*1 2. PH 2.0 mm 5PIN*1

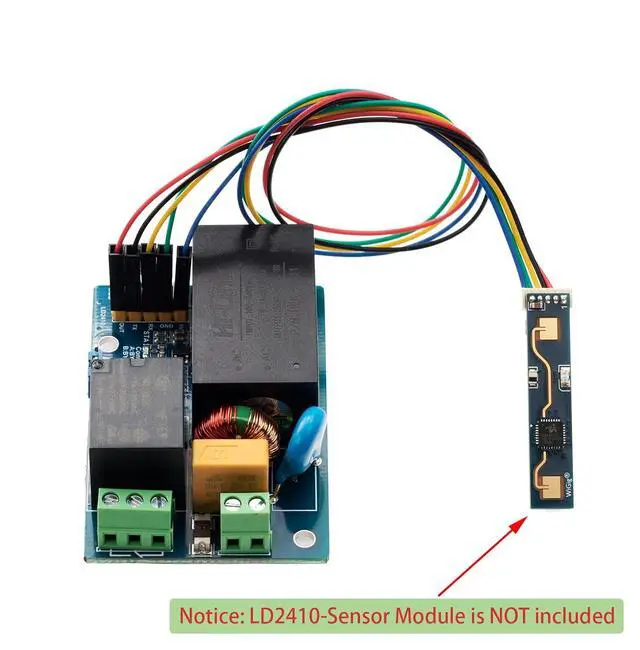

Note: 1. LD2410-Sensor Module is NOT included
Specifications
:Size: 57mm (Length) *39mm (width)
Optocoupler: LTV-357T-B-IN
Supply voltage: DC5V & AC100240V Package contents 1. SG-RELAY-S2410*1 2. PH 2.0 mm 5PIN*1
Note: 1. LD2410-Sensor Module is NOT included
