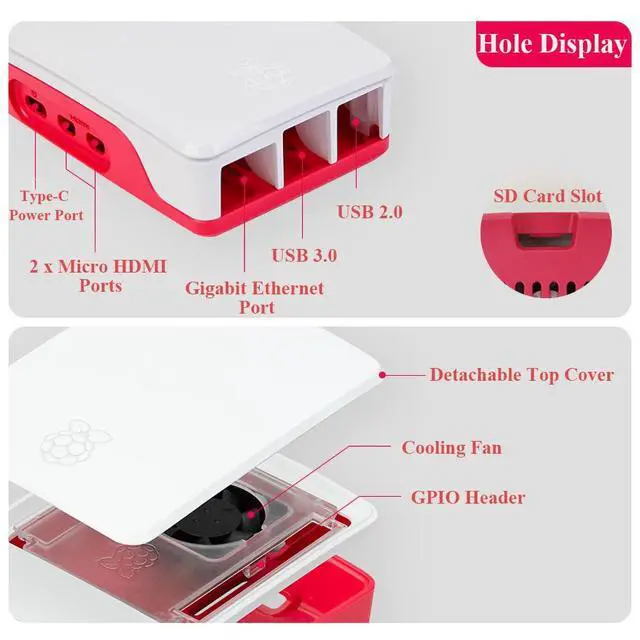

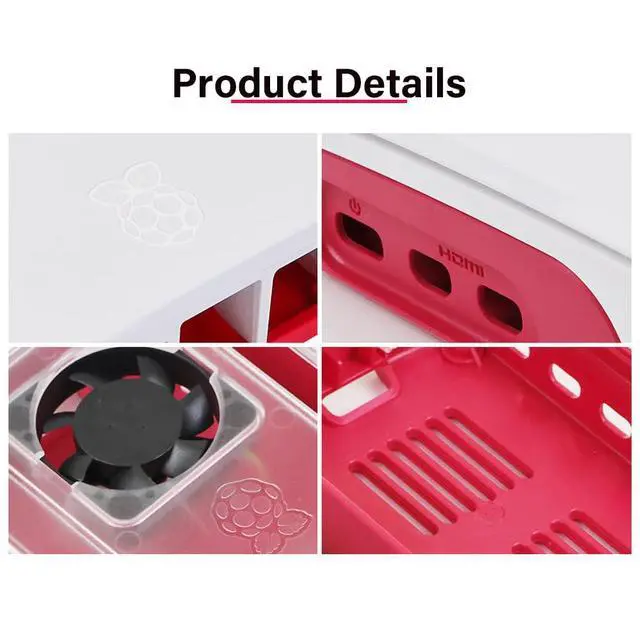

for Raspberry Pi Official Case Fits Raspberry Pi 5 with Built-in Cooling Fan Red/White Color Precise Openings for Sorts of Connectors

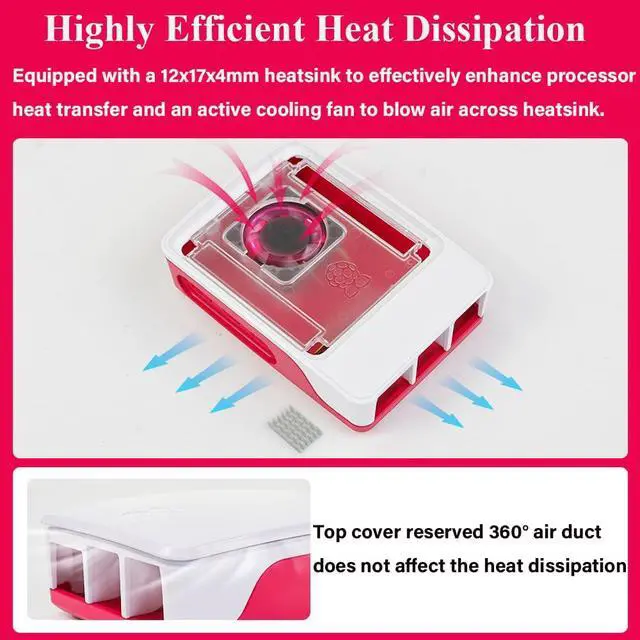

- Optimal Heat Dissipation: By using a self-adhesive heat sink with dimensions of 2 mm x 17 mm x 4 mm, this product maximises the thermal conductivity of the processor. It dissipates heat efficiently, ensuring reliable and consistent performance while preventing any potential overheating issues.; Improved Design: This upgraded version of the case builds on the aesthetics of its predecessor while introducing a wealth of new features for improved usability and efficient thermal management. The integrated 2.79 (max) CFM fan with hydrodynamic bearings allows for low noise and longer service life.The fan can be easily connected via a four-pin JST connector for temperature-controlled cooling.; Excellent Cooling Efficiency: The product is designed with a slim chassis for an easy and hassle-free installation process without the need to remove the card. Meanwhile, the combination of built-in fan and efficient heatsink design.Your device will maintain optimal performance even under high load tasks.; Efficient Airflow System: The 360-degree slot under the lid acts as an inlet and air is drawn in to pass through the heat sink connected to the BCM2712AP. The exhausted air then passes through connector openings and vents located on the base to ensure effective ventilation and efficient heat dissipation.; Easily Accessible: With a removable cover, users can easily access the fan, cable connectors, and GIOs for increased user convenience. This feature facilitates seamless installation of HATs
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification Input voltage: 5 V DC (powered via four-pin fan connector on Raspberry Pi 5)
Fan speed control: Pulse width modulation control with tachometer
Maximum airflow: 2.79
CFM Maximum Fan Speed: 8000 RPM ± 15%. Housing materials ABS (base, frame, cover) and PC (fan assembly)
Dimensions: 100 x 72 x 34 mm / 3.94 x 2.83 x 1.34 inches
Color: Red/White
Weight: 68.3 g
Package Contents: XI-RPi 5 Official Case x1
Fan speed control: Pulse width modulation control with tachometer
Maximum airflow: 2.79
CFM Maximum Fan Speed: 8000 RPM ± 15%. Housing materials ABS (base, frame, cover) and PC (fan assembly)
Dimensions: 100 x 72 x 34 mm / 3.94 x 2.83 x 1.34 inches
Color: Red/White
Weight: 68.3 g
Package Contents: XI-RPi 5 Official Case x1
