Pico Expansion Mini Board for Raspberry Pi Pico - Compatible Development Board with Rich I/O Ports, RGB LED, Micro SD, Audio, Mic, DS1302, Power Charging and Grove Connectors
- Compatible with Raspberry Pi Pico Series - This expansion board is designed to seamlessly integrate with Pi Pico, offering a wide range of I/O ports and modules for enhanced functionality.; Rich Resource Modules - Features DS1302 clock module, full-color RGB LED, microphone, audio module, buzzer, SD card slot, and 6 Grove I/O connectors for versatile project development.; Onboard Battery Management - Equipped with a lithium battery charging function, allowing you to power your projects and charge the battery simultaneously via a single Type-C cable.; Transparent Working Status - Each GPIO port is accompanied by a status LED, providing clear visual feedback during operation for easy debugging and monitoring.; Example Programs Provided - Comes with sample code for all onboard modules, making it easier for beginners and experts alike to start developing immediately.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

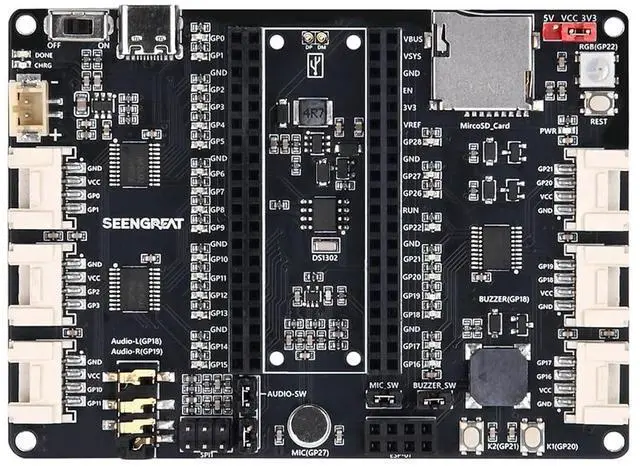

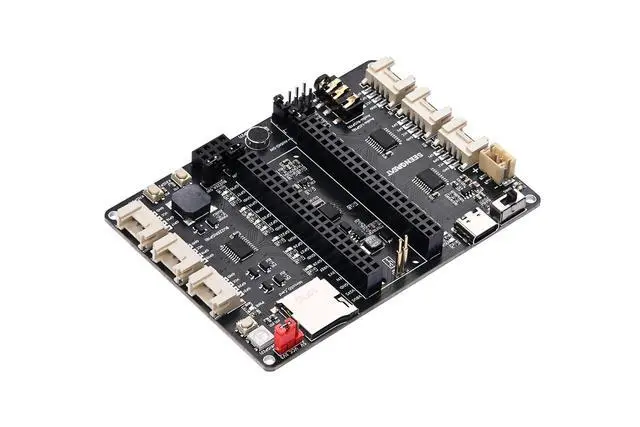

Overview The Pico Expansion Mini Board is a powerful and versatile development board designed specifically for the Raspberry Pi Pico series. This expansion board is packed with rich resource modules and extended I/O ports, making it an ideal choice for hobbyists, educators, and professionals looking to expand the capabilities of their Pi Pico.
Key Features:

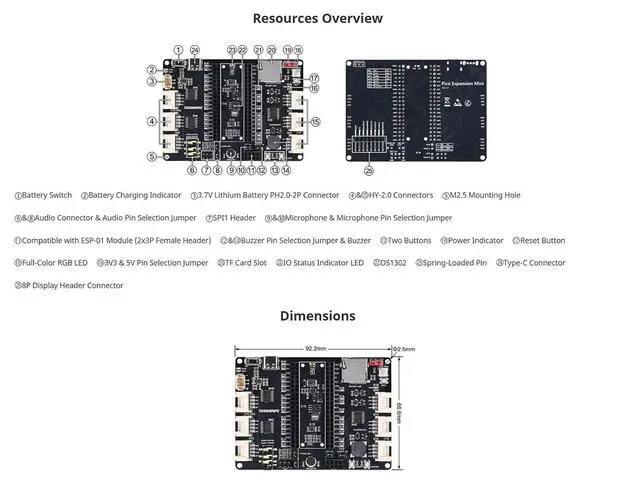

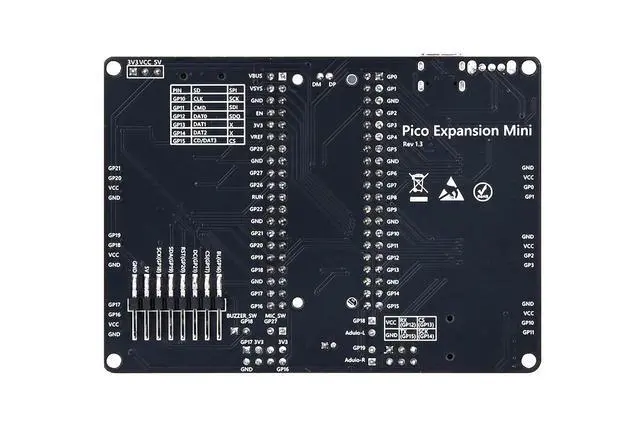

Compatibility: Fully compatible with the Pi Pico series, this board allows you to easily connect and expand your projects using the 2x20PIN female header. The clear pin markings and status LEDs ensure hassle-free usage and measurement.
Rich I/O Ports: With 6 HY- 2.0 -4P connectors, you can effortlessly connect additional modules using 2.0 mm pitch ribbon cables. The onboard jumper cap allows you to select between 5V and 3.3V power supply for connected modules.

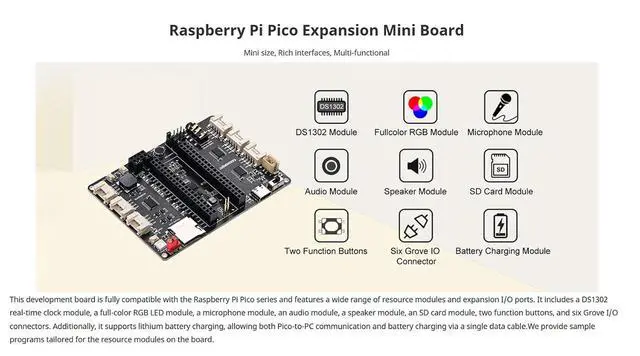

Onboard Modules: The board includes a Micro SD card slot, full-color RGB LED (WS2812), 3.5 mm audio jack, buzzer, microphone, DS1302 real-time clock, and functional buttons, providing everything you need for a wide range of projects.

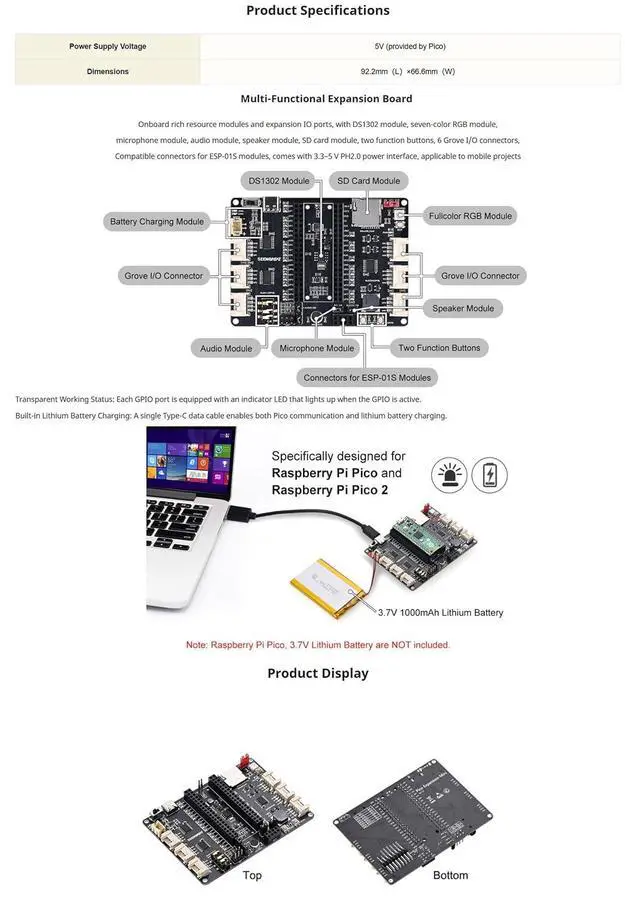

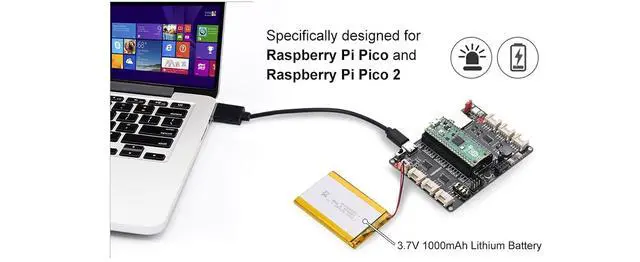

Battery Management: The integrated lithium battery charging module allows you to power your Pi Pico and charge the battery simultaneously using a single Type-C cable, making it perfect for portable projects.
Reset Button: Unlike the standard Pi Pico, this expansion board includes a reset button, simplifying the debugging and programming process.
Grove Connectors: With 6 Grove I/O connectors, you can easily connect additional sensors and modules, expanding the possibilities for your projects.
Example Programs: To help you get started quickly, we provide example programs for all onboard modules, ensuring a smooth development experience.
Applications: Whether you're working on IoT projects, robotics, audio processing, or data logging, the Pico Expansion Mini Board offers the flexibility and functionality you need. Its compact design and comprehensive features make it an excellent choice for both beginners and advanced users. Package Contents
1. Pico Expansion Mini
Key Features:
Compatibility: Fully compatible with the Pi Pico series, this board allows you to easily connect and expand your projects using the 2x20PIN female header. The clear pin markings and status LEDs ensure hassle-free usage and measurement.
Rich I/O Ports: With 6 HY- 2.0 -4P connectors, you can effortlessly connect additional modules using 2.0 mm pitch ribbon cables. The onboard jumper cap allows you to select between 5V and 3.3V power supply for connected modules.
Onboard Modules: The board includes a Micro SD card slot, full-color RGB LED (WS2812), 3.5 mm audio jack, buzzer, microphone, DS1302 real-time clock, and functional buttons, providing everything you need for a wide range of projects.
Battery Management: The integrated lithium battery charging module allows you to power your Pi Pico and charge the battery simultaneously using a single Type-C cable, making it perfect for portable projects.
Reset Button: Unlike the standard Pi Pico, this expansion board includes a reset button, simplifying the debugging and programming process.
Grove Connectors: With 6 Grove I/O connectors, you can easily connect additional sensors and modules, expanding the possibilities for your projects.
Example Programs: To help you get started quickly, we provide example programs for all onboard modules, ensuring a smooth development experience.
Applications: Whether you're working on IoT projects, robotics, audio processing, or data logging, the Pico Expansion Mini Board offers the flexibility and functionality you need. Its compact design and comprehensive features make it an excellent choice for both beginners and advanced users. Package Contents
1. Pico Expansion Mini
