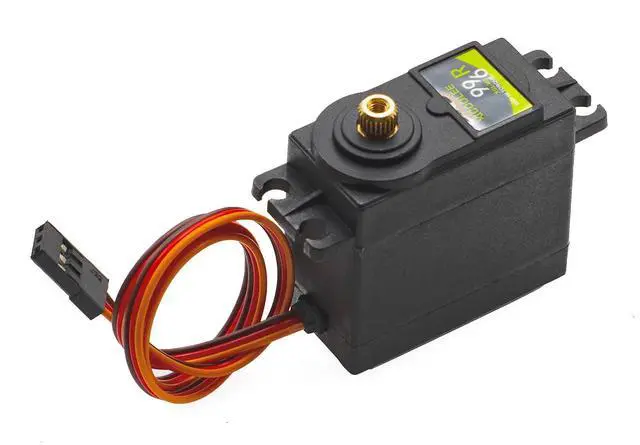

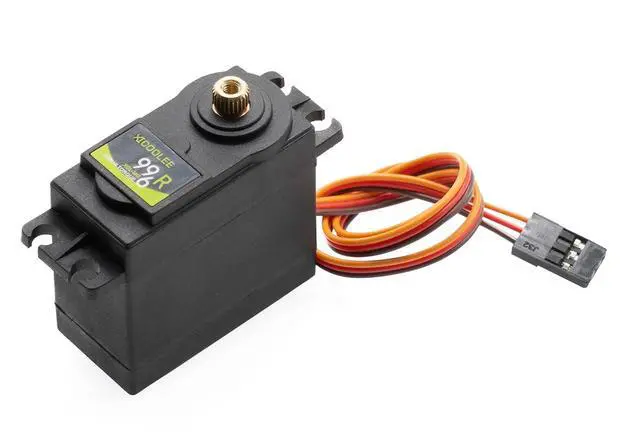

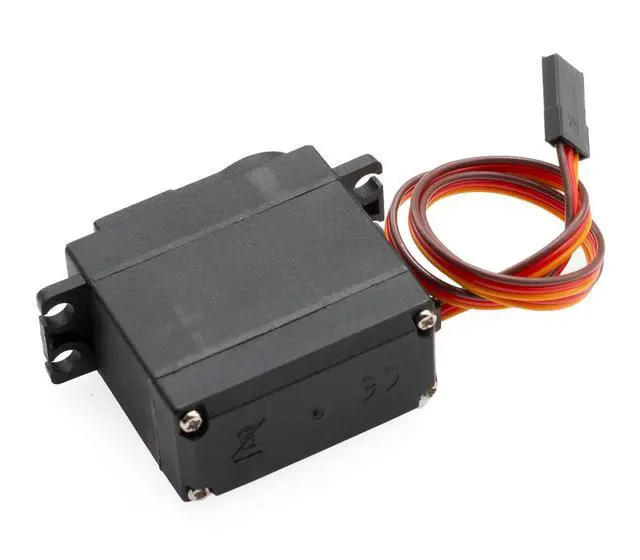

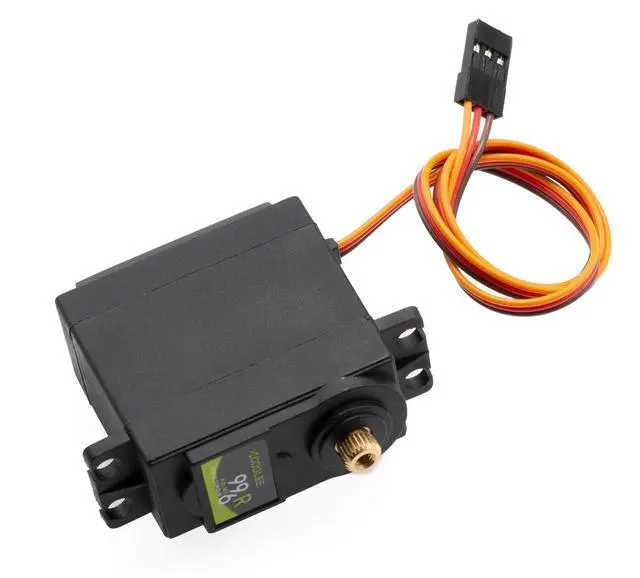

MG-996 55g Servo Metal Gear High Speed Torque Servo Digital Servo Motor for Programmable Biped Robots,Manipulators, Remote Control Boat, Smart Robot, Helicopter,DIY(10pcs)
- 1.Strong compatibility, whether it is the program or mechanical structure for standard building blocks, as far as possible compatible processing;; 2.Stall torque (at locked): 4.8V 11±0.1kg-cm6V 13±0.1kg-cm, Stall current (at locked): 4.8V 2000±30mA 6V 2200±30mA;; 3.Operating speed (at no load): 4.8V 0.12±0.01sec/60° 6V 0.11±0.01sec/60°,Running current (at no load): 4.8V 220±20mA 6V 250±20mA;; 4.It can be used in aircraft models, remote control, robots and other occasions where the angle needs to be controlled, with large torque and quick response;; 5.55g Servo ,control is simple, Supply Voltage:DC4.8V / DC6V, 3Pin 2.54mm DuPont cable Header.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview: The product can control the rotation speed and direction of the output shaft. It is made of environment-friendly POM plastic, which is small, light and not easy to be damaged. The internal integrated reduction gear can increase the torque and is suitable for programmable biped robots, manipulators, remote control ships, and models of 50-90 methanol fixed wing aircraft and 26-50cc gasoline fixed wing aircraft.
Voltage: DC 4.8V / DC6V Operating speed (at no load): 4.8V 0.12 ± 0.01 sec/60° 6V 0.11 ± 0.01 sec/60°
Running current (at no load): 4.8V 220±20mA 6V 250±20mA
Stall torque (at locked): 4.8V 11± 0.1 kg-cm6V 13± 0.1 kg-cm
Stall current (at locked): 4.8V 2000±30mA6V 2200±30mA
Idle current (at stopped): 4±1mA
Weight: 55g Storage
Temperature Range: -2060
Operating Temperature Range: -1050
Control system: Change the pulse width
Amplifier type: Analog controller
Operating travel: 90±3° (in 10002000sec)
Left&Right travelling: 3°
Centering deviation: 1°
Neutral position: 1500sec
Dead band width: 5sec
Rotating direction: Counter Clockwise (15001000sec)
Pulse width range: 8002200sec
Maximum travel: About 145° (in 8002200sec)
Connect Wire Definitions: Red lead -VCC, Brown lead -GND, Yellow lead -PWM

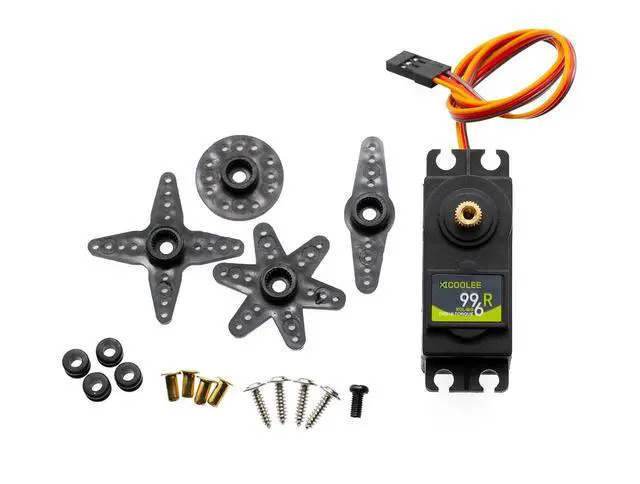

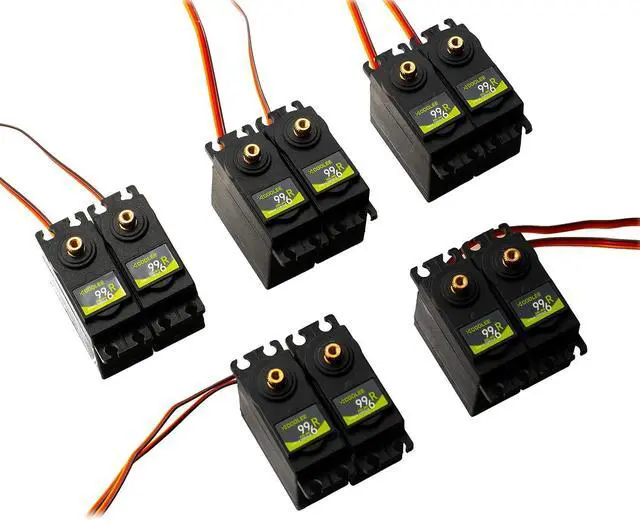

Package contents: 1. MG-996 Micro Servo motor×10
Specifications
: SupplyVoltage: DC 4.8V / DC6V Operating speed (at no load): 4.8V 0.12 ± 0.01 sec/60° 6V 0.11 ± 0.01 sec/60°
Running current (at no load): 4.8V 220±20mA 6V 250±20mA
Stall torque (at locked): 4.8V 11± 0.1 kg-cm6V 13± 0.1 kg-cm
Stall current (at locked): 4.8V 2000±30mA6V 2200±30mA
Idle current (at stopped): 4±1mA
Weight: 55g Storage
Temperature Range: -2060
Operating Temperature Range: -1050
Control system: Change the pulse width
Amplifier type: Analog controller
Operating travel: 90±3° (in 10002000sec)
Left&Right travelling: 3°
Centering deviation: 1°
Neutral position: 1500sec
Dead band width: 5sec
Rotating direction: Counter Clockwise (15001000sec)
Pulse width range: 8002200sec
Maximum travel: About 145° (in 8002200sec)
Connect Wire Definitions: Red lead -VCC, Brown lead -GND, Yellow lead -PWM
Package contents: 1. MG-996 Micro Servo motor×10
