for Jetson Nano Camera IMX219 8MP with IMX219 Sensor 8 Megapixels Fixed-Focus 77 Degree FOV 3296 * 2512 Resolution 15P-1.0 MIPI Interface 30 fps
- The IMX219-77 is equipped with CMOS image sensor IMX219, ISP (image signal processing), high-speed video shooting, lens shading compensation function; This IMX219 8MP 77 camera sensor adopts HD camera,8 Megapixel, fixed focus 77 degrees wide angle of view, supporting for Jetson Nano developer kit; Lens Specifications: CMOS Size: 1/4"; F/No: 2.0; EFL: 2.93mm; FOV: 77 degrees; TV Distortion: <1.0%; Maximum Resolution: 3296x2512; Supply Voltage: 3.3V(pin15); The IMX219 8MP camera module adopts 15P-1.0 MIPI interface, weights only 3g, compact size; This camera meets the basic functional requirements of high sensitivity, high frame rate shooting for high-performance photography applications, suitable for AI projects such as: face recognition, road mark detection and License plate recognition etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

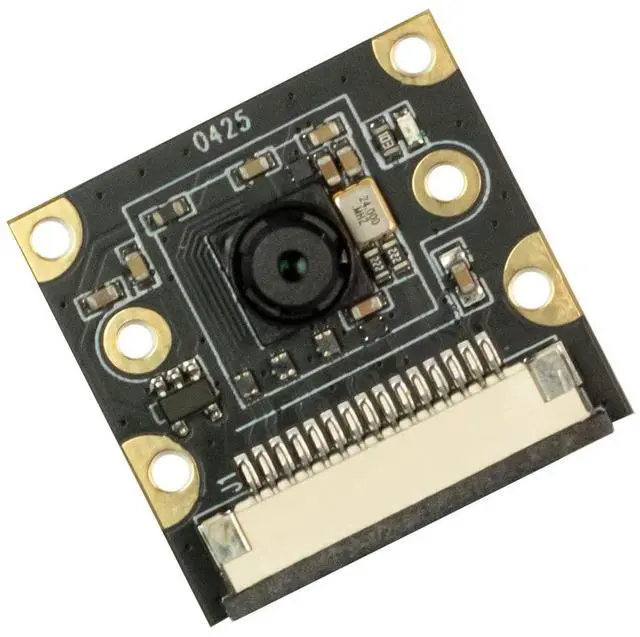

Overview: This IMX219-77 camera module is equipped with IMX219 CMOS image sensor. The HD camera is 8 Megapixel, marvelous anti blurring characteristics, onboard 15P- 1.0 MIPI interface, weights only 3g, adopts fixed focus mode, compatible with Jetson Nano operating system.

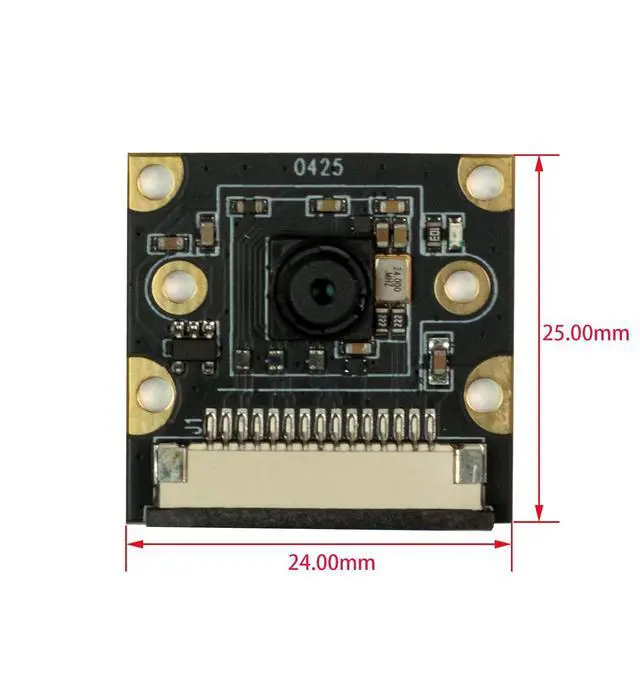

Size: 25mm (Length) *24mm (Width) * 5.3 mm (High) ± 0.2 mm
Temperature (Operation): -2070
Temperature (Stable Image): 050
Assembly Technique: SMT (ROSH)
Focus: Fixed
Object Distance: 30CM-Infinity
Resolution: 800LW/PH (Center)
Interface: 15P- 1.0 MIPI
Supply Voltage: 3.3V (pin15)
Operating System: Jetson
Nano Sensor: IMX219 (1/4")
Sensor Package: PLCC, Bare Die
Maximum Resolution: 3296*2512
Sensitivity: 600mv/(lux-sec)
Pixel Size: 1.12 µm x 1.12 µm Maximum
Image Transfer Rate: 30 fps for
QSXGA S/N Ratio: 39db
Dynamic Range: 69db
Shutter type: Variable Speed
Shutter Output Formats: 8/10bit RGB
RAM Output Lens Construction: 4P
F/No: 2.0
EFL: 2.93 mm
BFL (Optical): 1.16 mm
FOV: 77°
TV Distortion: < 1.0 % Relative
Illumination (Sensor): 70%
IR Filter: 650±10nm
Package: Anti-electrostatic tray Infrared
Fill Light Lamp: No
Package Contents: 1. IMX219-C8M-77(Non-night Vision) x1 2. 15P- 1.0 MIPI connecting cable x1

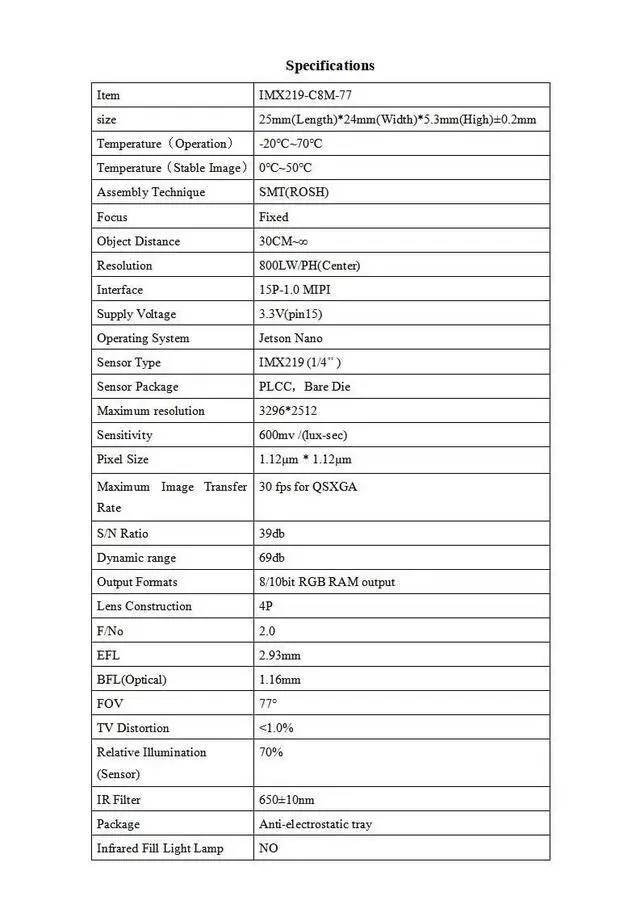

Specifications
:Size: 25mm (Length) *24mm (Width) * 5.3 mm (High) ± 0.2 mm
Temperature (Operation): -2070
Temperature (Stable Image): 050
Assembly Technique: SMT (ROSH)
Focus: Fixed
Object Distance: 30CM-Infinity
Resolution: 800LW/PH (Center)
Interface: 15P- 1.0 MIPI
Supply Voltage: 3.3V (pin15)
Operating System: Jetson
Nano Sensor: IMX219 (1/4")
Sensor Package: PLCC, Bare Die
Maximum Resolution: 3296*2512
Sensitivity: 600mv/(lux-sec)
Pixel Size: 1.12 µm x 1.12 µm Maximum
Image Transfer Rate: 30 fps for
QSXGA S/N Ratio: 39db
Dynamic Range: 69db
Shutter type: Variable Speed
Shutter Output Formats: 8/10bit RGB
RAM Output Lens Construction: 4P
F/No: 2.0
EFL: 2.93 mm
BFL (Optical): 1.16 mm
FOV: 77°
TV Distortion: < 1.0 % Relative
Illumination (Sensor): 70%
IR Filter: 650±10nm
Package: Anti-electrostatic tray Infrared
Fill Light Lamp: No
Package Contents: 1. IMX219-C8M-77(Non-night Vision) x1 2. 15P- 1.0 MIPI connecting cable x1
