1.44inch LCD Display Module for Raspberry Pi,128×128 Resolution RGB 65K Display Colors, Internal ST7735S Driver, TFT Display SPI Interface
- 1.44inch LCD Display ModuleThis is an LCD Display Module for Raspberry Pi, 1.44inch diagonal, 128x128 pixels, with embedded controller, communicating via SPI interface.; Standard for Raspberry Pi Connection Compatible for Raspberry Pi and can be inserted directly.; Convenient and PracticalThis 1.44 inch LCD Screen Module, pin occupancy is small, onboard a joystick six buttons, four buttons, easy for you to operate and use.; Clear and Colorful Display SPI Display color: RGB, 65K colors, ST7735S controller is built into the screen. Display size: 25.50 x 26.50 mm, Dimensions: 65.0 (L) x 30.2 mm (W).; Ideal ChoiceProvides open source demo codes that can be used with the intended for Raspberry Pi development board. Note:The for Raspberry Pi 4B and interface line in photos are NOT included.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

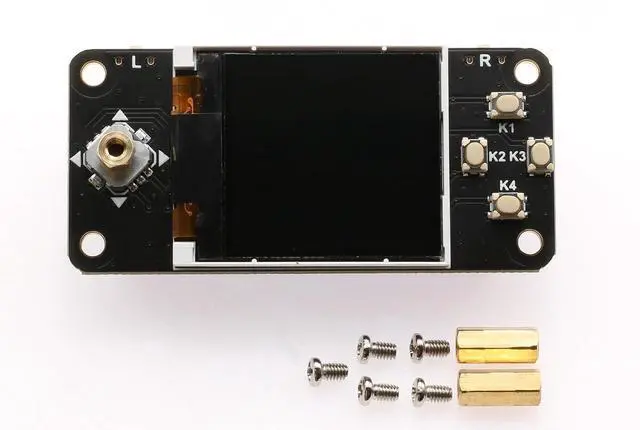

Overview: This LCD is a 1.44 -inch TFT display, onboard a joystick six buttons, resolution of 128*128, internal ST7735S controller, based on 40pin GPIO connector design, compatible with Raspberry Pi, can use SPI interface communication, provide compatible with Raspberry Pi C, python version of the demo codes, it can realize points, lines, rectangles, circles painting, but also English characters, pictures display.

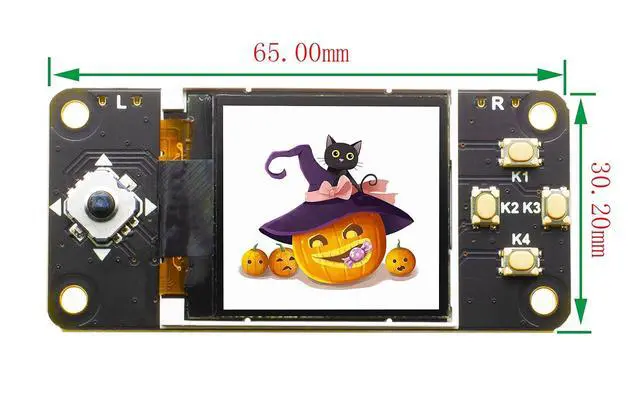

Dimensions: 65mm (L) * 30.2 mm (W)
Resolution power: 128*128
Display Color: RGB65K colors
Control chip: ST7735S
backlight control: LED
Signal interface: SPI
Supply voltage: 3.3V
LCD display area: 25.5 mm (W) * 26.5 mm (H)
Package contents: 1.1. 44 inch LCD Display Module x1
2. Copper pillars x2
3.

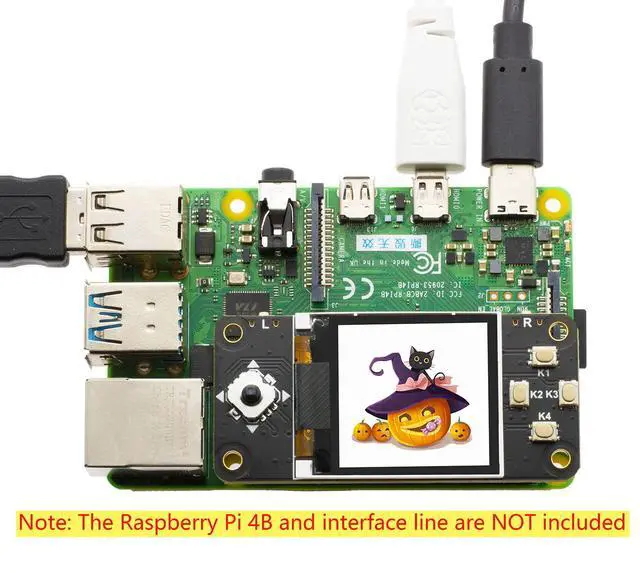

Screws x5 Note: The for Raspberry Pi 4B and interface line in photos are NOT included.
Specifications
:Dimensions: 65mm (L) * 30.2 mm (W)
Resolution power: 128*128
Display Color: RGB65K colors
Control chip: ST7735S
backlight control: LED
Signal interface: SPI
Supply voltage: 3.3V
LCD display area: 25.5 mm (W) * 26.5 mm (H)
Package contents: 1.1. 44 inch LCD Display Module x1
2. Copper pillars x2
3.
Screws x5 Note: The for Raspberry Pi 4B and interface line in photos are NOT included.
