Universal e-Paper Raw Panel Driver HAT Supports Various SPI e-Paper Raw Panels, Compatible with Raspberry Pi 5/4B /3B+ /3B /2B+ /Zero W/Zero 2W/WH Jetson Nano/STM32
Limited time offer, ends 07/19 By EmpressTech
- Based on the Raspberry Pi 40pin GPIO header, E-Paper Driver HAT is suitable for Raspberry Pi series boards and Jetson Nano.; Onboard SPI control interface,for use with other controller boards like Raspberry Pi/Jetson Nano/STM32/forArduino; The onboard voltage converter is compatible with the 3.3V and 5V ports of the MCU. Operating voltage: 3.3V/5V (Please make sure the power supply is consistent with the logic voltage, otherwise it can not be operated normally.); Comes with adapter board and FFC cable. Expanding display interface via FFC cable, for easy connecting to the e-paper; Compatible with multiple e-paper models and various motherboards
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

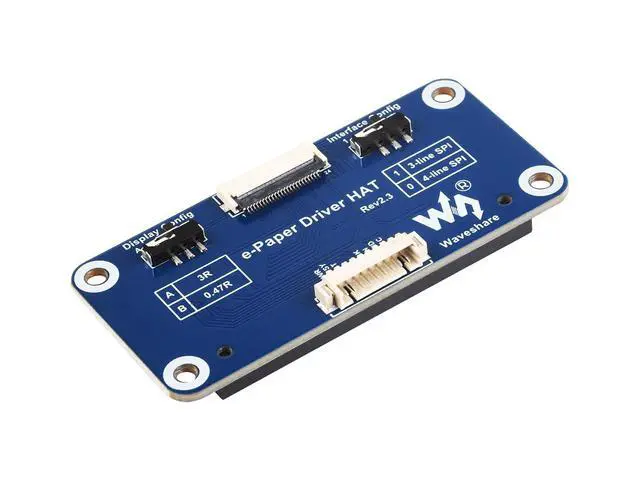

Universal e-Paper Driver HAT, supports various Waveshare SPI e-Paper raw panels, Supports controller boards like Raspberry Pi/Jetson Nano/forArduino/STM32 Features
1. Based on the Raspberry Pi 40pin GPIO header, E-Paper Driver HAT is suitable for Raspberry Pi series boards and Jetson Nano.
2. Onboard SPI control interface, for use with other controller boards like Raspberry Pi/Jetson Nano/STM32/forArduino
3. The onboard voltage converter is compatible with the 3.3V and 5V ports of the MCU.
Operating voltage: 3.3V /5V (Please make sure the power supply is consistent with the logic voltage, otherwise it can not be operated normally. )

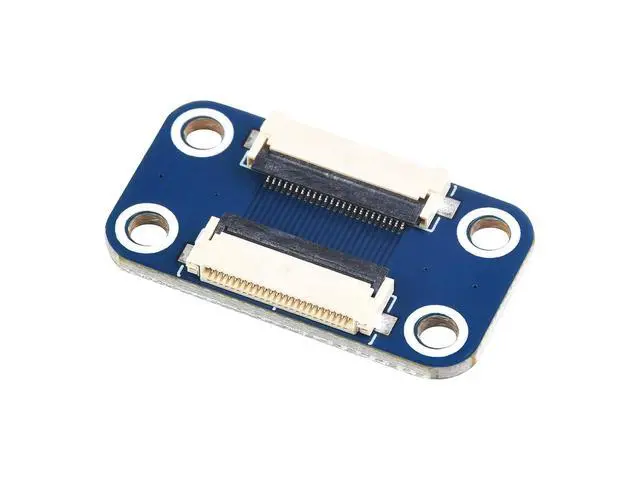

4. Comes with adapter board and FFC cable. Expanding display interface via FFC cable, for easy connecting to the e-paper
5. Compatible with multiple e-paper models and various motherboards
6. Comes with Online Development Resources and Manual (examples for
Raspberry Pi/Jetson Nano/forArduino/STM32): bit.
ly/3TQg5c9
Interface: 3-wire SPI, 4-wire
SPI Outline dimensions: 65.0 × 30.2 mm
Mounting hole size: 3.0 mm Package Content E-Paper Driver HAT x1 RPi screws pack (2pcs) x1 GH 1.25 9PIN cable ~20cm x1
1. Based on the Raspberry Pi 40pin GPIO header, E-Paper Driver HAT is suitable for Raspberry Pi series boards and Jetson Nano.
2. Onboard SPI control interface, for use with other controller boards like Raspberry Pi/Jetson Nano/STM32/forArduino
3. The onboard voltage converter is compatible with the 3.3V and 5V ports of the MCU.
Operating voltage: 3.3V /5V (Please make sure the power supply is consistent with the logic voltage, otherwise it can not be operated normally. )
4. Comes with adapter board and FFC cable. Expanding display interface via FFC cable, for easy connecting to the e-paper
5. Compatible with multiple e-paper models and various motherboards
6. Comes with Online Development Resources and Manual (examples for
Raspberry Pi/Jetson Nano/forArduino/STM32): bit.
ly/3TQg5c9
Specifications
Operating voltage: 3.3V /5VInterface: 3-wire SPI, 4-wire
SPI Outline dimensions: 65.0 × 30.2 mm
Mounting hole size: 3.0 mm Package Content E-Paper Driver HAT x1 RPi screws pack (2pcs) x1 GH 1.25 9PIN cable ~20cm x1
