Sipeed Tang Nano 9K FPGA Development Board, Open Source RISC-V PicoRV MCU, with GW1NR-9 Chip 8640 LUT4 32Mbits SPI Flash, Single Board Computer Support TF Card RGB SPI LCD HDMI Port

Attention

1, It is recommended to use the following version of IDE: 1.9.6.02 (43263) to avoid

failure to download.

Download link on:

Gowin official website => Support => GOWIN EDA home =>Download GOWIN EDA => VI.9.6

2, Avoid using JTAG, MODE0/1 and DONE pins. If you must use these pins,please

refer to the

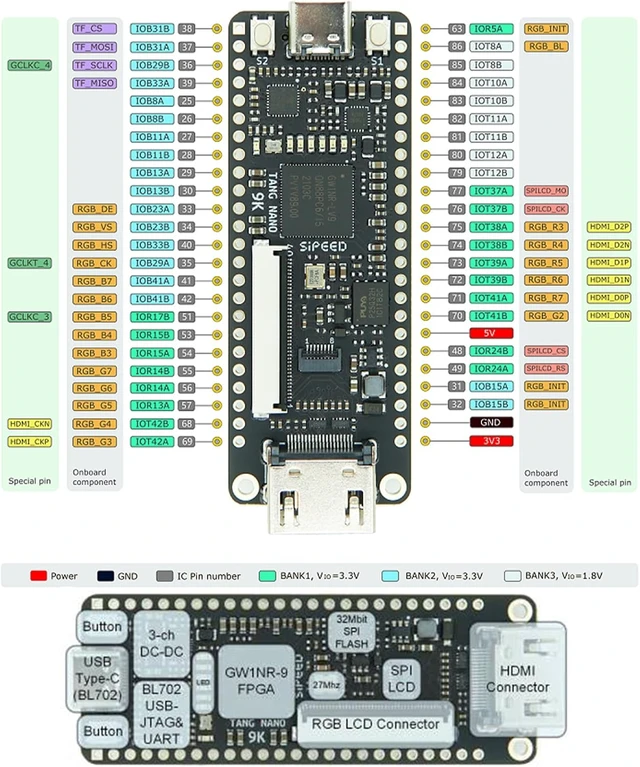

4, The working voltage of each GPIO has been marked in the schematic. Please do

not let the actual working voltage of GPIO exceed the rated value, otherwise it willcause permanent damage to PCBA;5. When connecting FPC flexible cable, please ensure that the cable is completelyinserted into the cable without offset

S, Please avoid any liquid or metal touching the pads of components on PCBA.

;

3. Please pay attention to avoid static electricity hitting PCBA; Please release the

static electricity from the hand before contacting PCBA;
