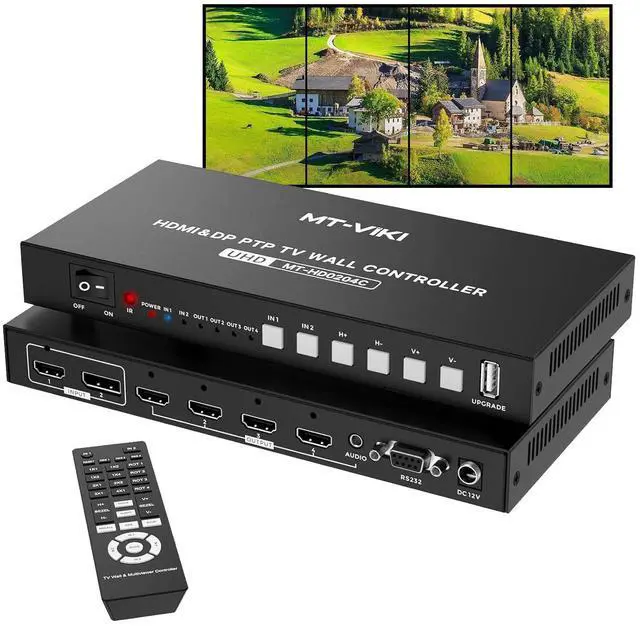

4K@60Hz HDMI+DP Video Wall Controller 2X2, Support 90°/ 180° /270° Rotate, Support Resolution UP to 4K@60Hz for 2X2 Mode, 8K@60Hz for 1X4 Mode (2 Input 4 Output)
- Special Point-to-Point display: This HDMI video wall controller includes 1 HDMI and 1 Displayport Input with 7680x1080@60Hz resolution and 4 HDMI outputs with 1920*1080@60Hz. For 2X2 display mode, support 4K@60Hz output; 1x4 mode(7680x1080@60Hz output), 1x3 mode(5760x1080 output), 3x1 mode(1920x3240 output), 2x1mode(1920x2160 output), 4x1 mode(1920x4320 output).; 90° 180° 270° IMAGE ROTATION: The video wall controller supports image 90° 180° 270° rotating. This makes ultra-squeezed liquid crystal display can also show images or videos without any loss of resolution.; Supports 8 different Video Wall modes for the screen in landscape or portrait orientation, 1x1, 1x2, 1x3, 1x4, 2x2, 2x1, 3x1, 4x1.; 4 SWITCHING WAYS: 1. Press button 2. IR Remote Control 3.DIP Switching (on the bottom of this video wall controller ) 4. RS232 Series port. Come with 3.5mm audio out for speaker, Support audio de-embedding; WHAT YOU GET: The package includes: 2x2 Video Wall Controller x 1, Power Adapter x 1, IR Remote Control x 1, Mounting Ears x 1. Feel free to contact us if you have any questions or concerns.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description 2X2 Video wall controller 2X2 Video wall controller 2X2 Video wall controller 3x3 Video wall controller 2X2 Video wall controller 8X8 Seamless HDMI Matrix Switch 8X8+ 2X4 video wall controller Add to Cart Add to Cart Buying Options Buying Options Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 5 4.6 out of 5 stars 5 4.2 out of 5 stars 14 4.2 out of 5 stars 14 5.0 out of 5 stars 3 3.6 out of 5 stars 24 Price $ 279.00 $279. 00 $ 319.00 $319. 00 no data no data $ 159.00 $159.
00 $ 485.00 $485. 00 Input HDMI *2 HDMI *2 HDMI *1 HDMI *1 HDMI *1 HDMI *8 Output HDMI *4 HDMI *4 HDMI *4 HDMI *9 HDMI *4 HDMI *8 VW Config 1x1, 1x2, 1x3, 1x4, 2x2, 2x1, 3x1, 4x1 1x1, 1x2, 1x3, 1x4, 2x2, 2x1, 3x1, 4x1 1x1, 1x2, 1x3, 1x4, 2x2, 2x1, 3x1, 4x1 1x1, 1x2, 1x3, 1x4, 2x1, 2x2, 2x3, 2x4, 3x1, 3x2, 3x3, 4x1, 4x2 2x2, 1x2, 1x3, 1x4 2x1, 3x1, 4x1 4x2/2x4/2x2/1x8/8x1 etc Resolution 4K30Hz 4K60Hz 4K30Hz 1080P 4K60Hz 4K30Hz Rotate Function 180° Rotate 90° 180° 270° 360° Rotate X X 180° Rotate X 2x2 Video wall controller 2 in 4 out, MT-HD0204C This video wall controller includes 1 HDMI & 1 Displayport inputs with 7680x1080@60Hz resolution and 4 HDMI outputs with 1080P resolution.
It can output a maximum of one video source to four display devices with a resolution up to 7680x1080@60Hz.
Specification OUTPUT: 4 HDMI outputs to connect to displays
INPUT: 1 HDMI & 1 DP input ports (can't display at the same time)
AUDIO OUT: for the audio de-embedded
DC 12V: power supply Supports image 90°, 180°, 270° degrees rotation for the screen in landscape or portrait orientation This 4K video wall controller supports 8 different Video Wall modes for the screen in landscape or portrait orientation, 1x1, 1x2, 1x3, 1x4, 2x2, 2x1, 3x1, 4x1. Function Supports 1 HDMI & 1 DP inputs, resolution up to 7680x1080@60Hz, Supports 4 HDMI with 1080P@60Hz resolution outputs Supports image 90°, 180°, 270° degrees rotation (good for the ceiling installation) Support audio de-embedding, the front rotary button can control the volume Supports the splicing edge adjustment Supports HDMI 2.0, HDCP 2.2 compatible Supports the IR remote, push-button, DIP, RS232 control
Support Daisy chain: To meet the different needs of applications, you can use 3 sets of controllers to set a 3x3 or use 5 sets of it to set 4x4 splicing function. 4 Ways to Control IR remote Push-button DIP Control RS232 control Audio de-embedding Come with 3.5 mm audio out for speaker, Supports audio de-embedding Special Point-to-Point display 2X2 display mode, support 4K@60Hz output 1x4 mode, support 7680x1080@60Hz output 1x3 mode, support 5760x1080@60Hz output 3x1 mode, support 1920x3240@60Hz output 2x1mode, support 1920x2160@60Hz output 4x1 mode, support 1920x4320@60Hz output 1 HDMI + 1 DP Input Work for different interface device Power Lock Prevent loose power supply, more stable Package 2x2 Video Wall Controller x 1 DC12V 3A Power Adapter x 1 IR Remote Control x 1 Mounting Ears & screw x 1set See More
00 $ 485.00 $485. 00 Input HDMI *2 HDMI *2 HDMI *1 HDMI *1 HDMI *1 HDMI *8 Output HDMI *4 HDMI *4 HDMI *4 HDMI *9 HDMI *4 HDMI *8 VW Config 1x1, 1x2, 1x3, 1x4, 2x2, 2x1, 3x1, 4x1 1x1, 1x2, 1x3, 1x4, 2x2, 2x1, 3x1, 4x1 1x1, 1x2, 1x3, 1x4, 2x2, 2x1, 3x1, 4x1 1x1, 1x2, 1x3, 1x4, 2x1, 2x2, 2x3, 2x4, 3x1, 3x2, 3x3, 4x1, 4x2 2x2, 1x2, 1x3, 1x4 2x1, 3x1, 4x1 4x2/2x4/2x2/1x8/8x1 etc Resolution 4K30Hz 4K60Hz 4K30Hz 1080P 4K60Hz 4K30Hz Rotate Function 180° Rotate 90° 180° 270° 360° Rotate X X 180° Rotate X 2x2 Video wall controller 2 in 4 out, MT-HD0204C This video wall controller includes 1 HDMI & 1 Displayport inputs with 7680x1080@60Hz resolution and 4 HDMI outputs with 1080P resolution.
It can output a maximum of one video source to four display devices with a resolution up to 7680x1080@60Hz.
Specification OUTPUT: 4 HDMI outputs to connect to displays
INPUT: 1 HDMI & 1 DP input ports (can't display at the same time)
AUDIO OUT: for the audio de-embedded
DC 12V: power supply Supports image 90°, 180°, 270° degrees rotation for the screen in landscape or portrait orientation This 4K video wall controller supports 8 different Video Wall modes for the screen in landscape or portrait orientation, 1x1, 1x2, 1x3, 1x4, 2x2, 2x1, 3x1, 4x1. Function Supports 1 HDMI & 1 DP inputs, resolution up to 7680x1080@60Hz, Supports 4 HDMI with 1080P@60Hz resolution outputs Supports image 90°, 180°, 270° degrees rotation (good for the ceiling installation) Support audio de-embedding, the front rotary button can control the volume Supports the splicing edge adjustment Supports HDMI 2.0, HDCP 2.2 compatible Supports the IR remote, push-button, DIP, RS232 control
Support Daisy chain: To meet the different needs of applications, you can use 3 sets of controllers to set a 3x3 or use 5 sets of it to set 4x4 splicing function. 4 Ways to Control IR remote Push-button DIP Control RS232 control Audio de-embedding Come with 3.5 mm audio out for speaker, Supports audio de-embedding Special Point-to-Point display 2X2 display mode, support 4K@60Hz output 1x4 mode, support 7680x1080@60Hz output 1x3 mode, support 5760x1080@60Hz output 3x1 mode, support 1920x3240@60Hz output 2x1mode, support 1920x2160@60Hz output 4x1 mode, support 1920x4320@60Hz output 1 HDMI + 1 DP Input Work for different interface device Power Lock Prevent loose power supply, more stable Package 2x2 Video Wall Controller x 1 DC12V 3A Power Adapter x 1 IR Remote Control x 1 Mounting Ears & screw x 1set See More
