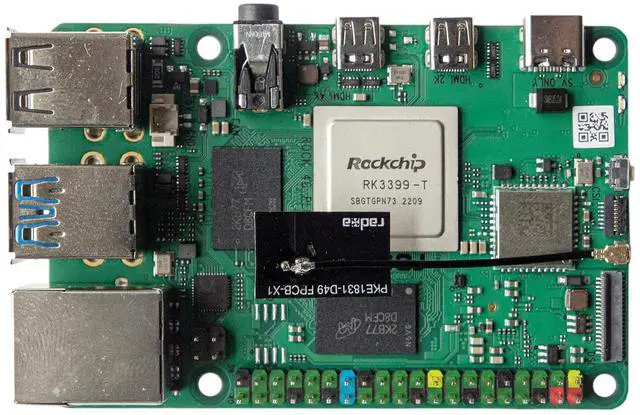

Rock PI 4C Plus (4C+) SBC, 4GB LPDDR4, Optional EMMC Capacity, Dual Screen,WI FI BT5.0 (UFL),Android 11/Ubuntu 20.04/Debian Bullseye
- ROCK Pi 4 Model C+ is a single board computer (SBC) by a Rockchip RK3399-T hexa-core processor @ 1.5 GHz, equipped with 4GB RAM, and two micro HDMI ports to drive up to one 4K display, and one 2K display.; ROCK Pi 4 Model C+ support dual HDMI output, Micro HDMI 2.0 port up to 4K @ 60 Hz; Micro HDMI 2.0 port up to 2K @ 60 Hz; 4-lane MIPI DSI via FPC connector (only 2 lanes if the SPI flash is soldered to the board); Dual independent display support (not three before the 2K HDMI and MIPI DSI interfaces are multiplexed); ROCK Pi 4 Model C+ including a 40-pin GPIO interface ,and also features a Gbit LAN for network, with dedicated bus and controller, it works without latency under heavy load network applications.On board 802.11 ac wifi offers 2.4G&5G WLAN connectivity. With Bluetooh 5.0, ROCK Pi benefits improved Bluetooth speed and greater range.; ROCK Pi 4 Model C+ provides support for Debian/Ubuntu Linux, Android 7.1/9.0/11 for the board, with open-source GPU drivers (that should be Panfrost), as well as hardware access/control library for Linux/Android. All RK3399/OP1 processors are software compatible; [sdk]http(s)://youyeetoo.com/blog/rock-pi-4cokdp3399001-198, any question click "youyeetoo" to ask.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Rock Pi 4C+ 4GB product details RK3399T 64bit hexa core processor Dual Cortex-A72, frequency 1.5GH z (oc to 2GHz) with quad Cortex-A53, 1.4G hz (os to 1.6GH z) with separate NEON coprocessor GPU Mali T860MP4 gpu, supports OpenGL ES 1.1 / 2.0 / 3.0 / 3.1 / 3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11. Memory LPDDR4 64bit dual channel LPDDR4@3200Mb/s, 4GB SPI Flash (optional) 32Mb SPI flash can be mounted - NVMe boot or e. g. Network boot via SPI supported* *will reduce available DSI lanes by 2 Wifi/BT Antenna (for Wifi model) Wifi/BT with external antenna support (uFL) Storage eMMC module (optional) Optional industrial level high performance eMMC module, 16G/32G/64G/128G available (click on module bottom side) Micro SD card SD card slot supports up to 128GB uSD card M.
2 SSD M. 2 (M) 2230 up to 2T M. 2 NVME SSD via PCIe 2.0 x4 interface Display HDMI Micro HDMI 2.0 up to 4k@60 (Type D), H. 265/VP9 (HEVC) hardware decode Micro HDMI 2.0 up to 2k@60 (Type D), H. 264 hardware decode Peripherals Display MIPI DSI MIPI DSI 4 lanes display via FPC connector Two of HDMI/HDMI2/MIPI DSI can work at the same time, support mirror or extend mode. Camera MIPI CSI MIPI CSI 2 lanes via FPC connector, support up to 8MP camera Audio Audio 3.5 mm jack with mic with improved mechanics HD codec that supports up to 24-bit/96kHz audio Output can drive 32Ohm head phones directly USB 3.0 USB 3.0 HOST x1 USB 3.0 OTG port x1 (upper one) default - DEVICE, activate - HOST via serial command GPIO header USB 2.0 2x USB HOST ports Network Wireless (wifi version only) Wireless 802.11 b/g/n/ac Bluetooth 5.0 LAN GbE LAN (with PoE support via add on PoE HAT) IO 40-pin expansion header: - 1 x UART - 2 x SPI bus - 2 x I2C bus - 1 x PCM/I2S - 1 x SPDIF - 1 x PWM - 1 x ADC - 6 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin Others Power button Dual pin PWM fan header (controller chip onboard) Power USB-C recommended 5V/5A Size 85mm x 54mm NOTE! Fits mechanically many of the existing Raspberry Pi 4 accessories Essentials You Need ROCK PI 4, Model A/B or Model C/C+ Power adapter with USB type C port equal or larger than (5V3A) 15W (or 5V5A - 25W with mounted SSD) MicroSD Card or eMMC module with eMMC-to-uSD adapter board Keyboard & Mouse Monitor with HDMI input
2 SSD M. 2 (M) 2230 up to 2T M. 2 NVME SSD via PCIe 2.0 x4 interface Display HDMI Micro HDMI 2.0 up to 4k@60 (Type D), H. 265/VP9 (HEVC) hardware decode Micro HDMI 2.0 up to 2k@60 (Type D), H. 264 hardware decode Peripherals Display MIPI DSI MIPI DSI 4 lanes display via FPC connector Two of HDMI/HDMI2/MIPI DSI can work at the same time, support mirror or extend mode. Camera MIPI CSI MIPI CSI 2 lanes via FPC connector, support up to 8MP camera Audio Audio 3.5 mm jack with mic with improved mechanics HD codec that supports up to 24-bit/96kHz audio Output can drive 32Ohm head phones directly USB 3.0 USB 3.0 HOST x1 USB 3.0 OTG port x1 (upper one) default - DEVICE, activate - HOST via serial command GPIO header USB 2.0 2x USB HOST ports Network Wireless (wifi version only) Wireless 802.11 b/g/n/ac Bluetooth 5.0 LAN GbE LAN (with PoE support via add on PoE HAT) IO 40-pin expansion header: - 1 x UART - 2 x SPI bus - 2 x I2C bus - 1 x PCM/I2S - 1 x SPDIF - 1 x PWM - 1 x ADC - 6 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin Others Power button Dual pin PWM fan header (controller chip onboard) Power USB-C recommended 5V/5A Size 85mm x 54mm NOTE! Fits mechanically many of the existing Raspberry Pi 4 accessories Essentials You Need ROCK PI 4, Model A/B or Model C/C+ Power adapter with USB type C port equal or larger than (5V3A) 15W (or 5V5A - 25W with mounted SSD) MicroSD Card or eMMC module with eMMC-to-uSD adapter board Keyboard & Mouse Monitor with HDMI input
