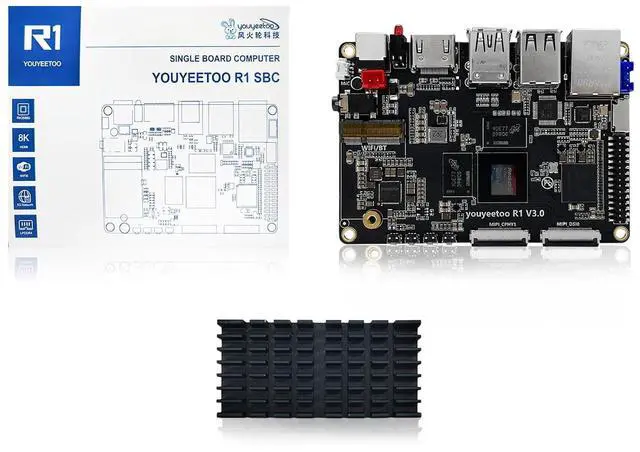

R1 Single Board Computer - Rockchip RK3588S/6 Tops NPU & 8K Display/Support HDMI 2.1, SATA 3.0, 2280 SSD, USB Host x5, Onboard NFC - AIoT Control/NAS/SBC (4GB RAM+32GB eMMC)
- The youyeetoo R1 is a Single Board Computer (SBC) designed by youyeetoo for the AIOT (AI of Things) market,supporting Debian 11 and Android systems, with features such as 5 USB interfaces, SATA 3.0, PCIe 2.0 interfaces, and support for 8K@60Hz video output.Feel free to ask a questions by click "youyeetoo" or mail am2#youyeetoo.com(# >>>@); [Shipping List] youyeetoo R1 x1, Heat sink x1 . The default system of the product is Android, you can change the system by USB-OTG or use SD card to start the system. Therefore, you need to prepare extra USB-A to A cable or SD card reader.; [Interface] Including Gigabit Ethernet, HDMI output (supports 8K), Type-C, M.2 PCIe2.0, dual MIPI cameras and screens, 3 * USB2.0, 1 * USB3.0, 4 * UART serial port, 2 * I2C, GPIO * 7, SPI * 1, ADC * 2, CAN * 1 and other common interfaces for the AIOT; [Online Wiki and Forum] We provide direct and effective support to our customers through the creation of a wiki and community. Through our community, you can learn about and give feedback on our products. We believe that "Talk is cheap. Show me the code." is the best annotation. Link:wiki.youyeetoo.com/en/r1, forum.youyeetoo.com; [NFC] The most distinctive feature is that the R1 SBC is also equipped with an NFC chip. You can use a mobile phone (android/IOS) to touch the motherboard to transfer data to each other, the youyeetoo team provides application example tutorials.; The default system of the product is Android, you can change the system by USB-OTG or
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
YOUYEETOO R1 is a compact SBC designed by WindFire Technology for AIOT applications.
Key features include:
Processor: RK3588s, an 8nm octa-core CPU with up to 2.4GH z, integrating a Mali-G610 MP4 GPU and a 6 TOPS NPU for AI tasks.
Interfaces: Rich connectivity with Gigabit Ethernet, HDMI 2.1 (8K@60Hz), Type-C, M. 2 PCIe 2.0, dual MIPI, 4 USB ports, and various communication interfaces.
Size: Card-sized at 100* 69.3 mm.
OS Support: Compatible with multiple OS options, suitable for edge computing, AI, and IoT.
NFC Feature: Includes an NFC chip for data transfer with mobile devices, with tutorial support from WindFire.
Hardware Specs:
CPU: Rockchip RK3588S, 8-core, 2.4GH z.
GPU: ARM Mali-G610 MP4, 450 GFLOPS.
RAM: Options for 4GB/8GB/16GB/32GB LPDDR4.
Storage: Supports eMMC, M. 2 NVMe/SATA SSD, and MicroSD.
Network: RJ45 Ethernet and M. 2 for wireless expansion.
Display: HDMI 2.1 and MIPI-DSI for high-resolution output. [Shipping List] youyeetoo R1 x1, Heat sink x1, 12V3A DC Power Supply, Debug Module x1. The default system of the product is Android, you can change the system by USB-OTG or use SD card to start the system. Therefore, you need to prepare extra USB-A to A cable or SD card reader. Feel Free to talk to us if you have any questions, click "youyeetoo" to ask.
Tech Support: youyeetoo Discord or forum. youyeetoo. com or am2#youyeetoo. com(#>>@)
Key features include:
Processor: RK3588s, an 8nm octa-core CPU with up to 2.4GH z, integrating a Mali-G610 MP4 GPU and a 6 TOPS NPU for AI tasks.
Interfaces: Rich connectivity with Gigabit Ethernet, HDMI 2.1 (8K@60Hz), Type-C, M. 2 PCIe 2.0, dual MIPI, 4 USB ports, and various communication interfaces.
Size: Card-sized at 100* 69.3 mm.
OS Support: Compatible with multiple OS options, suitable for edge computing, AI, and IoT.
NFC Feature: Includes an NFC chip for data transfer with mobile devices, with tutorial support from WindFire.
Hardware Specs:
CPU: Rockchip RK3588S, 8-core, 2.4GH z.
GPU: ARM Mali-G610 MP4, 450 GFLOPS.
RAM: Options for 4GB/8GB/16GB/32GB LPDDR4.
Storage: Supports eMMC, M. 2 NVMe/SATA SSD, and MicroSD.
Network: RJ45 Ethernet and M. 2 for wireless expansion.
Display: HDMI 2.1 and MIPI-DSI for high-resolution output. [Shipping List] youyeetoo R1 x1, Heat sink x1, 12V3A DC Power Supply, Debug Module x1. The default system of the product is Android, you can change the system by USB-OTG or use SD card to start the system. Therefore, you need to prepare extra USB-A to A cable or SD card reader. Feel Free to talk to us if you have any questions, click "youyeetoo" to ask.
Tech Support: youyeetoo Discord or forum. youyeetoo. com or am2#youyeetoo. com(#>>@)
