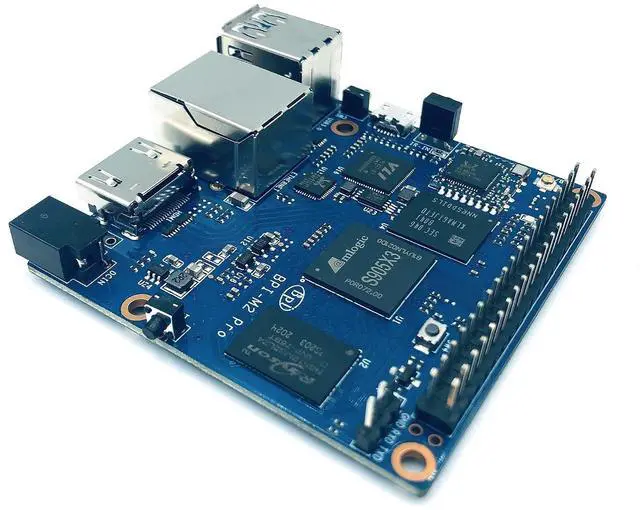

Banana Pi BPI-M2 Pro Amlogic S905X3 Single Board Computer for IOT Smart Home Control gatewa and NAS Server
- BPI-M2 Pro is powered by Amlogic S905X3 quad-core Cortex-A55 (2.0 XXGHz) processor, integrated G31 graphics processor, supports HDMI2.1 up to 4K@60HZ; Shipping List: 1x BPI-M2 Pro SBC; [WIKI] "docs.banana-pi.org/en/BPI-M2_Pro/BananaPi_BPI-M2_Pro"; if you have any questions, click "youyeetoo" to ask. Tech Support: youyeetoo Discord or forum. youyeetoo.com; armbian Ubuntu 6.x firmware: "armbian.com/bananapim2pro"; Onboard 2GB LPDDR4 RAM 16GB EMMC storage Supports 2xUSB 3.0, A GbE port; RT8821CU wifi&BT onboard: Dual-band 802.11 b/g/n/ac WiFi 5 1×1 and Bluetooth 4.2; BPI-M2 Pro same size as Banana Pi BPI-M2+ , and interface is also same .so can use BPI-M2+ case.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
If you have any questions, you can also leave a message. At the same time, we have a research and development team that can provide customized services. Support support @ youyeetoo.
com forum: forum. youyeetoo. com
Communication and customized consulting: charles @ youyeetoo. com If you need support or bulk inquiries, please also contact me. HardWare Specification of Banana pi BPI-M2 Pro CPU Amlogic S905X3 Quad-Core Cortex-A55 ( 2.0 xxGHz) GPU Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz) Memory 2 GB LPDDR4 Storage MicroSD slot with support for up to 256GB expansion and 16G eMMC Storage with support for up to 64GB
Network: 10/100/1000 Mbit/s
Ethernet Wifi&BT: Dual-band 802.11 b/g/n/ac WiFi 5 1×1 and Bluetooth 4.2 via Realtek RTL8821CU
Video Output (s): 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)
Audio Output (s): 1 x HDMI digital output
USB ports: 2x USB 3.0 host ports, 1x micro USB OTG port
GPIO40 Pin Header: GPIO (x28) and Power (+5V, + 3.3V and GND). GPIO pins can be used for UART, I2C, SPI or
PWM Switches: Reset, Power and
U-boot LED: Power Status and Activity status
Power Source: 5 volt @3A via DC port
Size & Weight: 65mm×65mm, 58g
OS: Android and Linux (same as M5)
com forum: forum. youyeetoo. com
Communication and customized consulting: charles @ youyeetoo. com If you need support or bulk inquiries, please also contact me. HardWare Specification of Banana pi BPI-M2 Pro CPU Amlogic S905X3 Quad-Core Cortex-A55 ( 2.0 xxGHz) GPU Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz) Memory 2 GB LPDDR4 Storage MicroSD slot with support for up to 256GB expansion and 16G eMMC Storage with support for up to 64GB
Network: 10/100/1000 Mbit/s
Ethernet Wifi&BT: Dual-band 802.11 b/g/n/ac WiFi 5 1×1 and Bluetooth 4.2 via Realtek RTL8821CU
Video Output (s): 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)
Audio Output (s): 1 x HDMI digital output
USB ports: 2x USB 3.0 host ports, 1x micro USB OTG port
GPIO40 Pin Header: GPIO (x28) and Power (+5V, + 3.3V and GND). GPIO pins can be used for UART, I2C, SPI or
PWM Switches: Reset, Power and
U-boot LED: Power Status and Activity status
Power Source: 5 volt @3A via DC port
Size & Weight: 65mm×65mm, 58g
OS: Android and Linux (same as M5)
