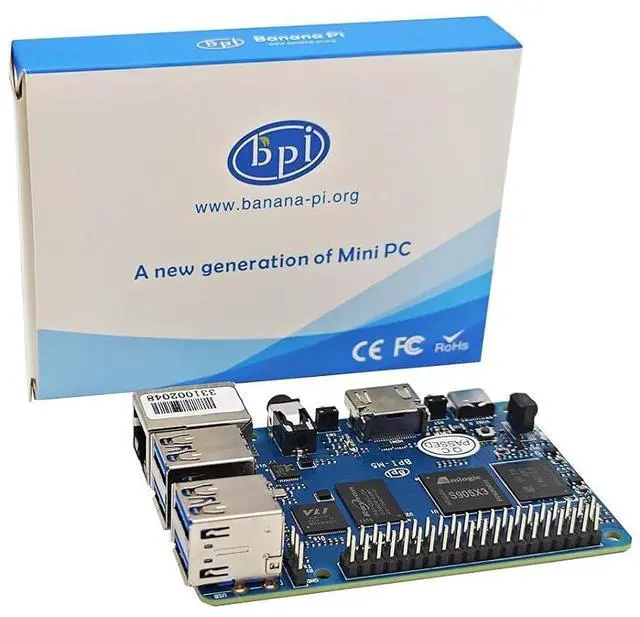

BPI-M5 Amlogic S905X3 Single Board Computer with 4GB RAM and 16G eMMC for AIOT Support Android Debian Raspbian Armbian

Product description BPI-M5 Introduction Banana Pi BPI-M5 is the next generation single board computer from Banana Pi in
2020. It is powered by Amlogic S905X3 quad-core Cortex-A55 (up to 2.0 GHz) processor. Onboard 4GB LPDDR4 memory and 16GB EMMC storage Supports 4 USB 3.0 interface and a gigabit network port.
bundle 1: only
BPI M5 bundle 2: BPI M5 with 5V3A Power & Type-C cabe bundle 3: BPI M5 with 5V3A Power & Type-C cabe, Acrylic
shell bundle 4: BPI M5 with Type-C cabe, Acrylic shell BPI M5 (with fan & case) BPI M2 PRO (small for box) Buying Options Add to Cart Customer Reviews 4.0 out of 5 stars 1 Price no data $ 79.99 $79. 99 CPU Amlogic S905X3 quad core Amlogic S905X3 quad core RAM 4GB LPDDR4 2GB LPDDR4 Storage 16GB eMMC flash 16GB eMMC flash Hardware 4 USB 3.0, 1 GbE ethernet, 1x HDMI 2.1 output 2xUSB 3.0, 1xMirco USB 2.0, 1xGbE ethernet, 1x HDMI 2.1 output SD Slot WiFi&BT Optional WiFi USB dongle WiFi&BT 5.0 onbard Power 5 volt @3A via Micro USB (TYPE C) 5 volt @3A via DC power Dimensions & weight 85mm x 56mm, 48g 65mm x 65mm, 58g HardWare Specification of Banana pi BPI-M5 CPU Amlogic S905X3 Quad-Core Cortex-A55 (up to 2.0 GHz) GPU Mali-G31 MP2 GPU (650Mhz) Memory 4 GB LPDDR4 Storage onboard 16GB EMMC, support up to 64GB, MicroSD slot with support for up to 256GB expansion Network 10/100/1000 Mbit/s Ethernet, Optional WiFi USB dongle Video Output (s) 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID) Audio Output (s) 3.5 mm jack and 1 x HDMI digital output USB ports USB 3.0 PORT (x4) GPIO 40
Pin Header: GPIO (x28) and Power (+5V, + 3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM Switches Reset, Power and U-boot LED Power Status and Activity status Power Source 5 volt @3A via Micro USB (TYPE C) Size & Weight 92x60mm, 48g OS Android 9.0 and Linux (Ubuntu /Debian/Rasbian) Development
1. Prepare a usb-serial cable (The serial cable is used for console debug) 2. a 5V/3A adaptor type-c power supply( type-c cable is used for android image download, ADB debug and power ) 3. (option) Prepare a SDcard at least 8GB for linux development, android only support emmc boot. 4. The SOC rom first boot media is emmc, so board can't bootup from SDcard if the emmc is bootable with any image flashed, more info please refer to board boot sequence.
5. In Android SDcard is mmc0, emmc is mmc1, but in Linux SDcard is mmc1, emmc is mmc0.
Quick start: youyeetoo. com/blog/bpi-m5-bp0039-112.
FAQ:
https(: )//forum. youyeetoo. com/t/bpi-m5-m2-pro-data-summary/89 If you need support or bulk inquiries, please contact me. charles @ youyeetoo. com
