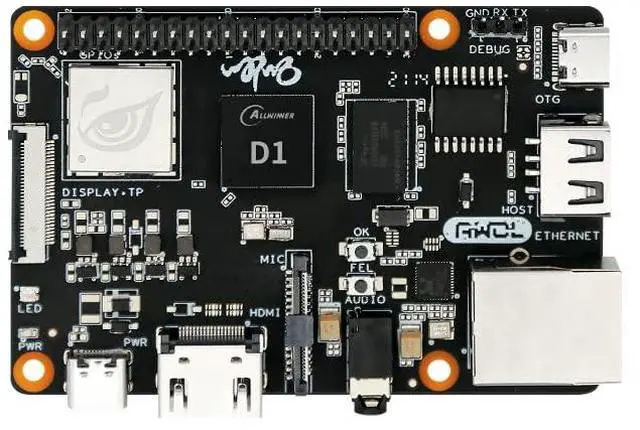

    Sipeed Nezha 64bit RISC-V Linux SBC Board Allwinner [email protected] with 1GByte DDR3 256MByte Nand Flash Support Tina/Debian System(Standard kit)

    Be the first to review this product...
    • Nezha is based on Allwinner's newest RISC-V chip, D1 @1.0GHz(T-Head XuanTie C906 core), with 1GByte DDR3 and 256MByte onboard Nand Flash. It has basic resources and environments that allow you to research RV64 features on itself, just like a desktop PC.; Nezha has most of the peripherals you need in IoT applications: MIPI LCD, HDMI, USB, ETH, SPI/UART/IIC/PWM/LEDC/IIS/GPIOs.You can build your projects easily and quickly.; Nezha has an open-source SDK thus that will allow us to port Debian Desktop System to it, and we can test many popular program environments on it: C/C++, JS, WASM, Rust, GoLang, Python, etc.; Encoding JPEG/MJPEG up to 1080p60,Audio 3.5mm audio jack, digital audio output via HDMI, a connector for Microphone Array board,Connectivity Gigabit Ethernet via RTL8211F PHY, 2.4GHz WiFi 4 & Bluetooth module via XR829 module.; SoC Allwinner D1 single-core XuanTie C906 64-bit RISC-V processor @ 1.0 GHz with HiFi4 DSP, G2D 2D graphics accelerators, Memory 1GB DDR3 memory Storage 256MB SPI NAND flash, MicroSD card slot.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Product description RV Dock 1GB RV Dock 512MB Buying Options Buying Options Customer Reviews 4.2 out of 5 stars 6 DRAM 1GB 512MB storage TF card Slot ( on the CM board ) TF card Slot ( on the CM board ) Characteristic CPU XuanTie C906 RISC-V 64bit DRAM 512 MByte DDR3 Display HDMl Up to 4K@30fps *RGB 720P@30fps, *MIPl1080P@60fps* (Equipped With Display Shell ) Wireless RTL8723DS 2.4G Wi-Fi+BT 4.22. 4G Antenna USB USB-A Hostx1, USB-COTGx1 ( On the CM board ) Audio 3w Audio PA ( For Speaker ) x1Analog Mic x1 storage TF card Slot ( on the CM board )

    Micarry Support our R6 Micarray Board ( 6 MEMS Mics include ) GPIO 2x20P 2.54 mm headers on the Dock includes GPIO & Power Other wS2812 RGB LEDx1, Reset Key x1, User ( ADC) Key x1 Dimensions 65.0 mm x 40.0 mm Support If you have any questions, you can also leave a message. At the same time, we have a research and development team that can provide customized services.
    Communication and customized consulting: am2 @ youyeetoo. com [Wiki] wiki. sipeed. com/hardware/en/lichee/RV/Dock. html
