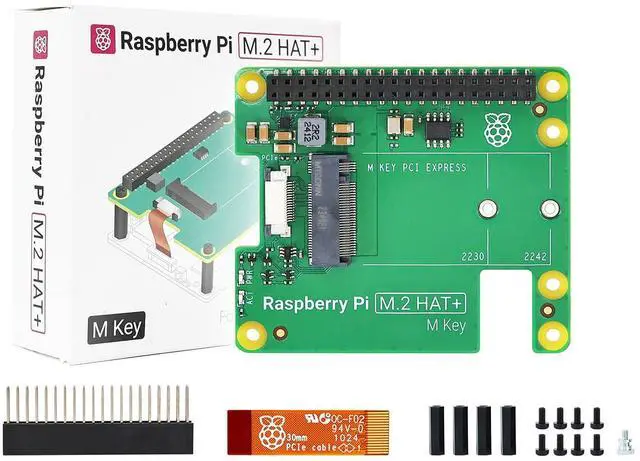

Raspberry Pi5 M.2 HAT+ PCIE Expand Board Supports NVMe Protocol SSD, High-Speed Reading/Writing (Standard Kit)
- RPi 5 M.2 HAT+ is a PCIe to M.2 SSD expansion board designed specifically for the Raspberry Pi 5. It allows you to connect an M.2 NVMe SSD to the Raspberry Pi 5's PCIe 2.0 slot, expanding storage capacity or booting the system from the NVMe SSD.; Standard Kit supports the installation of the official active cooler and includes mounting holes. Note: Ensure correct cable connections; otherwise, the expansion board may be damaged. Compact Kit features a compact layout and can be stacked with the official Pi 5 case. It does not support the Pi 5 active cooler.; Standard Kit is compatible with 2230/2242 form factor M.2 SSDs, supports the M.2 NVMe SSD protocol and Gen2/Gen3 modes, and supports booting the Pi 5 from the SSD. Compact Kit only supports 2230 form factor SSDs.; The M.2 HAT+ adapter board converts the PCIe interface on the Raspberry Pi 5 to an M.2 M-Key interface.; The M.2 HAT+ can provide up to 3A of current. It uses the Raspberry Pi HAT+ specification, so Raspberry Pi OS can automatically detect the HAT+ and its connected devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

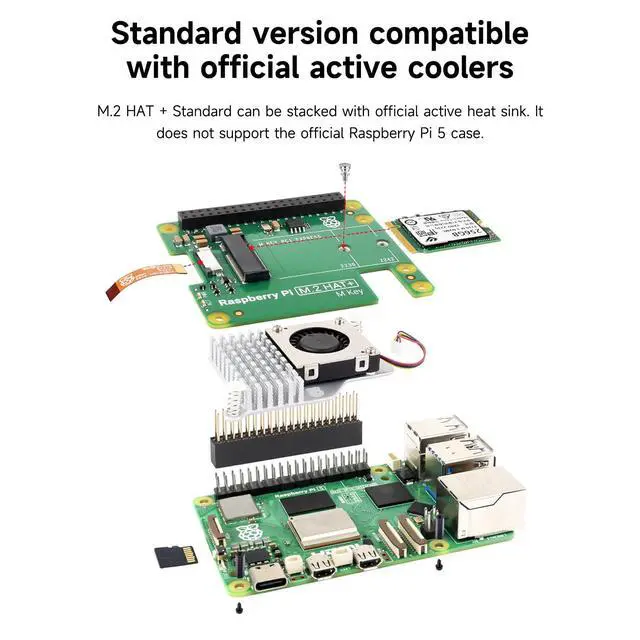

RPi 5 M. 2 HAT+ is a PCIe to M. 2 SSD expansion board designed specifically for the Raspberry Pi 5. It allows you to connect an M. 2 NVMe SSD to the Raspberry Pi 5's PCIe 2.0 slot, expanding storage capacity or booting the system from the NVMe SSD.; Standard Kit supports the installation of the official active cooler and includes mounting holes.

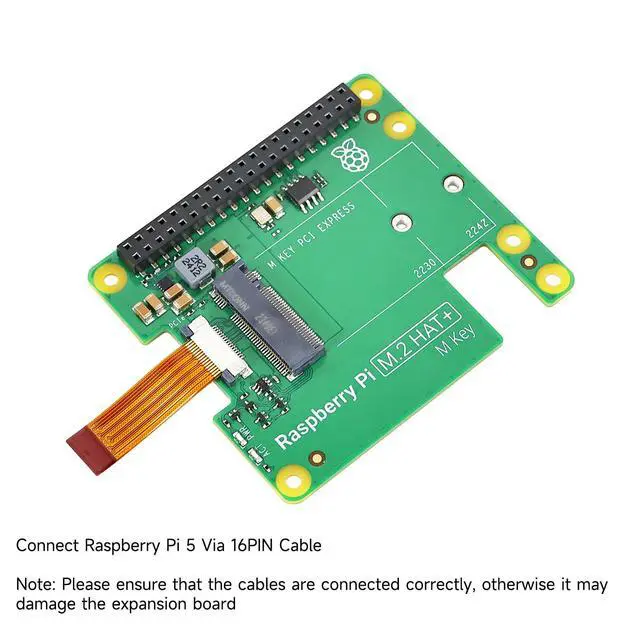

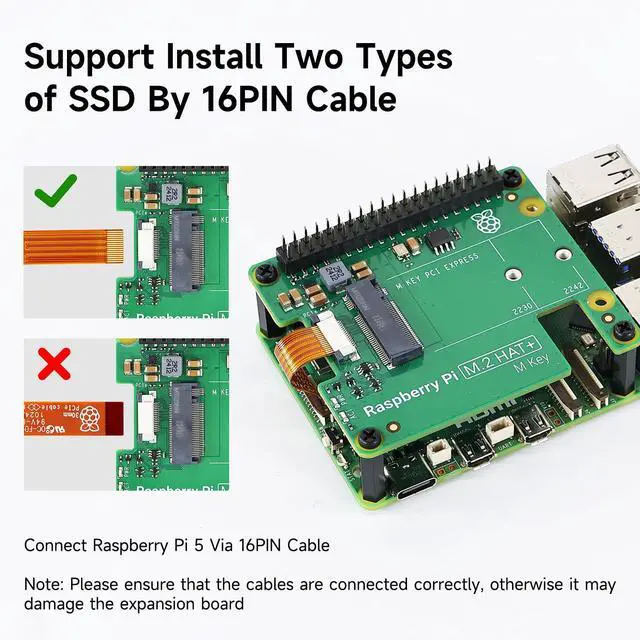

Note: Ensure correct cable connections; otherwise, the expansion board may be damaged. Compact Kit features a compact layout and can be stacked with the official Pi 5 case. It does not support the Pi 5 active cooler.; Standard Kit is compatible with 2230/2242 form factor M. 2 SSDs, supports the M. 2 NVMe SSD protocol and Gen2/Gen3 modes, and supports booting the Pi 5 from the SSD. Compact Kit only supports 2230 form factor SSDs.; The M. 2 HAT+ adapter board converts the PCIe interface on the Raspberry Pi 5 to an M. 2 M-Key interface.; The M. 2 HAT+ can provide up to 3A of current. It uses the Raspberry Pi HAT+ specification, so Raspberry Pi OS can automatically detect the HAT+ and its connected devices
Note: Ensure correct cable connections; otherwise, the expansion board may be damaged. Compact Kit features a compact layout and can be stacked with the official Pi 5 case. It does not support the Pi 5 active cooler.; Standard Kit is compatible with 2230/2242 form factor M. 2 SSDs, supports the M. 2 NVMe SSD protocol and Gen2/Gen3 modes, and supports booting the Pi 5 from the SSD. Compact Kit only supports 2230 form factor SSDs.; The M. 2 HAT+ adapter board converts the PCIe interface on the Raspberry Pi 5 to an M. 2 M-Key interface.; The M. 2 HAT+ can provide up to 3A of current. It uses the Raspberry Pi HAT+ specification, so Raspberry Pi OS can automatically detect the HAT+ and its connected devices
