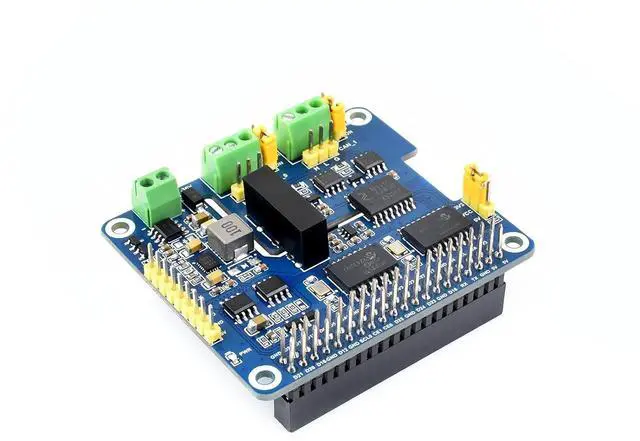

2-Channel Isolated CAN Bus Expansion HAT Compatible with Raspberry Pi 5/4B/3B+/Zero/Zero W/Zero WH/Jetson Nano,2-CH CAN HAT with MCP2515 + SN65HVD230 Dual Chips Solution

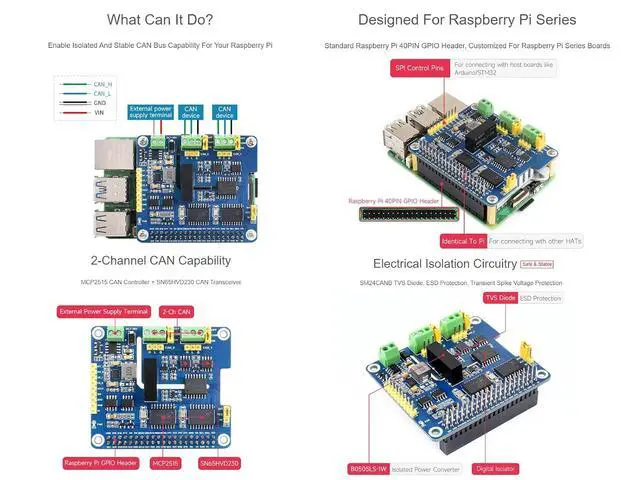

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards / Jetson Nano. Comes with online development resources and manual (examples in Python/C); Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication. Breakout SPI and I2C control pins, for connecting with other host control boards; Onboard unibody power supply isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal. Onboard digital isolator, signal isolation makes the communication more safe and stable, and better anti-interference; Onboard external power supply terminal, supports 736V wide voltage power input, supports powering the Pi and the HAT at the same time.

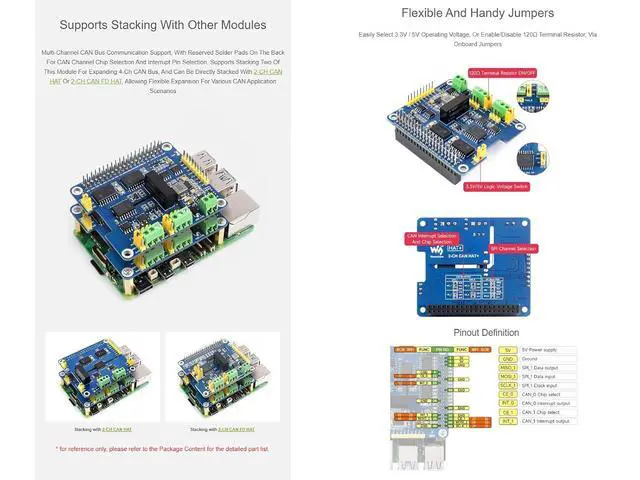

Onboard SM24CANB TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection; Onboard voltage translator, select 3.3V /5V operating voltage by jumper. Onboard 120 terminal resistor, configured by jumper
