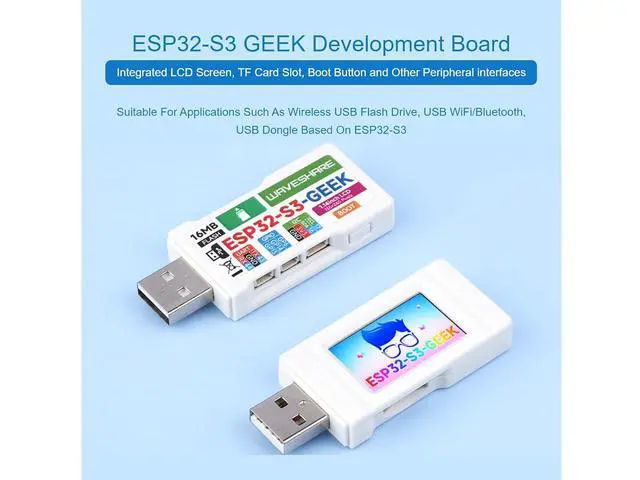

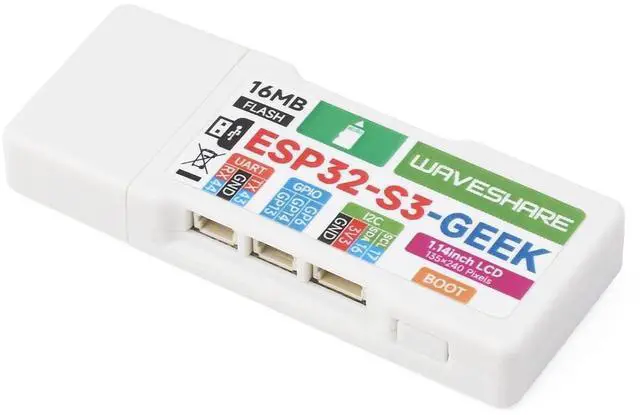

    ESP32-GEEK Development Board Based On ESP32-S3R2 Controller Chip,with 1.14inch 65K Color LCD,Supports WiFi and BLE 5,USB-A,I2C,UART Port,GPIO Header

    Be the first to review this product...
    • ESP32-GEEK Mini Development,Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz; Built in 512KB SRAM, 384KB ROM, 2MB of on-chip PSRAM, and onboard 16MB Flash memory.Onboard 1.14inch 240×135 pixels 65K color IPS LCD display; Integrated 2.4GHz WiFi and Bluetooth LE wireless communication.WiFi supports Infrastructure BSS in Station, SoftAP, and Station + SoftAP modes.WiFi supports 1T1R mode with data rate up to 150 Mbps.Bluetooth supports high power mode (20dBm).Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna; Onboard 3PIN UART port, 3PIN GPIO header and 4PIN I2C port.Equipped with plastic case and cables; Provides online open-source demo and resources, more convenient for learning and development
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

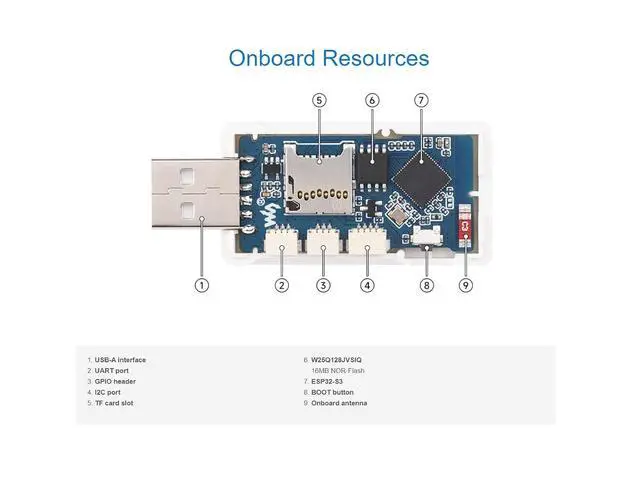

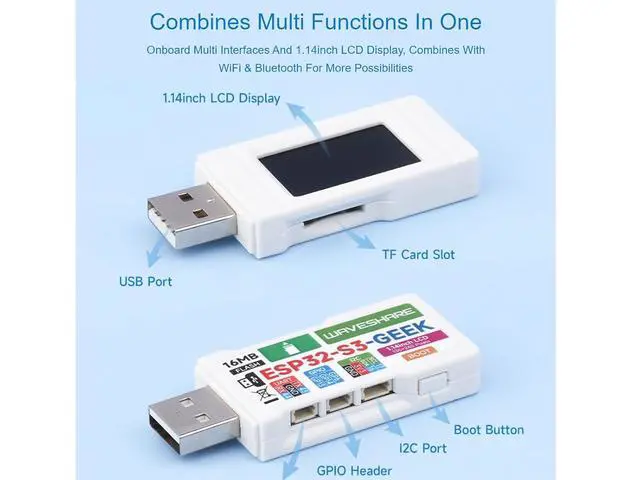

    ESP32-GEEK Mini Development, Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz; Built in 512KB SRAM, 384KB ROM, 2MB of on-chip PSRAM, and onboard 16MB Flash memory. Onboard 1.14 inch 240×135 pixels 65K color IPS LCD display; Integrated 2.4GH z WiFi and Bluetooth LE wireless communication. WiFi supports Infrastructure BSS in Station, SoftAP, and Station + SoftAP modes. WiFi supports 1T1R mode with data rate up to 150 Mbps. Bluetooth supports high power mode (20dBm). Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna; Onboard 3PIN UART port, 3PIN GPIO header and 4PIN I2C port.

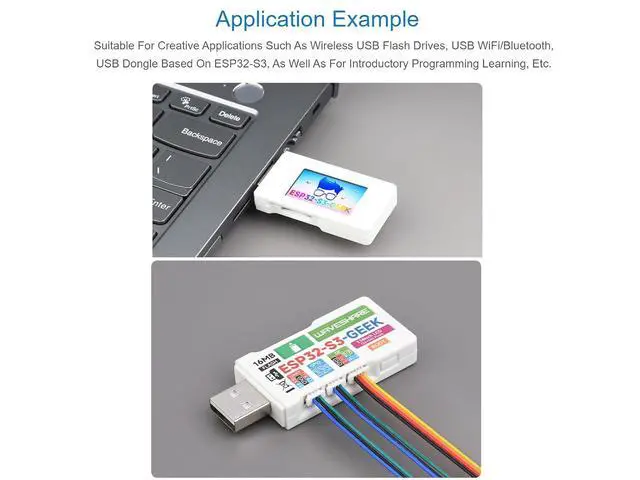

    Equipped with plastic case and cables; Provides online open-source demo and resources, more convenient for learning and development
